Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the accelerator pedal sensor electrical connector.

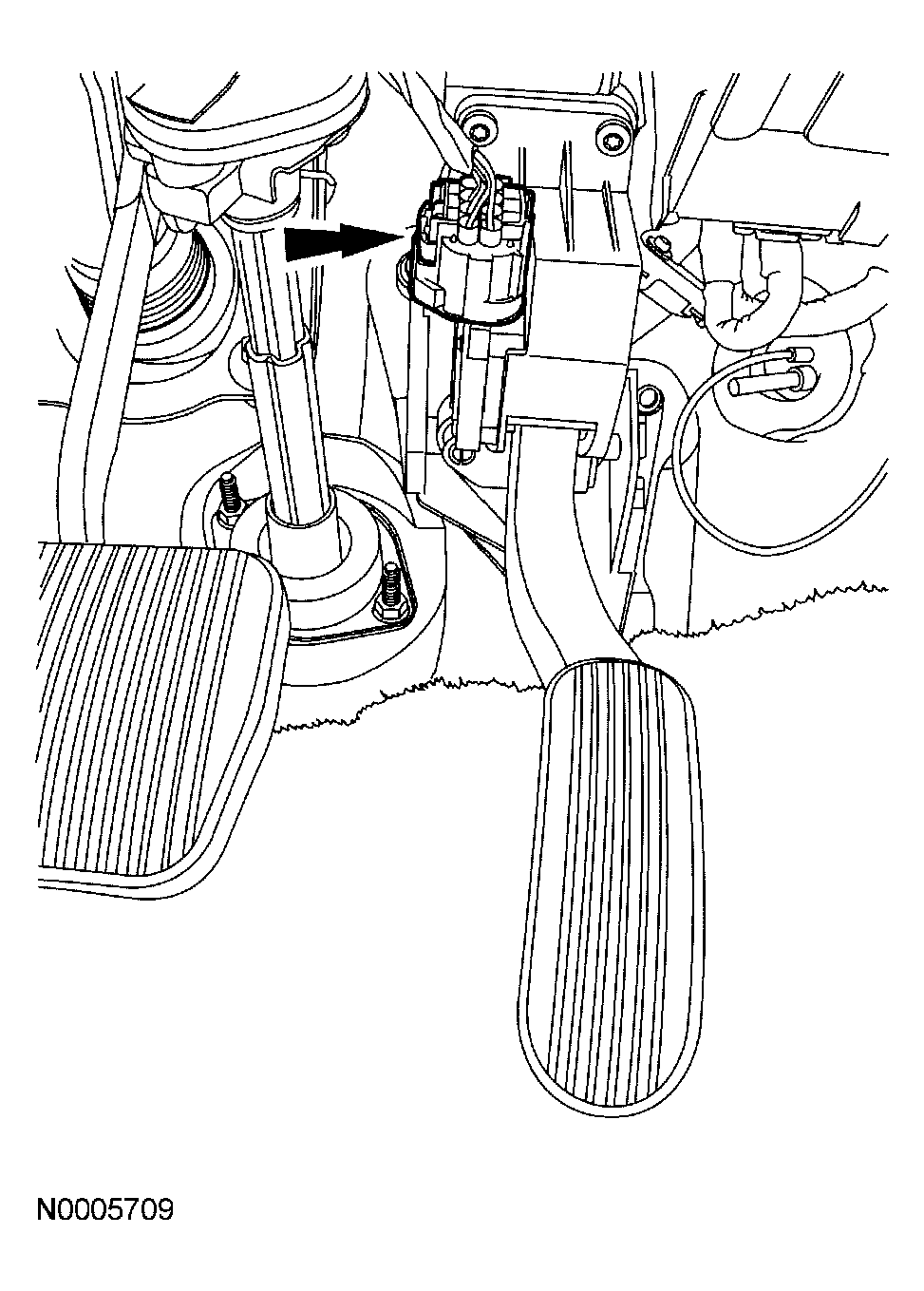

    Fig 1: Disconnecting Accelerator Pedal Sensor Electrical Connector
    G03883111Courtesy of FORD MOTOR CO.
  3. Remove the two bolts and the accelerator pedal assembly.

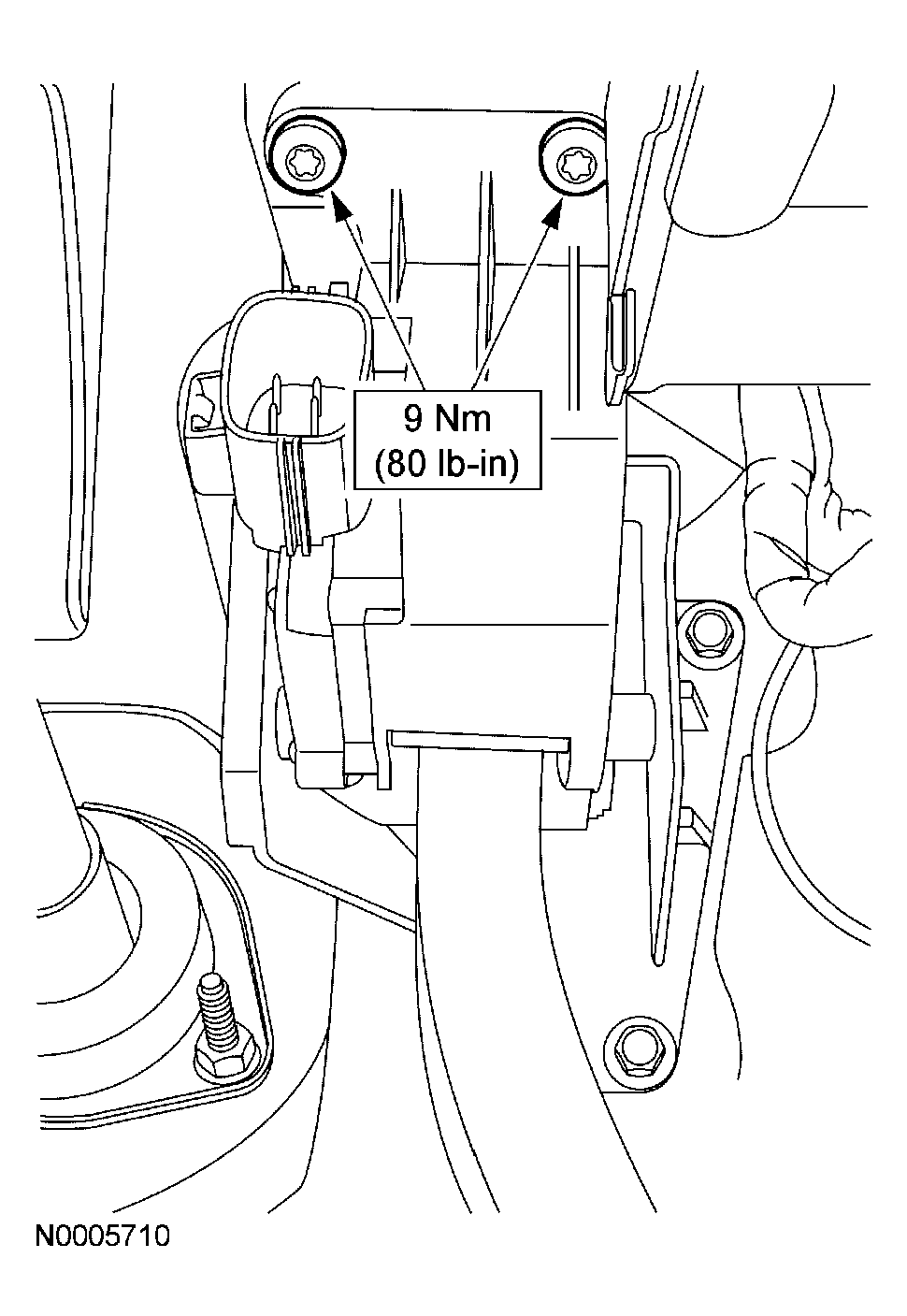

    Fig 2: Removing Accelerator Pedal Assembly
    G03883112Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
