Upper Intake Manifold: Material

ITEM SPECIFICATION

Item Specification
Threadlock and Sealer TA-25 WSK-M2G351-A5
Fig 1: Identifying Upper Intake Manifold Components (1 Of 3)
G03990078Courtesy of FORD MOTOR CO.

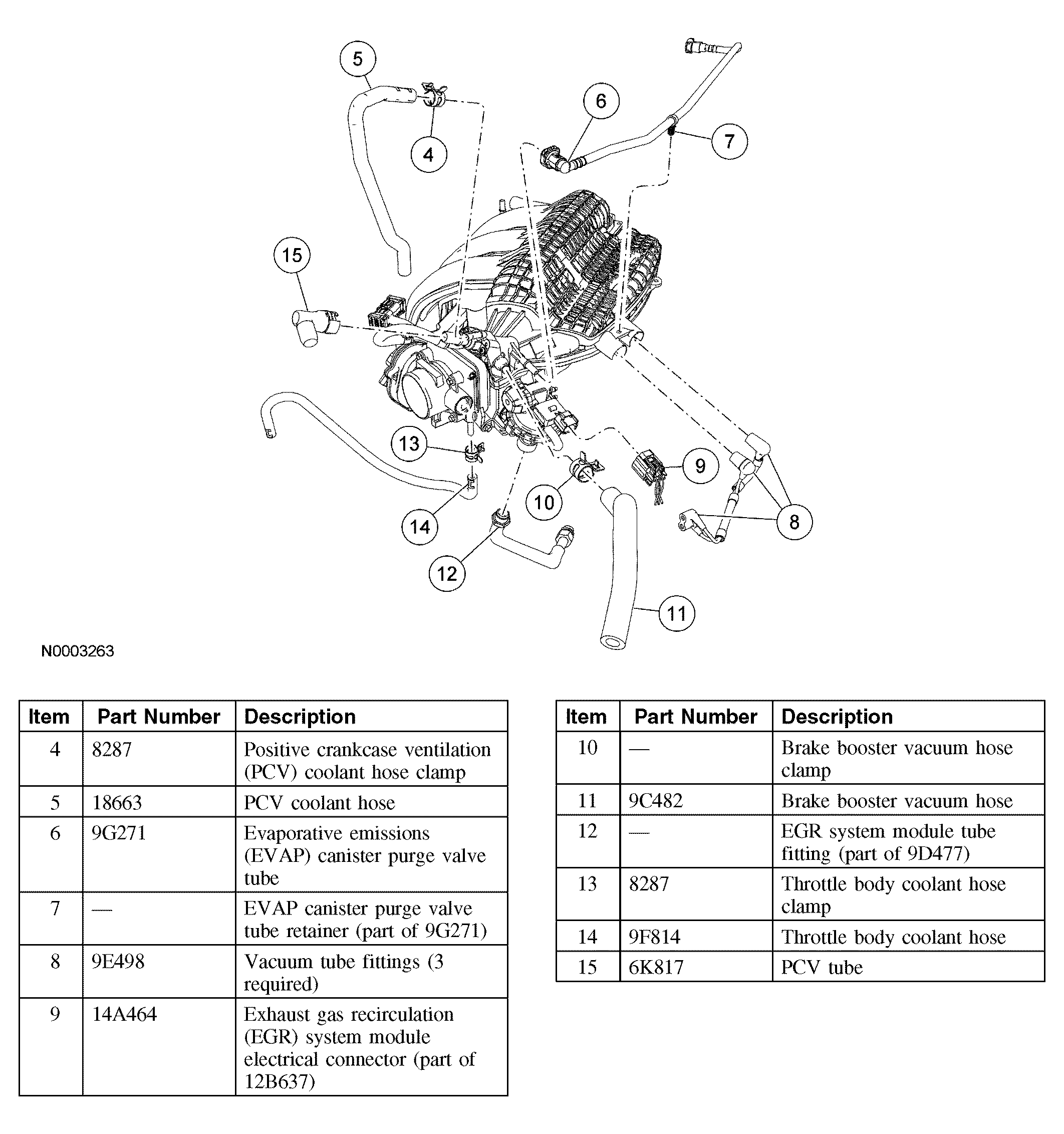

Fig 2: Identifying Upper Intake Manifold Components (2 Of 3)
G03990079Courtesy of FORD MOTOR CO.

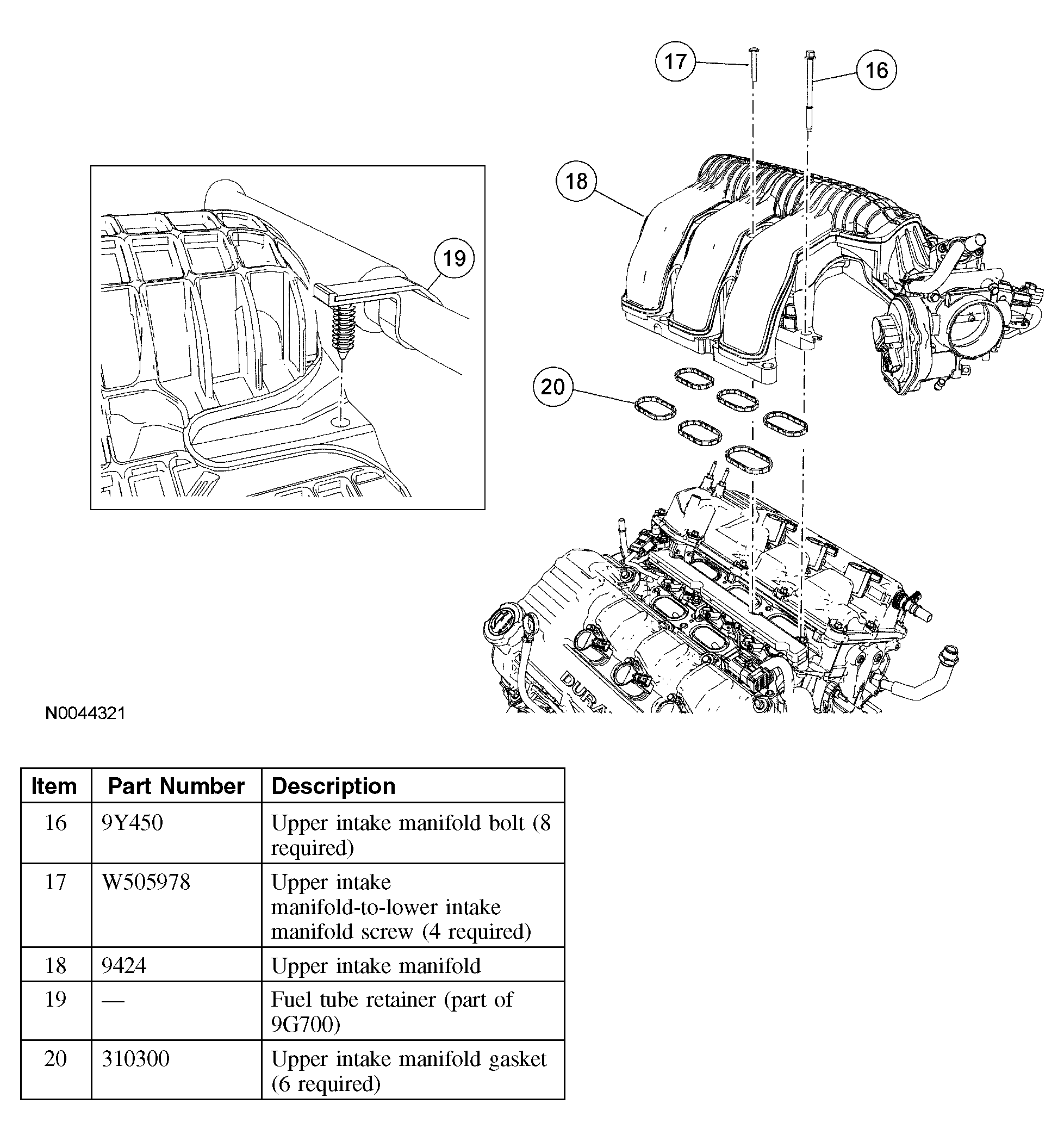

Fig 3: Identifying Upper Intake Manifold Components (3 Of 3)
G03990080Courtesy of FORD MOTOR CO.
