Throttle Body: Notes

CAUTION: The electronic throttle body is serviced as a complete assembly. Individual components cannot be serviced.

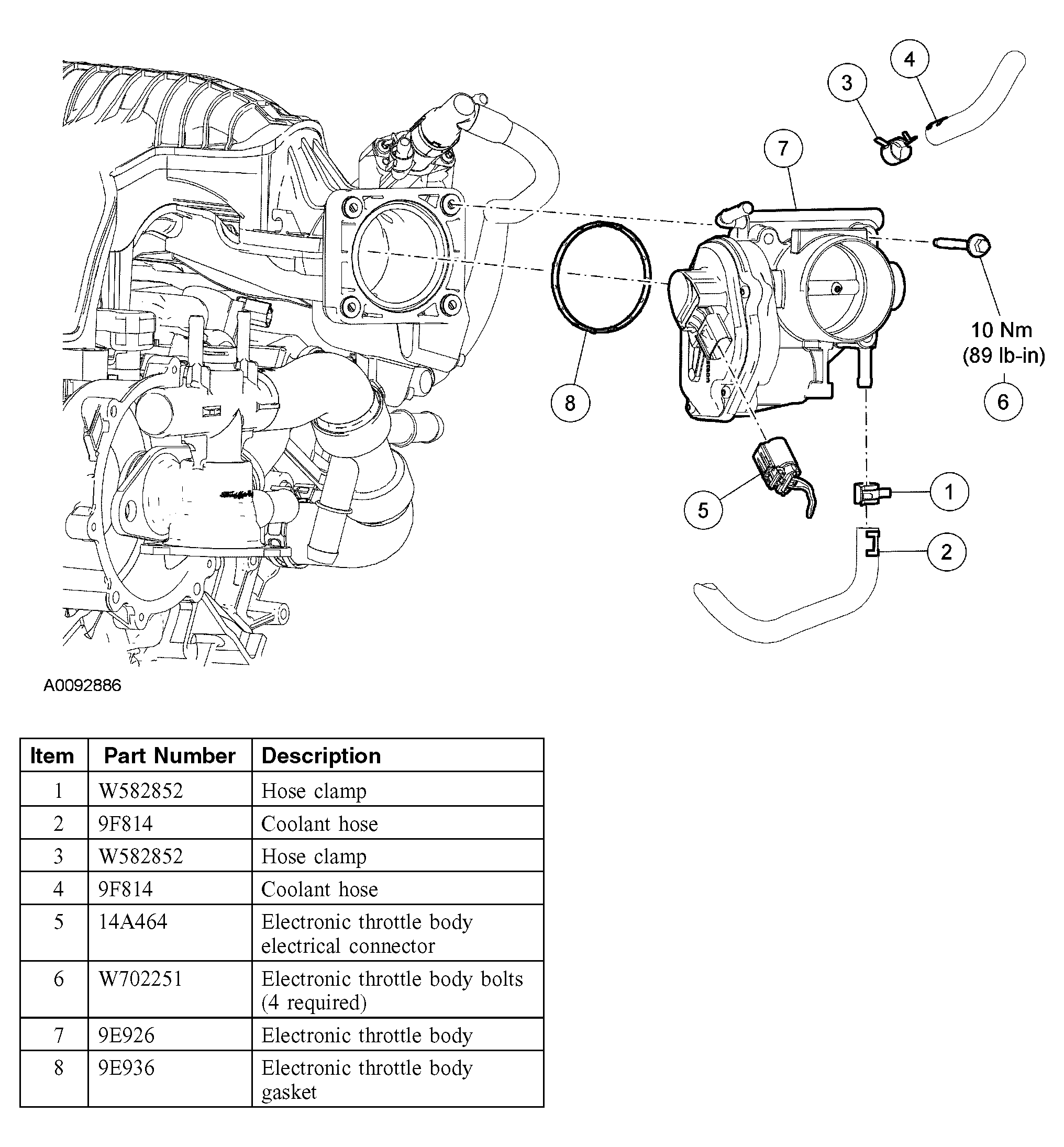

Fig 1: Removing/Installing Throttle Body

Courtesy of FORD MOTOR CO.
