Removal and Installation

  1. Disconnect the accelerator pedal cable.
    1. Position the accelerator pedal to relieve tension on the accelerator cable.
    2. Depress the tabs on the accelerator pedal retaining pin and disconnect the cable.

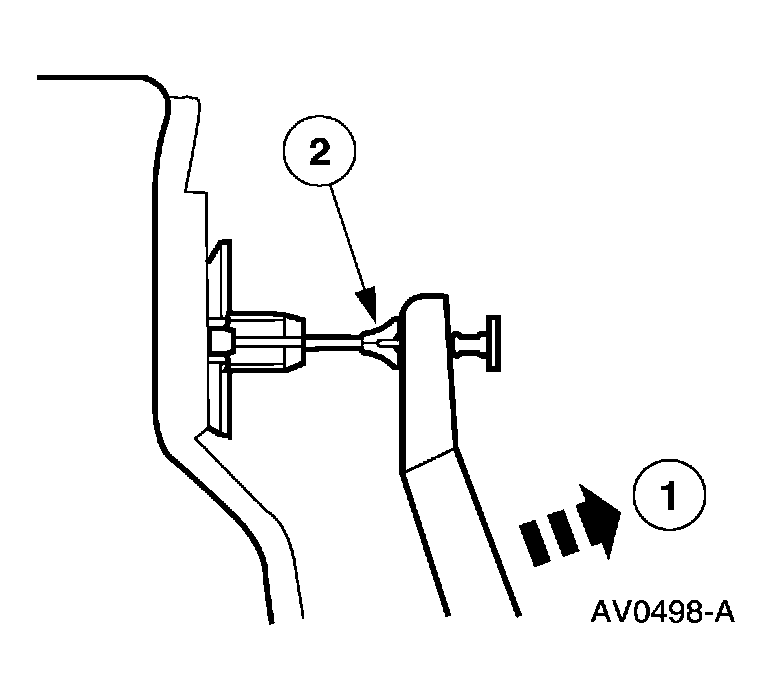

    Fig 1: Disconnecting Accelerator Pedal Cable
    G03957667Courtesy of FORD MOTOR CO.
  2. Remove the accelerator pedal.
    • Remove the nuts.
    • Remove the accelerator pedal assembly.

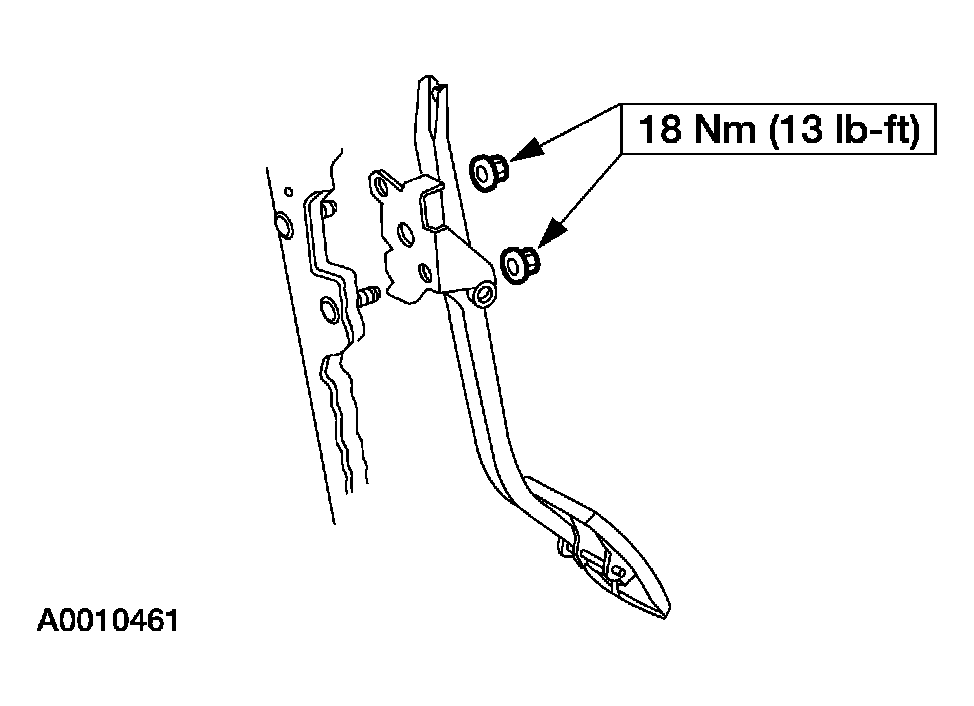

    Fig 2: Removing Accelerator Pedal Nuts - With Torque Specification
    G03957668Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
