Transaxle Support Insulator: Installation

  1. Install the engine and transaxle support insulator and bolts.

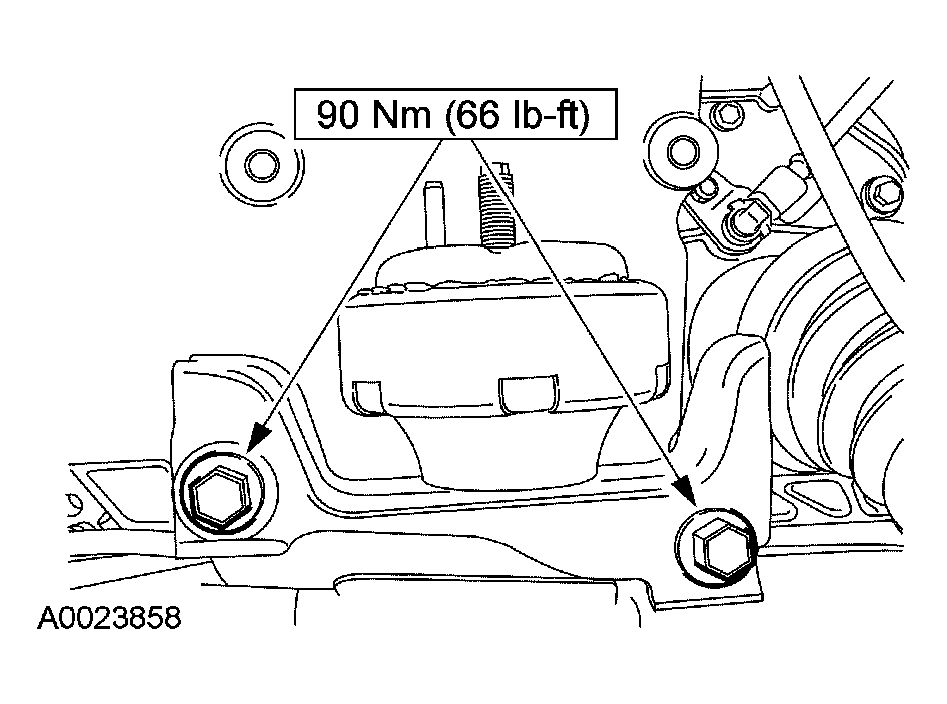

    Fig 1: Installing Transaxle Support Insulator Bolts - With Torque Specification
    G03956855Courtesy of FORD MOTOR CO.
  2. Install the engine and transaxle upper support bracket bolts and bracket.

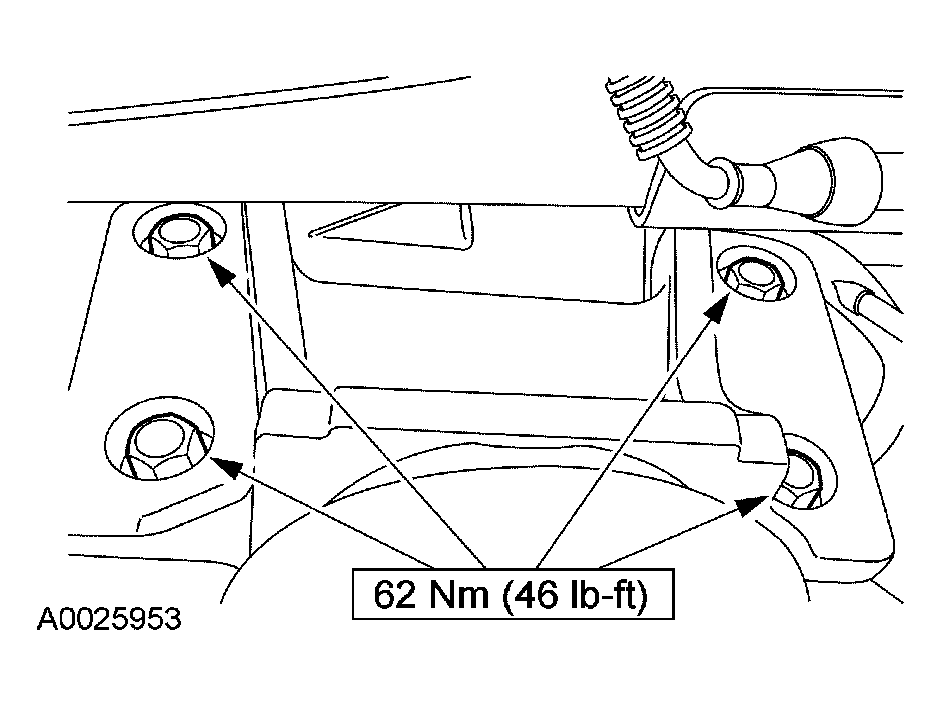

    Fig 2: Installing Transaxle Upper Support Bracket Bolts - With Torque Specification
    G03956856Courtesy of FORD MOTOR CO.
  3. Install the engine and transaxle upper support insulator nut.

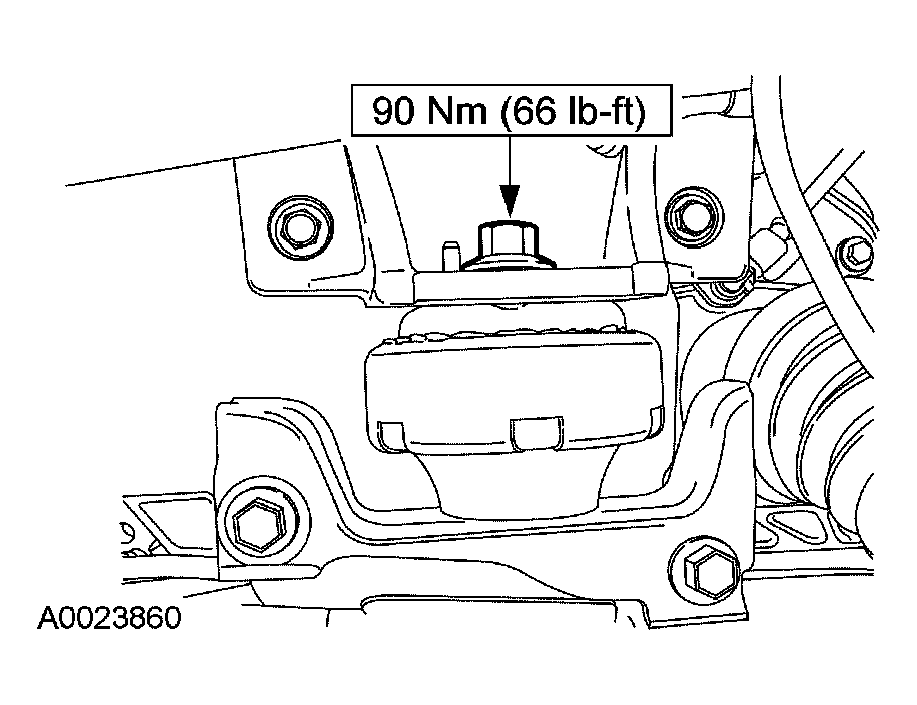

    Fig 3: Installing Transaxle Upper Support Insulator Nut - With Torque Specification
    G03956857Courtesy of FORD MOTOR CO.
  4. Remove the high-lift transmission jack.
  5. Install the LH wheel and tire.
  6. Lower the vehicle.
