Oil Pump: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Engine Lift Bracket Set | 303-D095 (D94L-6001-A) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

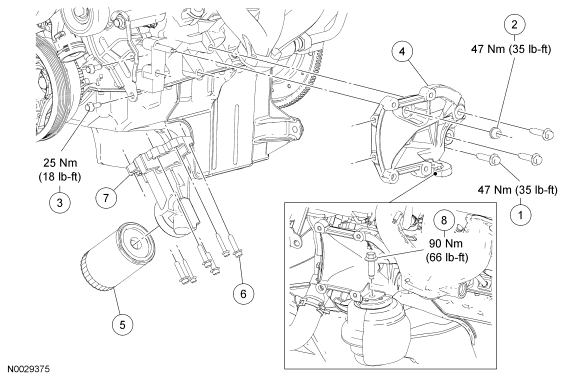

| Item | Part Number | Description |
|---|---|---|
| 1 | N605921 | A/C compressor bracket bolt (3 required) |
| 2 | N802001 | A/C compressor bracket nut |
| 3 | N605905 | A/C compressor bracket brace bolt (2 required) |
| 4 | 19D624 | A/C compressor bracket |
| 5 | 6731 | Oil filter |
| 6 | 6019 | Oil filter housing bolt (6 required) |
| 7 | 6019 | Oil filter housing |
| 8 | W500643 | LH motor mount bolt |
