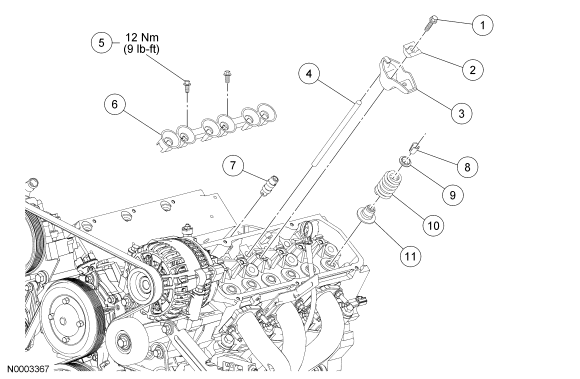

Valve Train Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | N808305 | Rocker arm bolt (12 required) |
| 2 | 6A528 | Rocker arm pivot (12 required) |
| 3 | 6564 | Rocker arm (12 required) |
| 4 | 6565 | Push rod (12 required) |
| 5 | - | Tappet guide plate bolt (4 required) (part of 6K564) |
| 6 | 6K564 | Tappet guide plate (2 required) |
| 7 | 6500 | Valve tappet (12 required) |
| 8 | 6518 | Valve spring retainer key (24 required) |
| 9 | 6514 | Valve spring retainer (12 required) |
| 10 | 6513 | Valve spring (12 required) |
| 11 | 6A517 | Valve stem seal |
- For additional information, refer to the following procedures.
