Transaxle Support Insulator: Notes

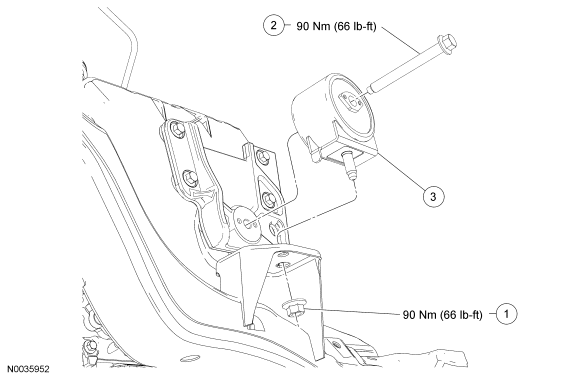

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications
GF0033430Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705605 Transmission support insulator nut
2 W500752 Transmission support insulator bolt
3 6F063 Transmission support insulator
