Home >> Mercury >> 2009 >> Sable Base, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Audio Control Module Connector >> Audio Control Module Connector End View - C240A

Audio Control Module Connector End View - C240A

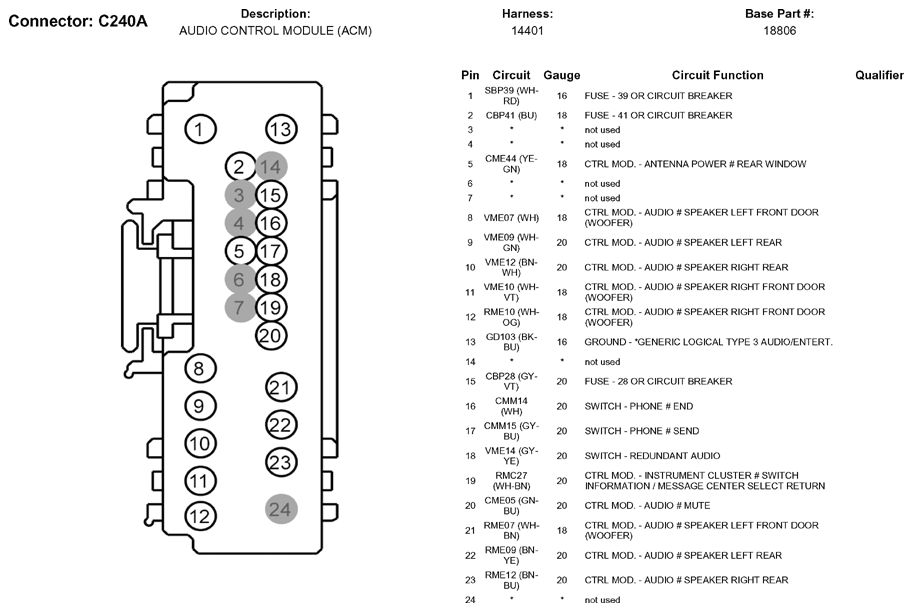

Fig 1: Audio Control Module Connector End View (C240A)

G05789961

Courtesy of FORD MOTOR CO.
