Selector Lever: Installation

  1. Install the selector lever and the 4 selector lever bolts.
    • Tighten to 11 Nm (8 lb-ft).

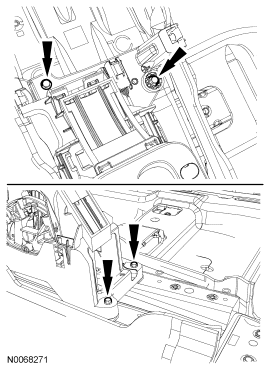

    2. Fig 1: Identifying Bolts
    GF0045858Courtesy of FORD MOTOR CO.
  2. Install the LH and RH plastic retaining clips.

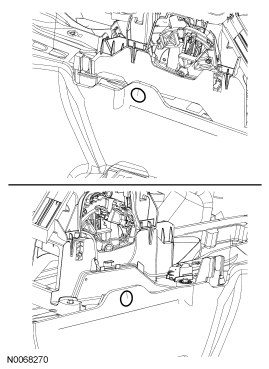

    3. Fig 2: Identifying Retaining Clips
    GF0045857Courtesy of FORD MOTOR CO.
  3. Connect the wire harness retainers on the selector lever.
    4. Fig 3: Identifying Retainers
    GF0045856Courtesy of FORD MOTOR CO.
  4. Connect the electrical connector.
    5. Fig 4: Identifying Connector
    GF0045855Courtesy of FORD MOTOR CO.
  5. Install the selector lever cable on the selector lever.
    6. Fig 5: Identifying Tabs
    GF0045848Courtesy of FORD MOTOR CO.
  6. Connect the selector lever cable end to the selector lever.
    7. Fig 6: Identifying Selector Lever Cable End
    GF0045847Courtesy of FORD MOTOR CO.
  7. Install the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
  8. Check the selector lever cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. If an adjustment is necessary, refer to Selector Lever Cable Adjustment .
