Control Units

CONTROL UNITS LOCATION

Component	Location

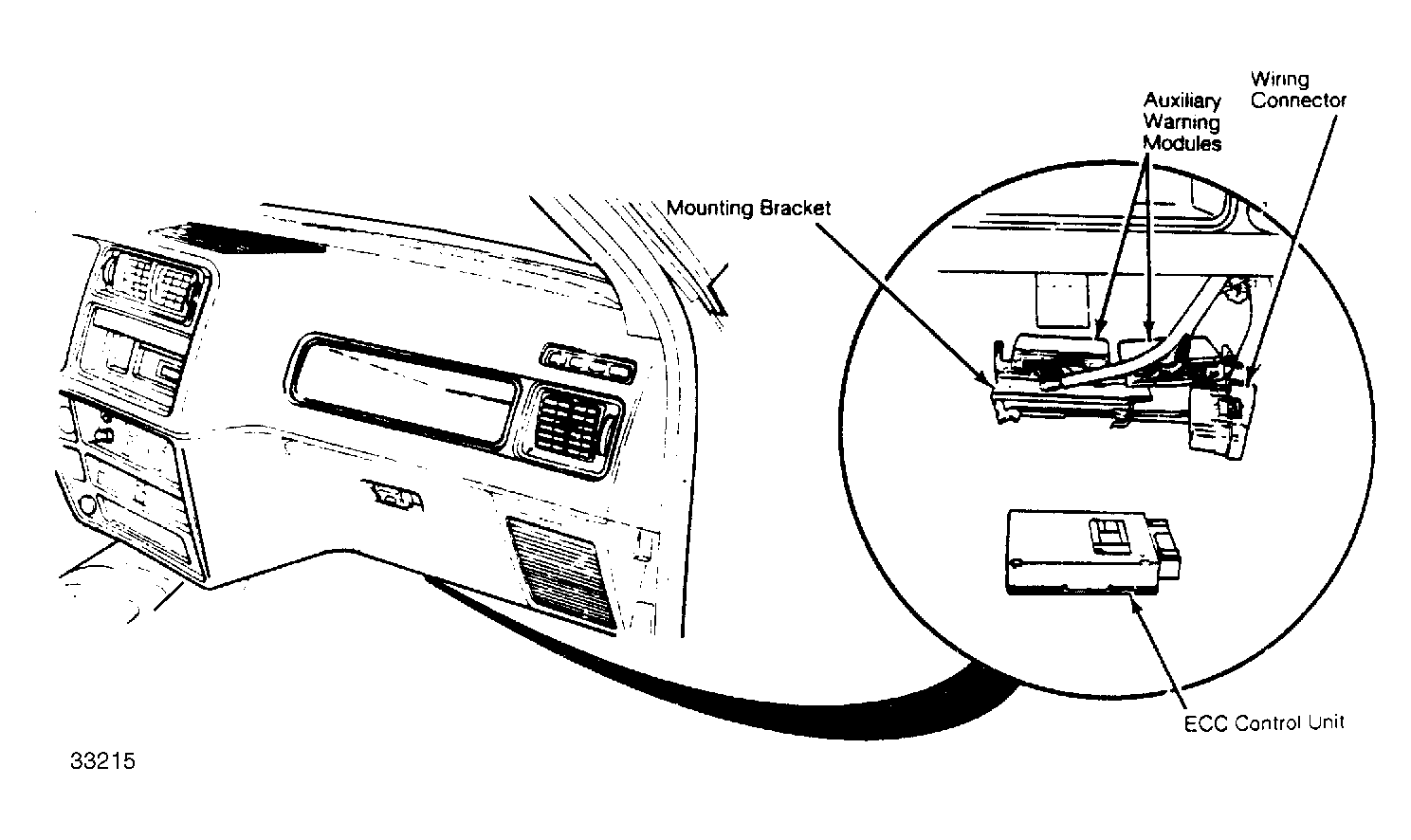

EEC Control Unit	In passenger compartment, under cowl vent on right side. See Figure.

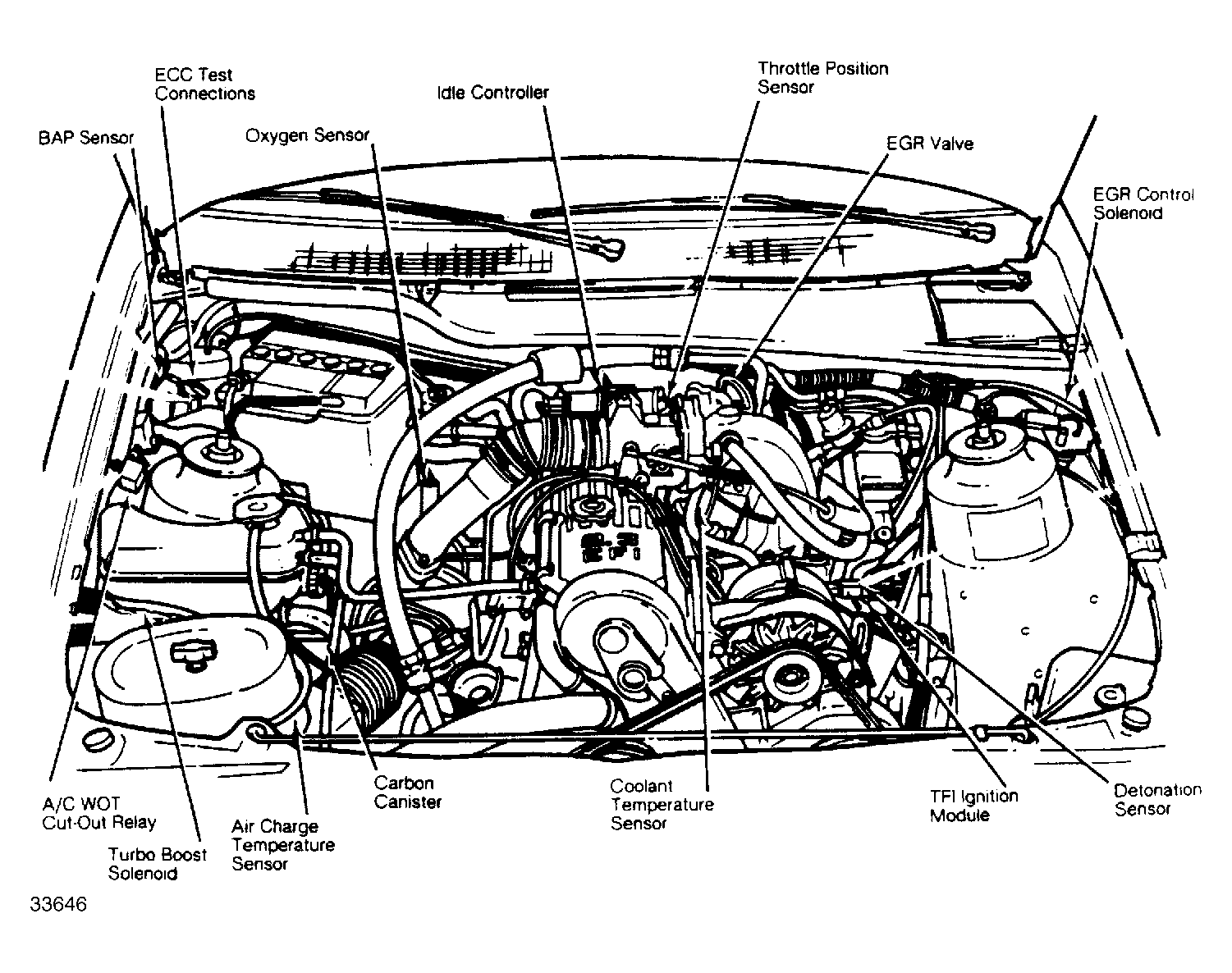

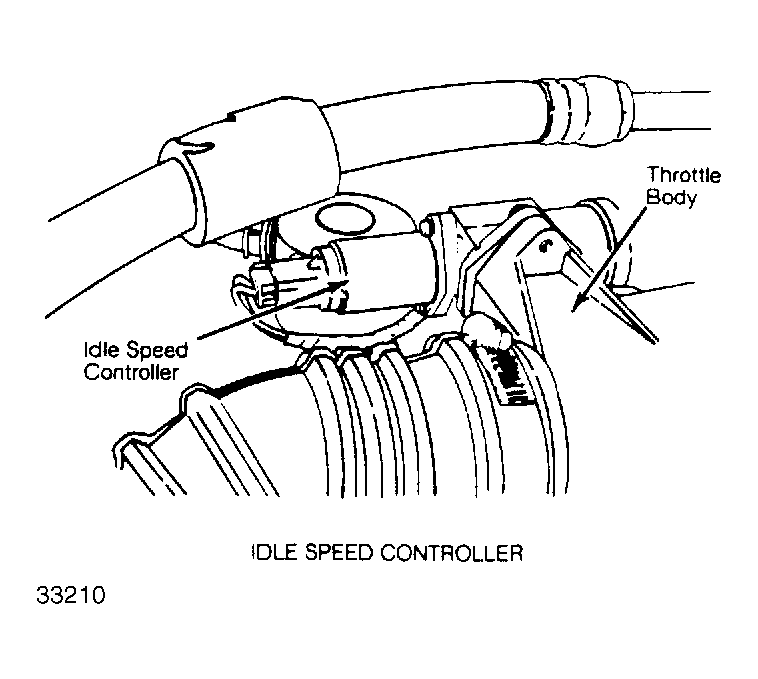

Idle Speed Controller	On left side of engine. See Figure & Figure .
