Repair and Diagnosis: Electrical: Starter: Overhaul: Disassembly

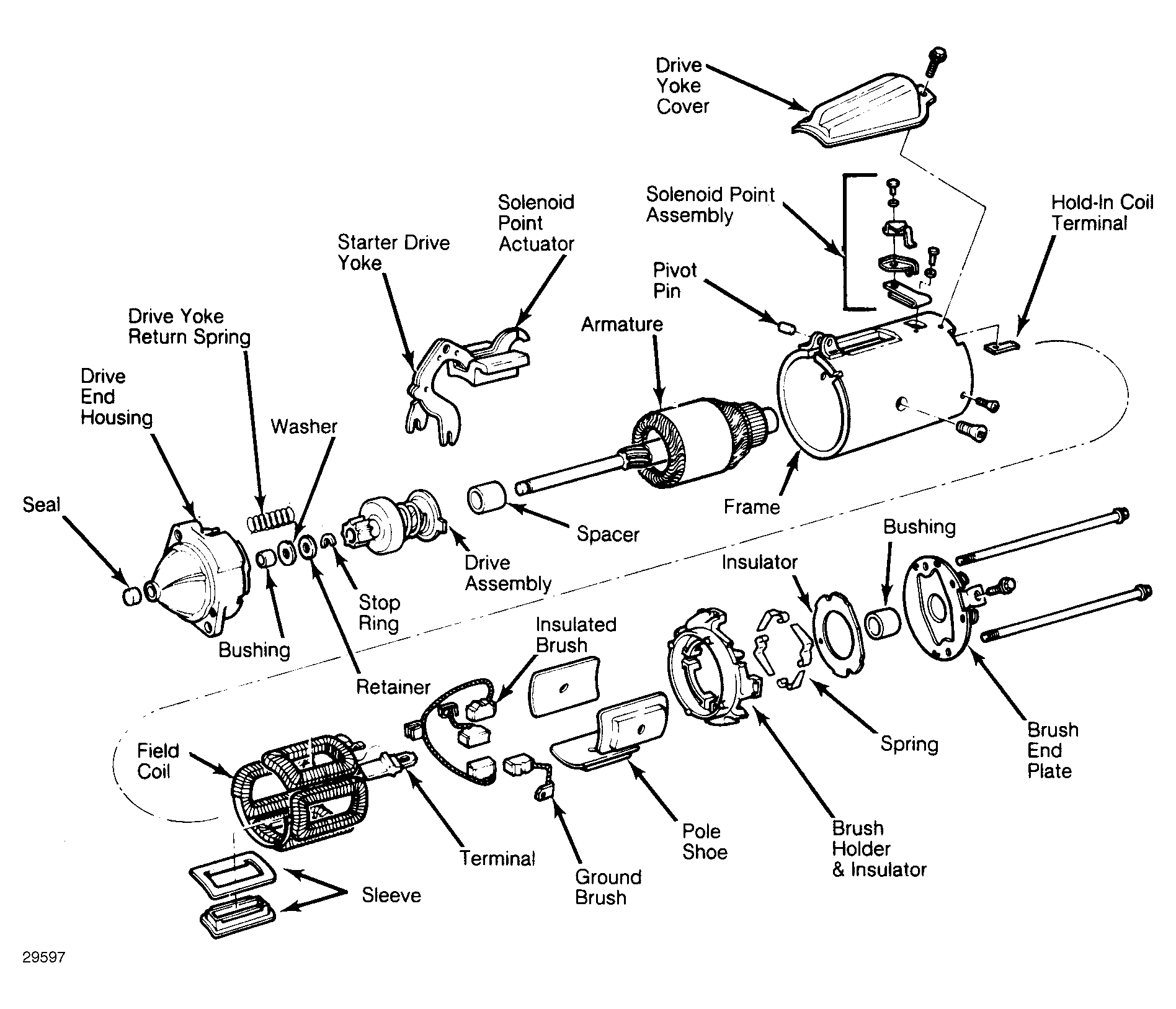

- Remove cover screw, cover, through bolts, starter drive end housing, and starter drive plunger lever return spring. Remove starter gear plunger lever pivot pin and lever. Slide armature out.
- Remove stop ring retainer, thrust washer, and stop ring from armature shaft. Remove starter drive gear assembly. Remove brush end plate and insulator assembly. Remove brushes from plastic brush holder and lift out holder. Note location of brush holder with respect to end terminal.
- Remove screws retaining ground brushes to frame. Bend up the edges of the sleeve which is inserted in rectangular hole in frame. Remove sleeve and retainer. Detach shunt field coil ground wire from copper tab riveted to frame.
- Remove the 3 pole shoe retaining screws with Starter Polescrew Tool (10044-A) and an arbor press. Cut the field coil connection at the switch post lead. Remove pole shoes and coils from frame. Cut the positive brush leads from the field coils as close to the field connection point as possible.
