Operational Check

Lower fuel tank and disconnect fuel pump electrical connector. Connect jumper wire between ground terminal of fuel pump to good body ground point. Connect another jumper wire from fuel pump power supply terminal to alternator output terminal. See Fig 1 . Pump should run. If not, replace pump.

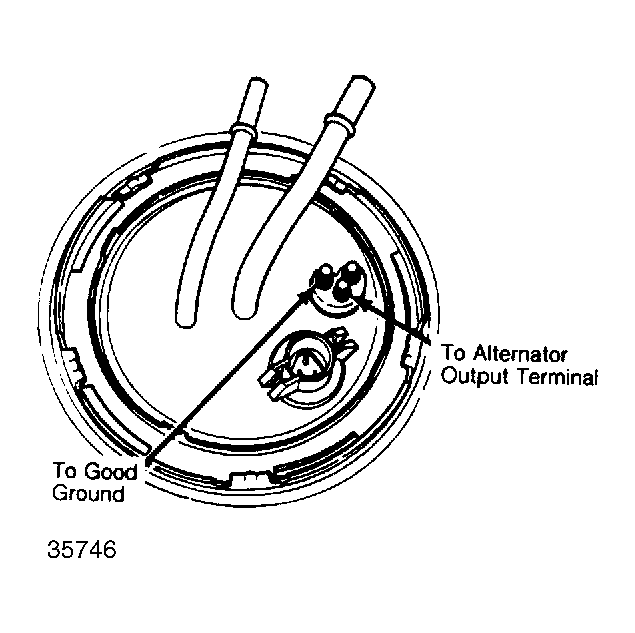

Fig 1: Low-Pressure Pump Operational Check Connect jumper wire to alternator output terminal last.
