Fuel Injection System - BOSCH AFC: Wiring Diagram

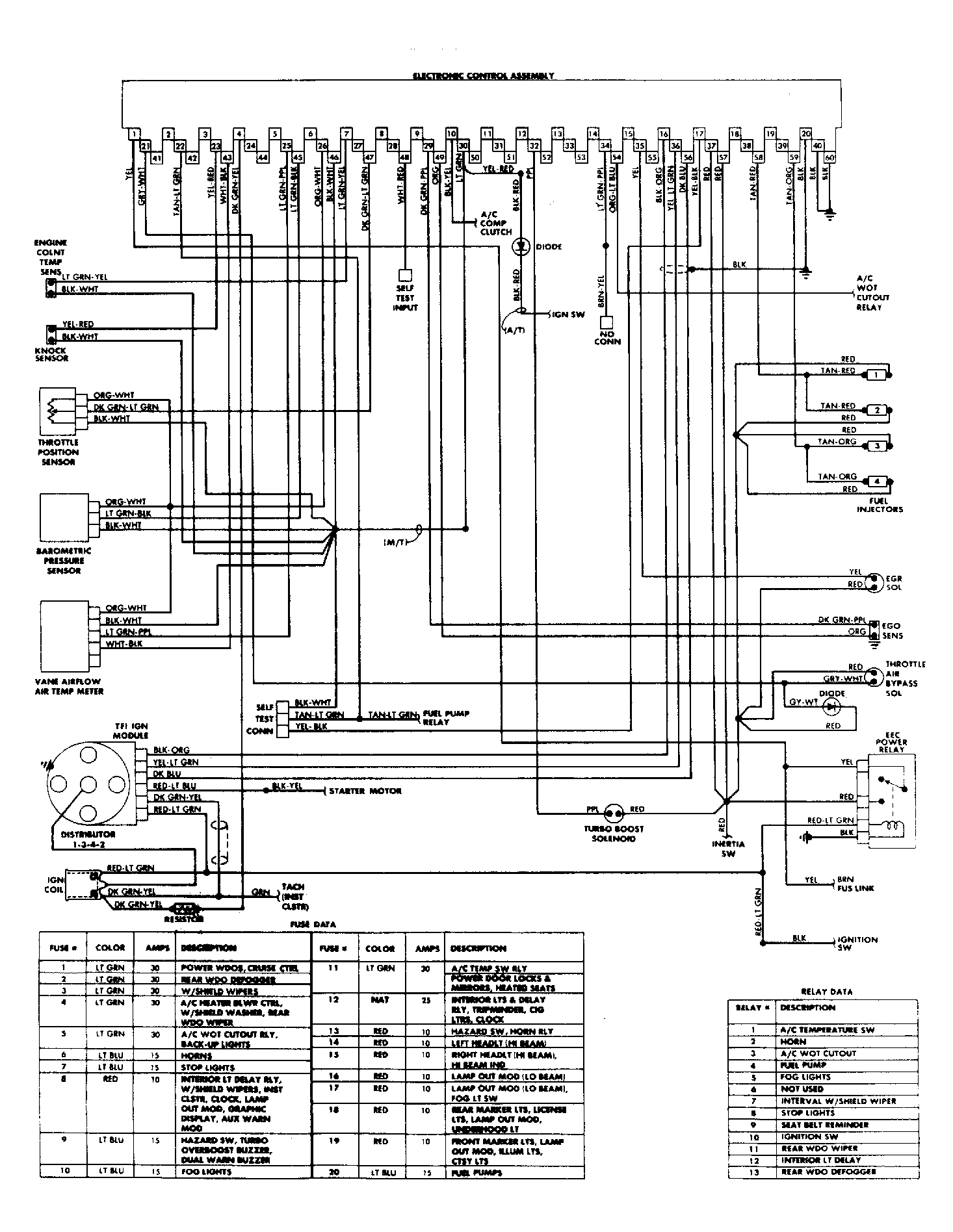

Fig 1: Merkur XR4Ti EFI/CEC Wiring Diagram

G61467
