Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

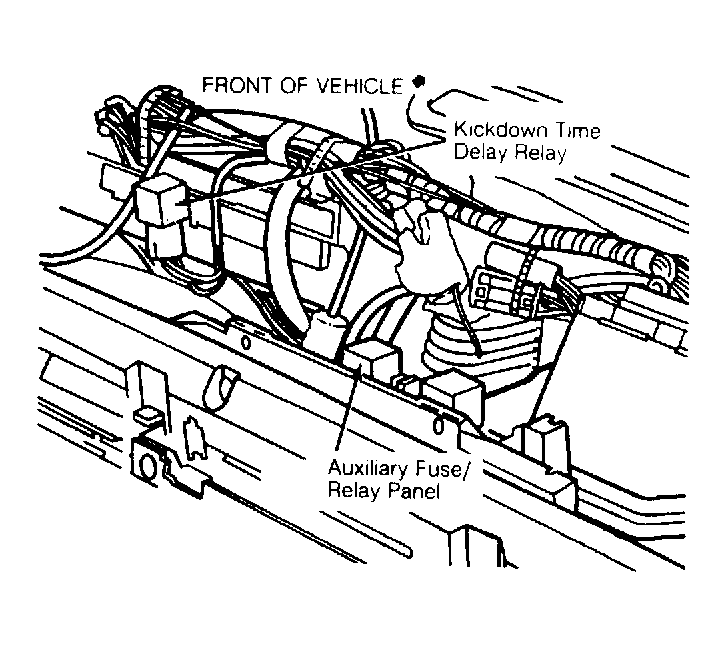

| Auxiliary Fuse/Relay Panel | Under right side of dash, above glove box. See Figure . | |
| Fusible Links | At battery positive terminal. | |
| In-Line Circuit Breakers | ||
| No. 23 & 24 | In main fuse/relay panel. | |
| No. 36 | In auxiliary fuse/relay panel. | |
| In-Line Fuses | ||
| No. 31 | Taped to wiring harness, in back of auxiliary fuse panel. | |
| No. 32 & 37 | In auxiliary fuse/relay panel. | |

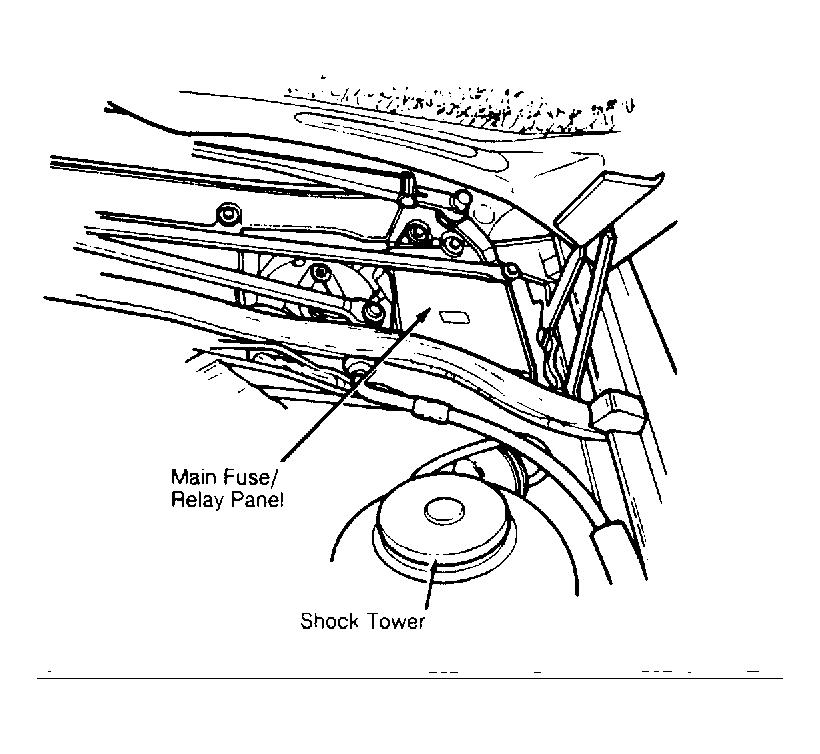

| Main Fuse/Relay Panel | On left, rear corner of engine bay. See Figure . | |
