Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

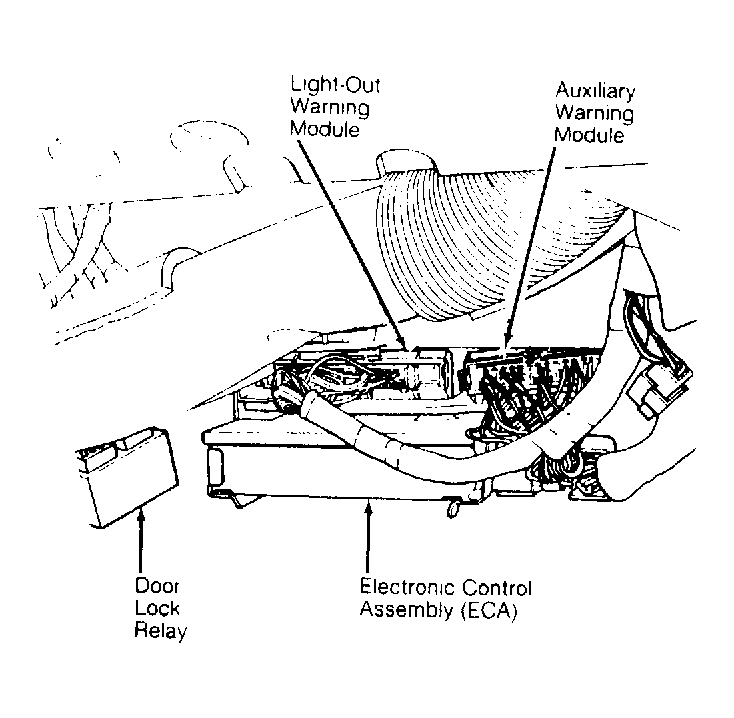

| Auxiliary Warning Module | In passenger compartment, under right side of dash. See Figure . |
| Electronic Control Assembly (ECA) | In passenger compartment, under right side of dash. See Figure . |

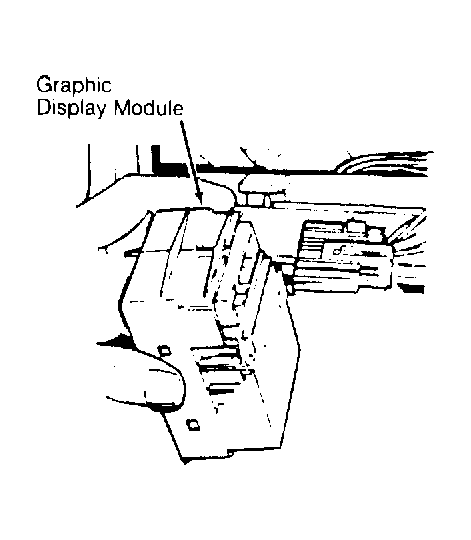

| Graphic Display Module | Under dash, at center of dash panel. See Figure . |
| Light-Out Warning Module | In passenger compartment, under right side of dash. See Figure . |

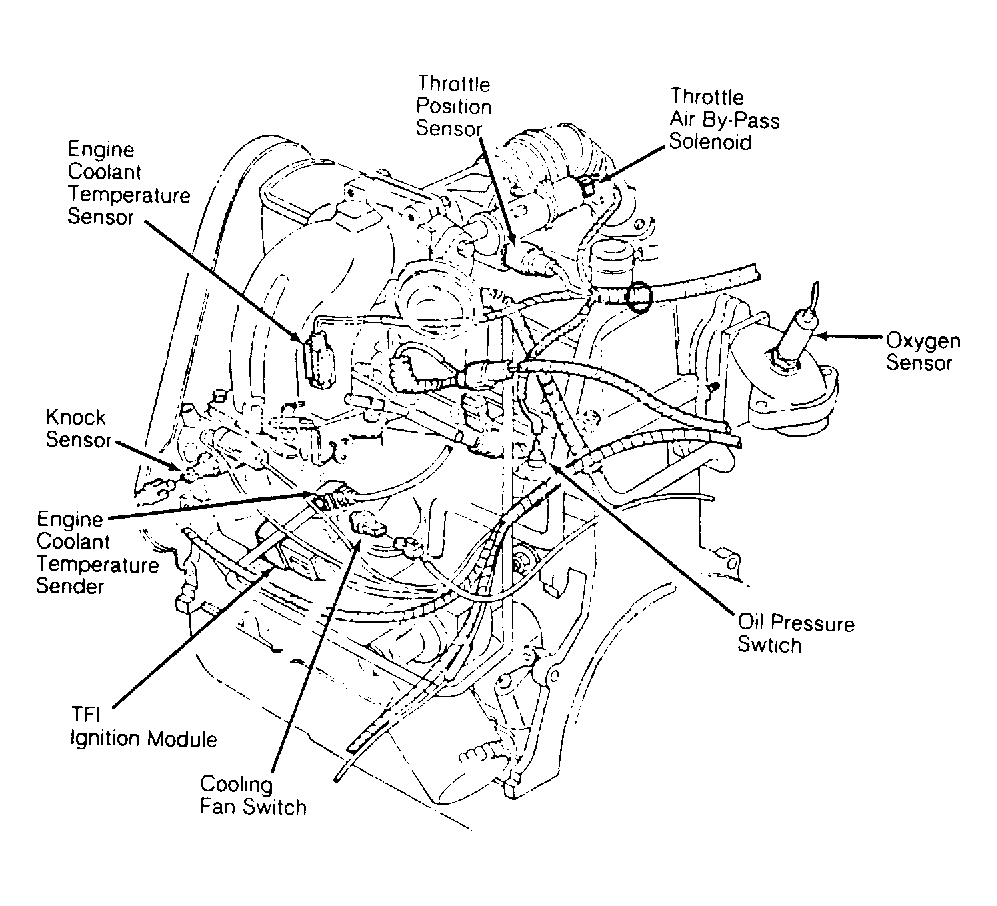

| TFI Ignition Module | Mounted to distributor base. See Figure . |
