Front Wheel Brake Assembly

Internally vented discs of 275 mm diameter with single 48 mm piston floating calipers are used at the front. The brake hose is fixed to the caliper using a Banjo type bolt.

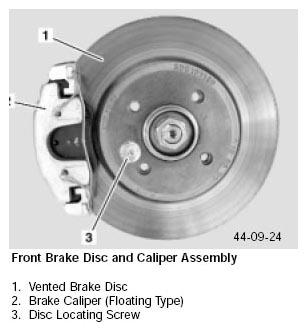

Fig 1: Front Brake Disc And Caliper Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

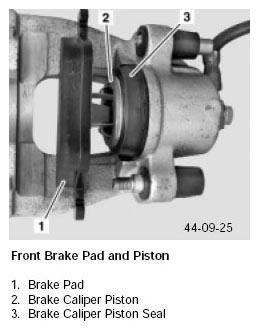

Fig 2: Front Brake Pad And Piston

Courtesy of BMW OF NORTH AMERICA, INC.
