Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

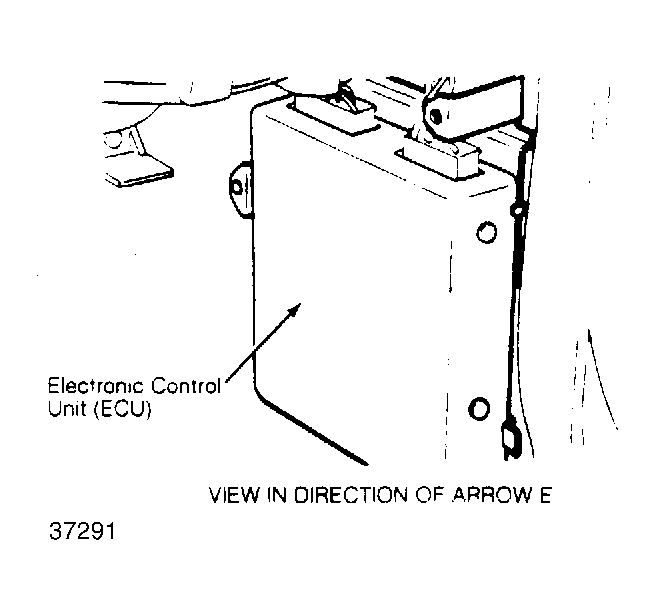

| Electronic Control Unit (ECU) | On right side of cowl. See Figure . |
| Electronic Time & Alarm Control System (ETACS) Unit | On left front floor crossmember. See Figure . |

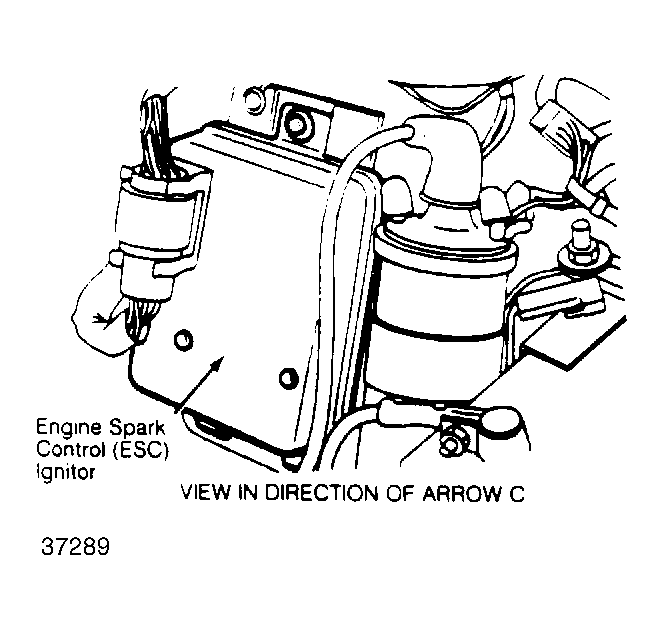

| Engine Spark Control (ESC) Igniter | On left inner fender panel. See Figure . |

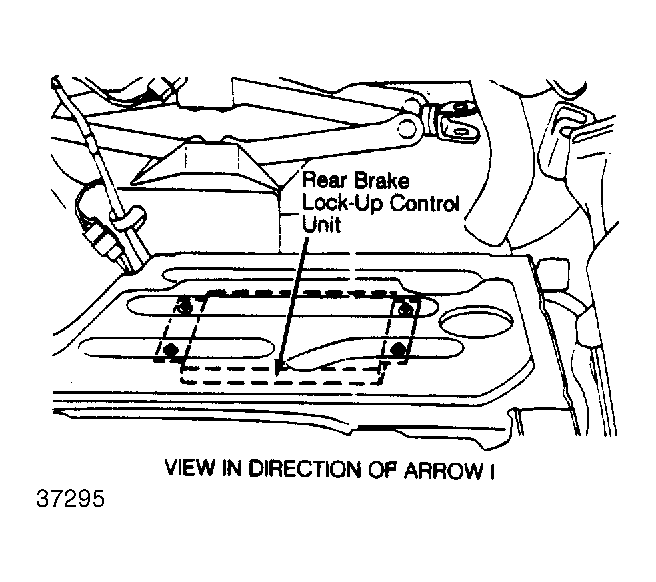

| Rear Brake Lock-Up Control Unit | Under luggage compartment. See Figure . |

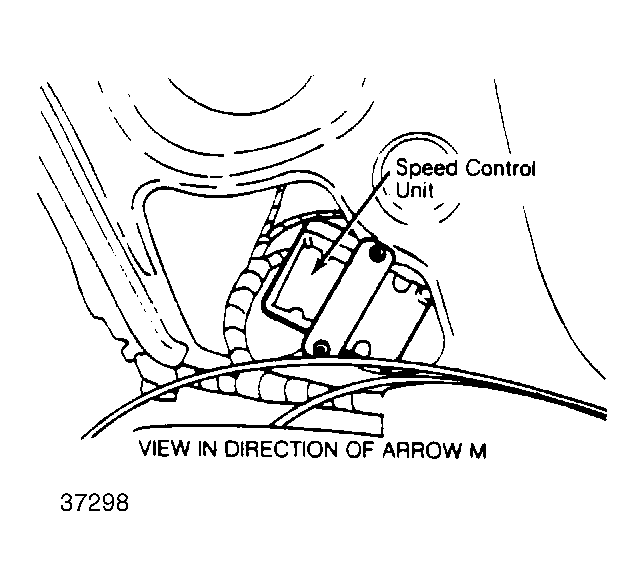

| Speed Control Unit | On left rear inner quarter panel. See Figure . |
