Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| Blower Resistors | On blower motor. |
| Distributor Signal Generator | In distributor. |

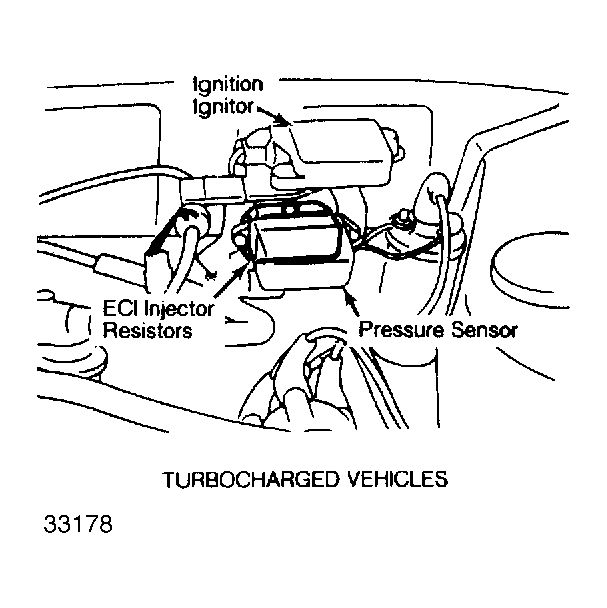

| ECI Injector Resistors | Near ignition coil. See Figure. |

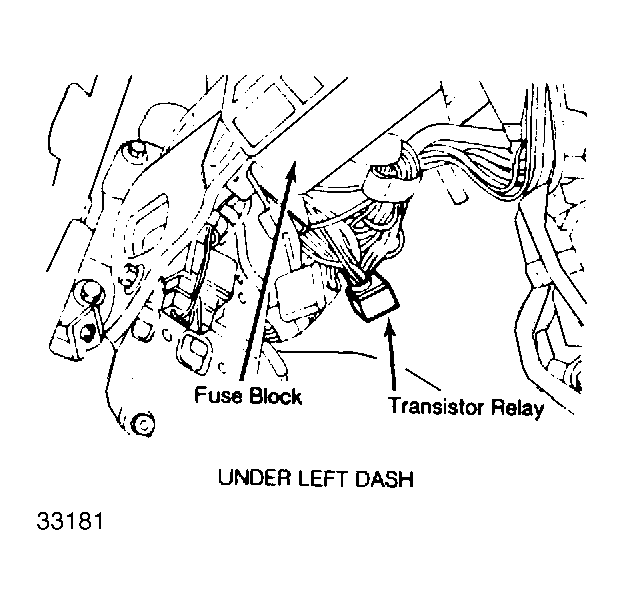

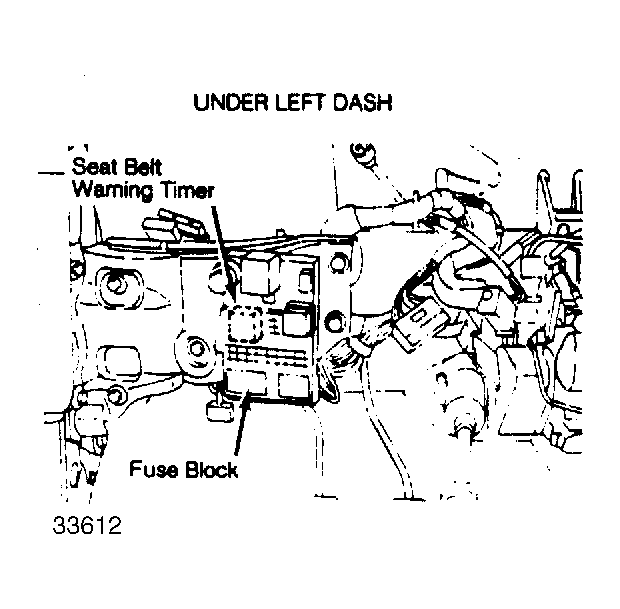

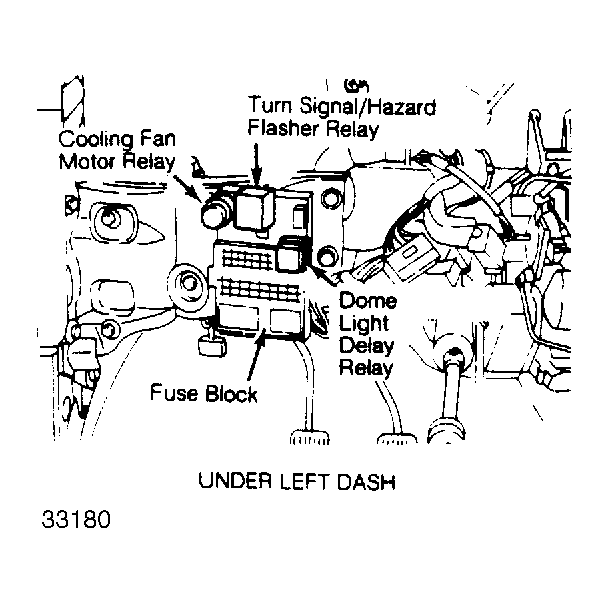

| Fuse Block | Below left instrument panel. See Figure, Figure & Figure . |
| Ignition Ignitor | Near coil (turbo), or inside distributor (non-turbo). See Figure. |
| Relay Block | Behind driver's instrument panel. |
