Injector Coil

Set ignition switch to "OFF" position. Disconnect connectors from injectors. Check injector coil for continuity with circuit tester. Resistance should read 2-3 ohms. If resistance is 0 ohms or abnormally large, a short or open circuit exists in coil. Replace injector and reconnect connectors to injectors.

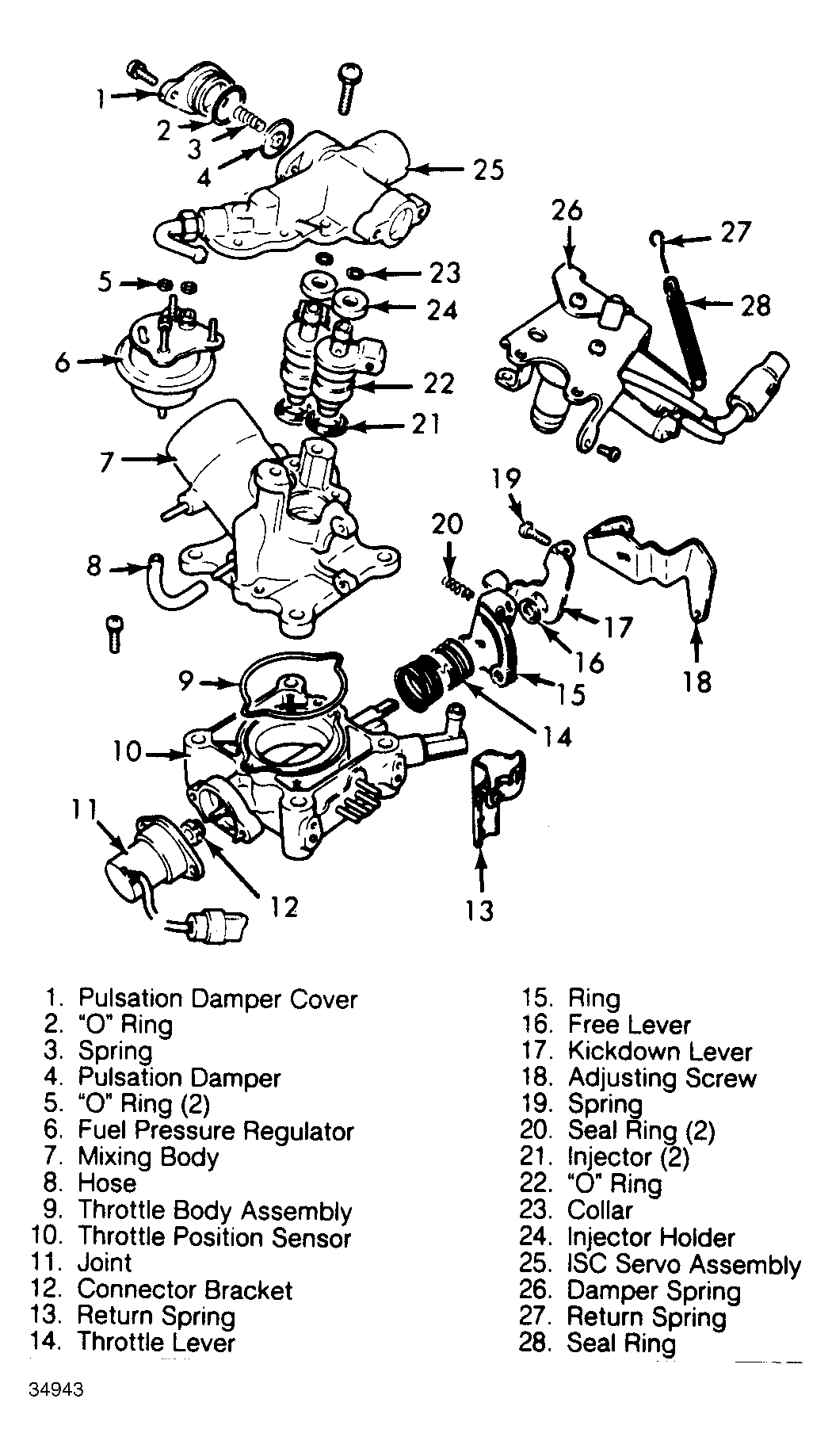

Fig 1: Fuel Injection Mixer (All Exc. Galant)

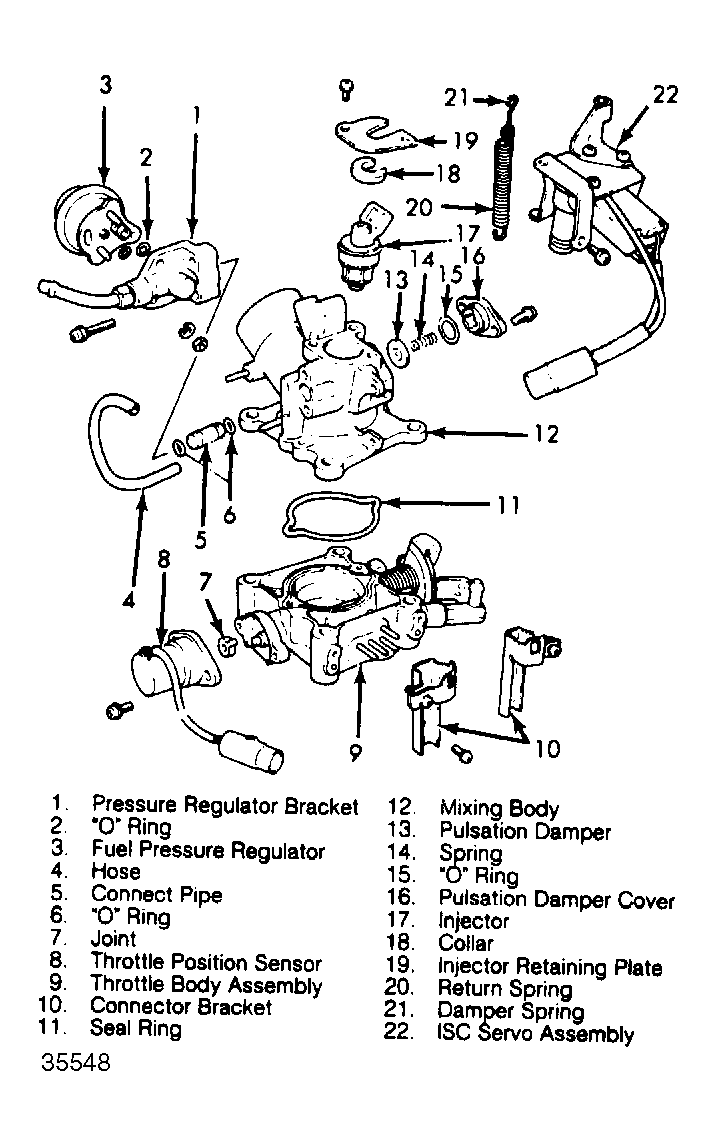

Fig 2: Fuel Injection Mixer (Galant)
