Service Point Locations

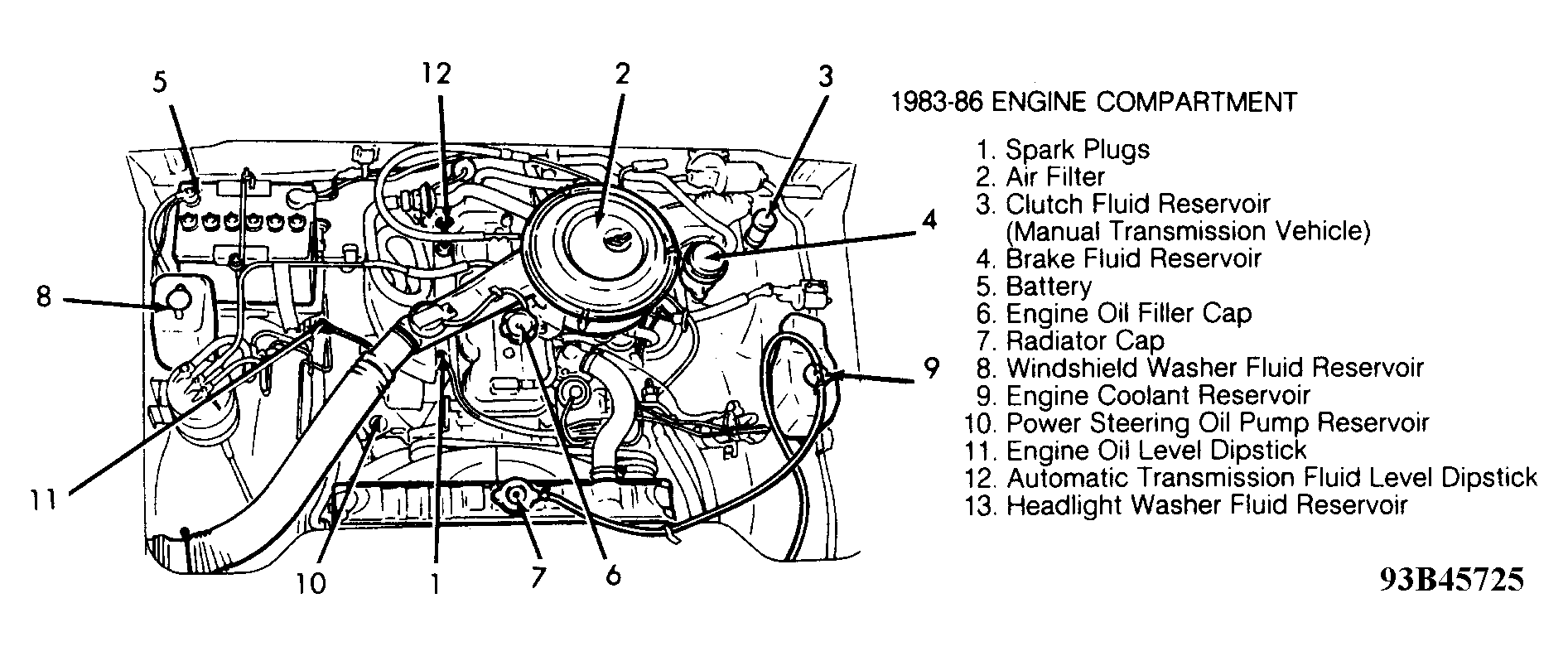

Fig 1: Service Point Locations (1983-86 2.6L 4-Cylinder Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

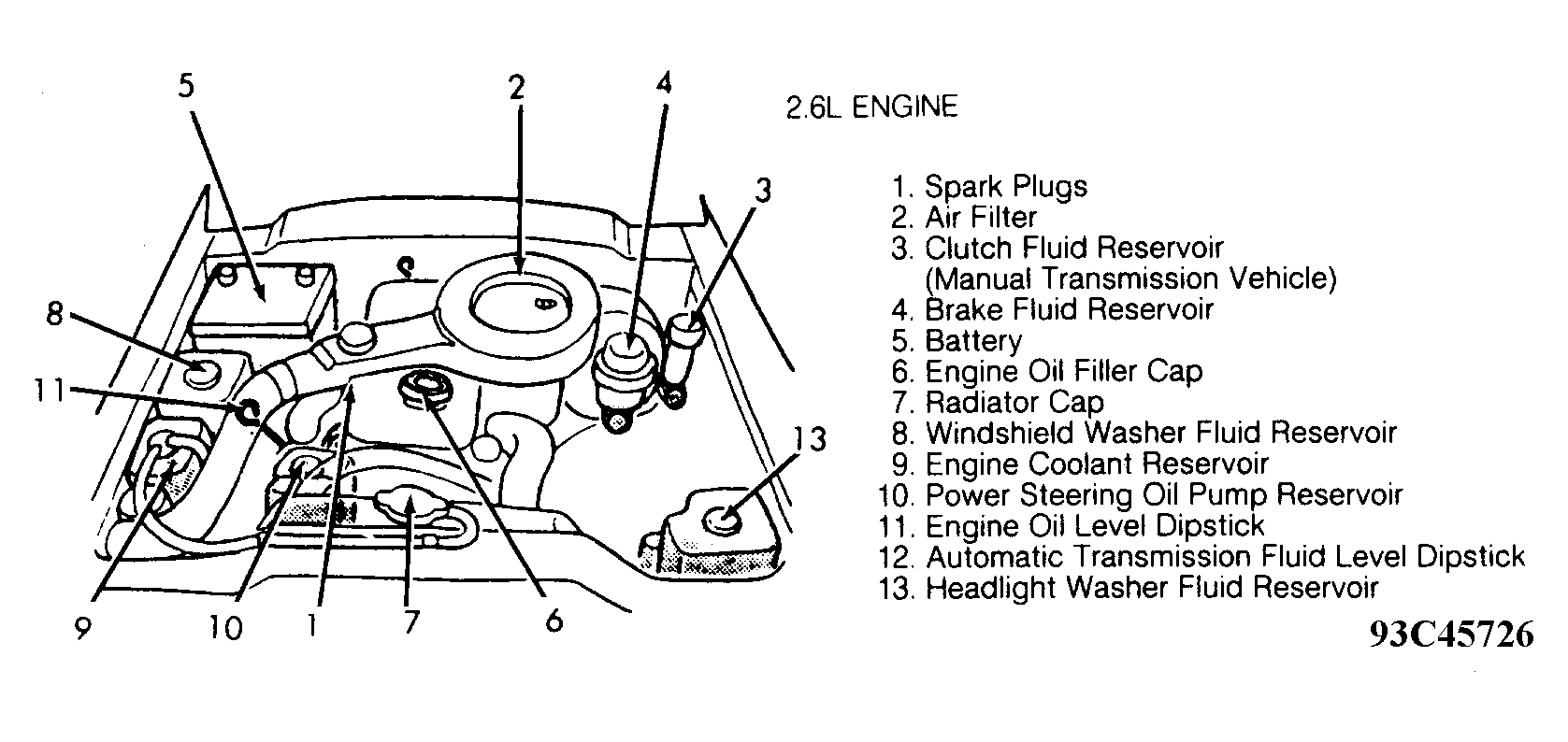

Fig 2: Service Point Locations (1987-91 2.6L 4-Cylinder Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

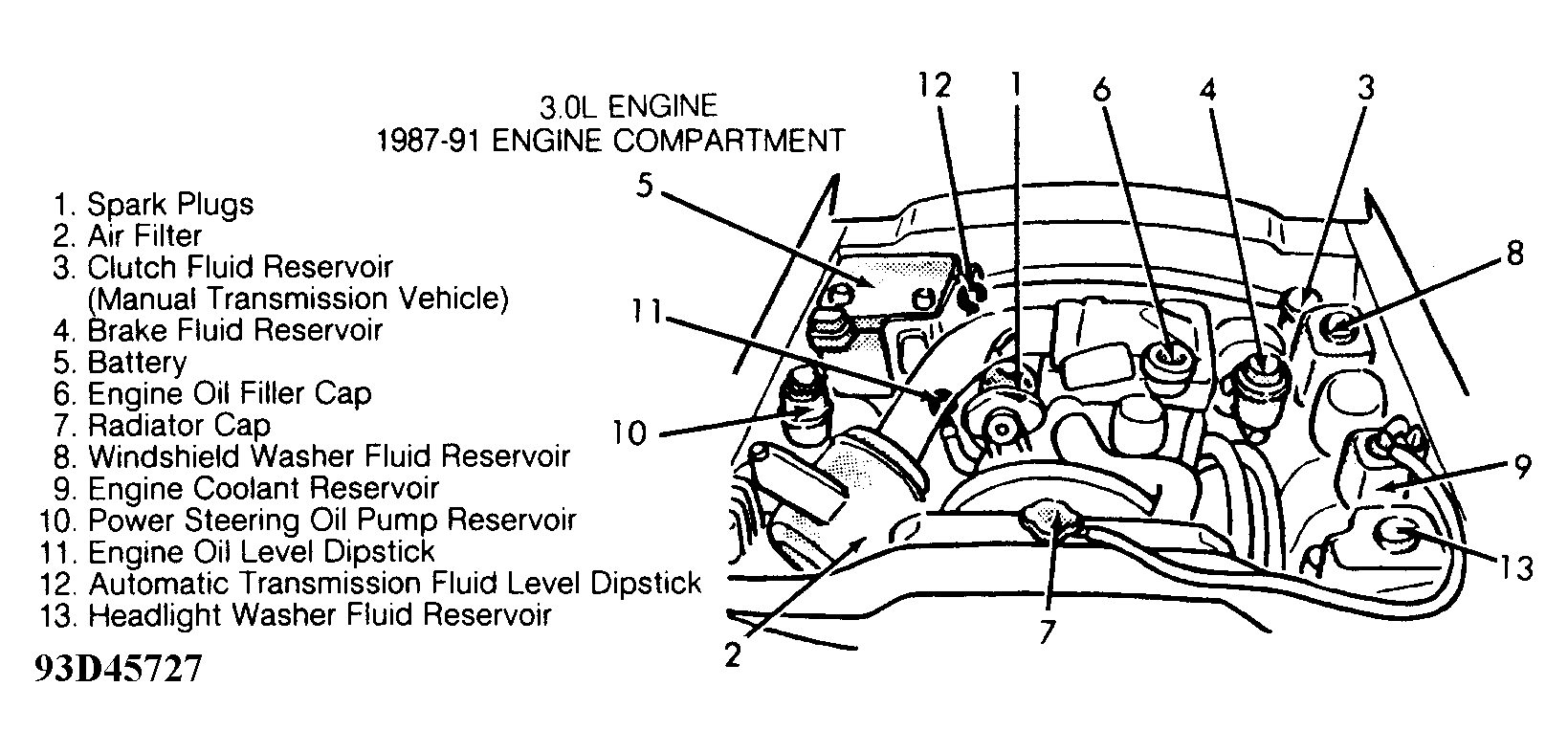

Fig 3: Service Point Locations (1987-91 3.0L V6 Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

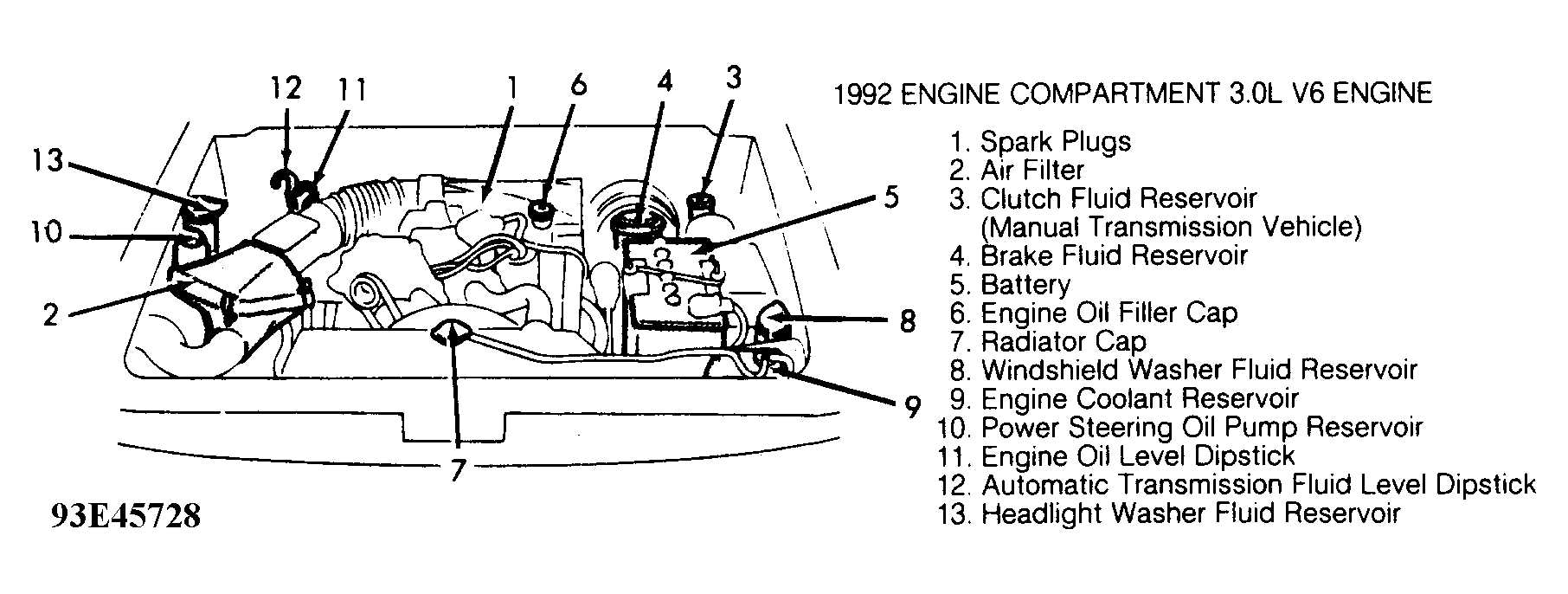

Fig 4: Service Point Locations (1992 3.0L V6 Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
