Spray Pattern

To test spray pattern, pump tester handle one time per second. Check spray pattern. See Fig 1 . If pattern is not correct, clean or replace nozzle.

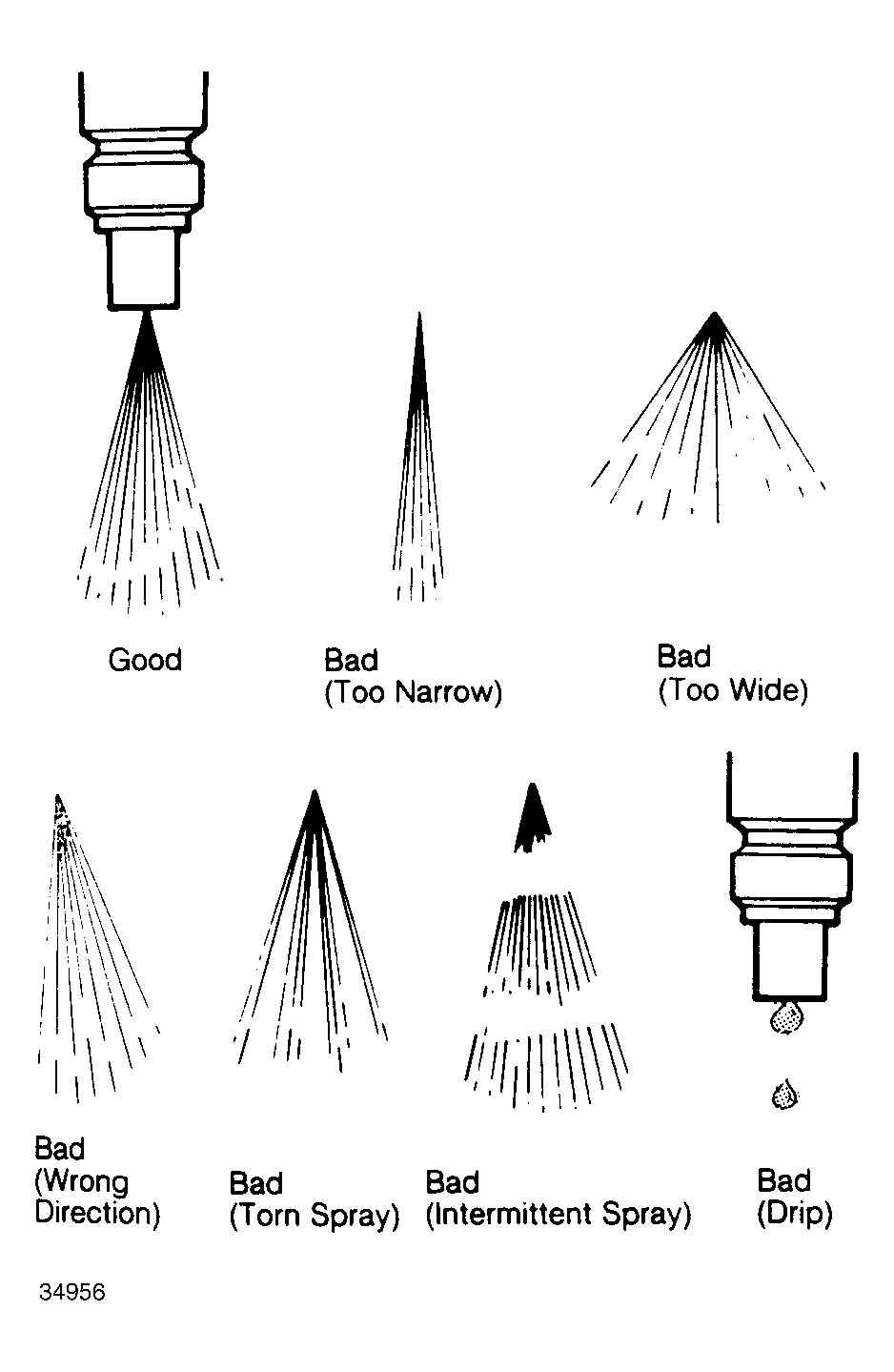

Fig 1: Injector Nozzle Spray Patterns

G34956
