CIRCUIT PROTECTION DEVICES LOCATION
Component
Location

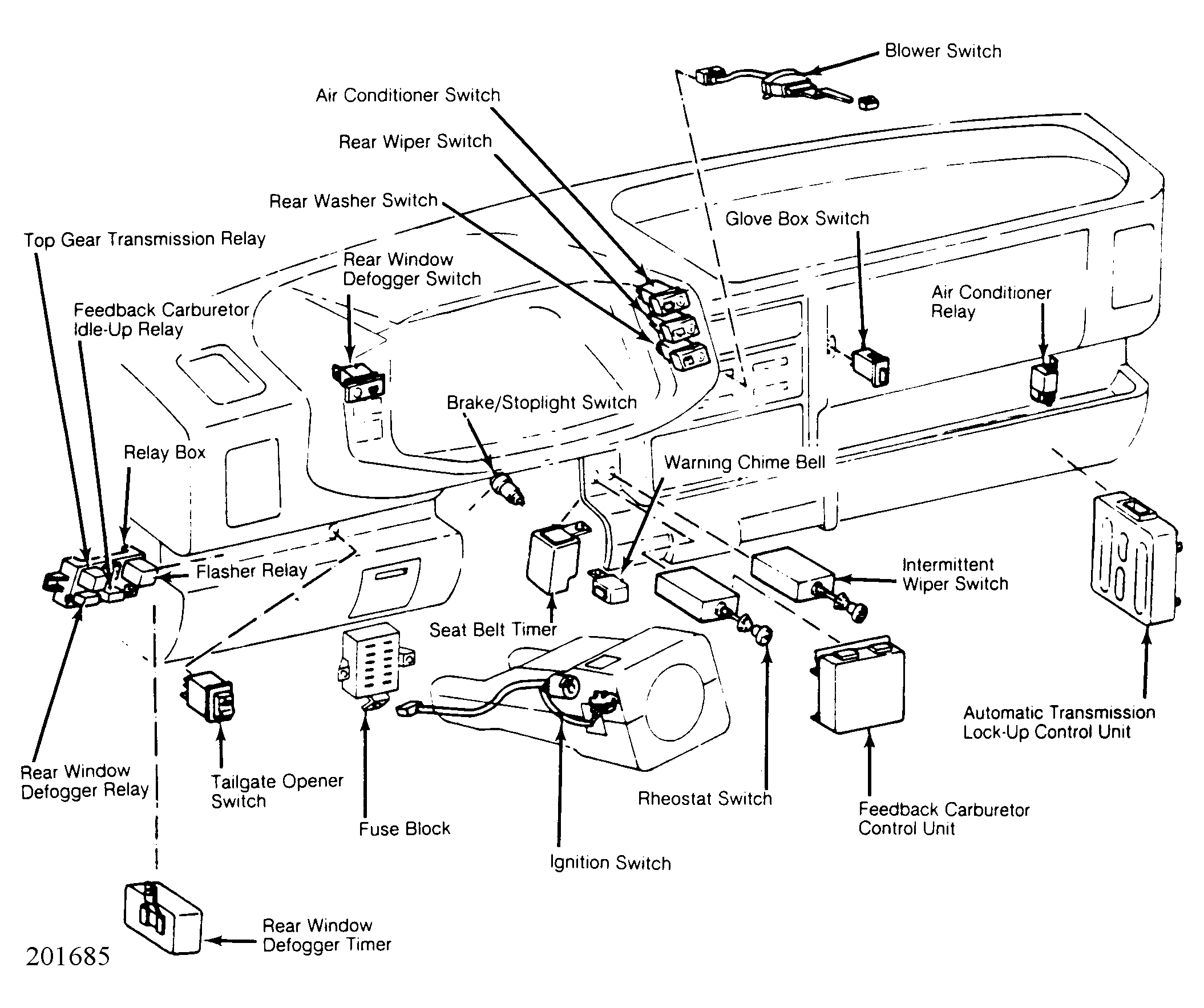

Fuse Block
Under left side of dash. See
Figure
.
Fusible Links
Near positive terminal of battery. See
Figure
&
Figure
.
