Service Point Locations

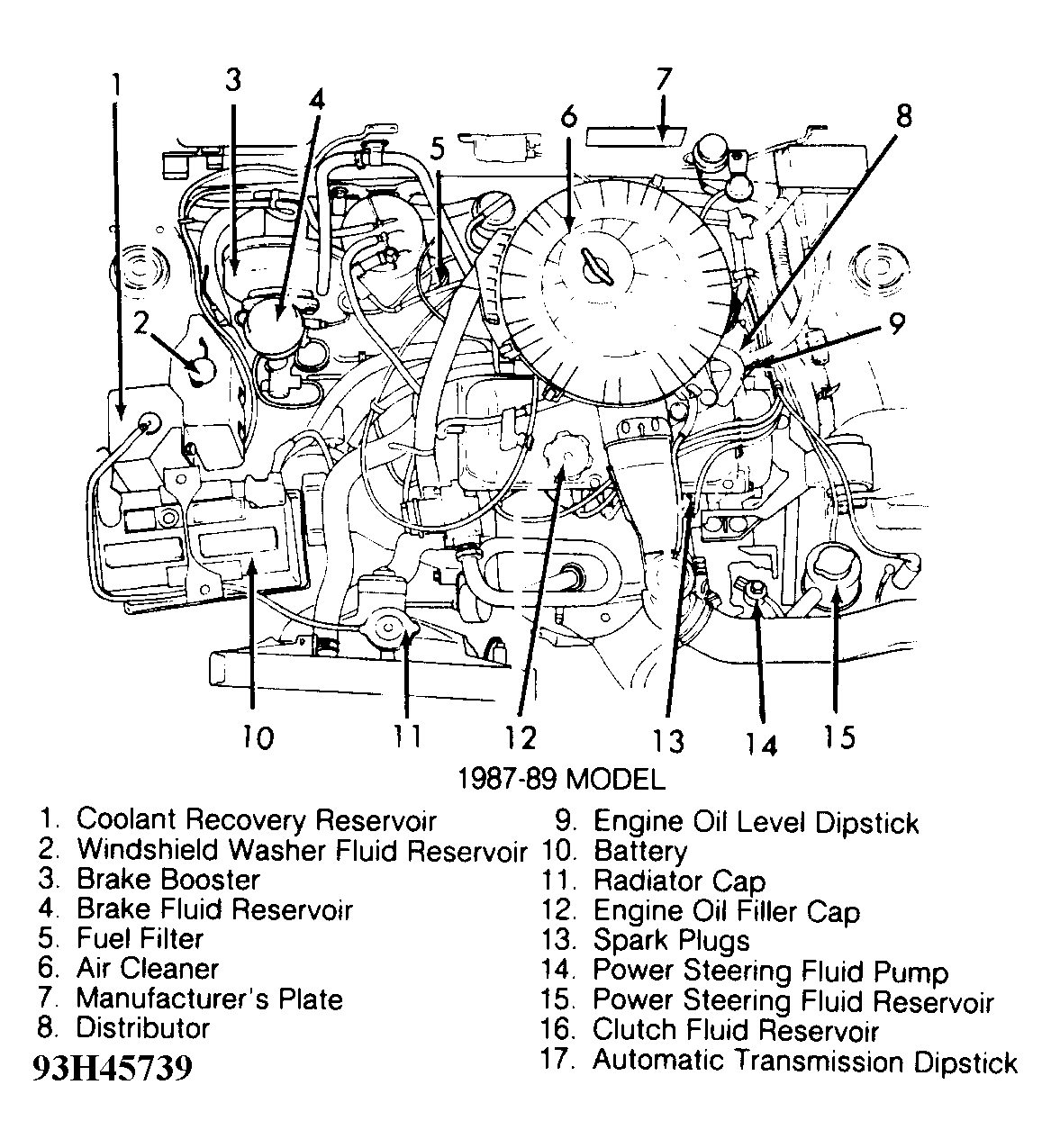

Fig 1: Service Point Locations (1987-89 Engines)
G93H45739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

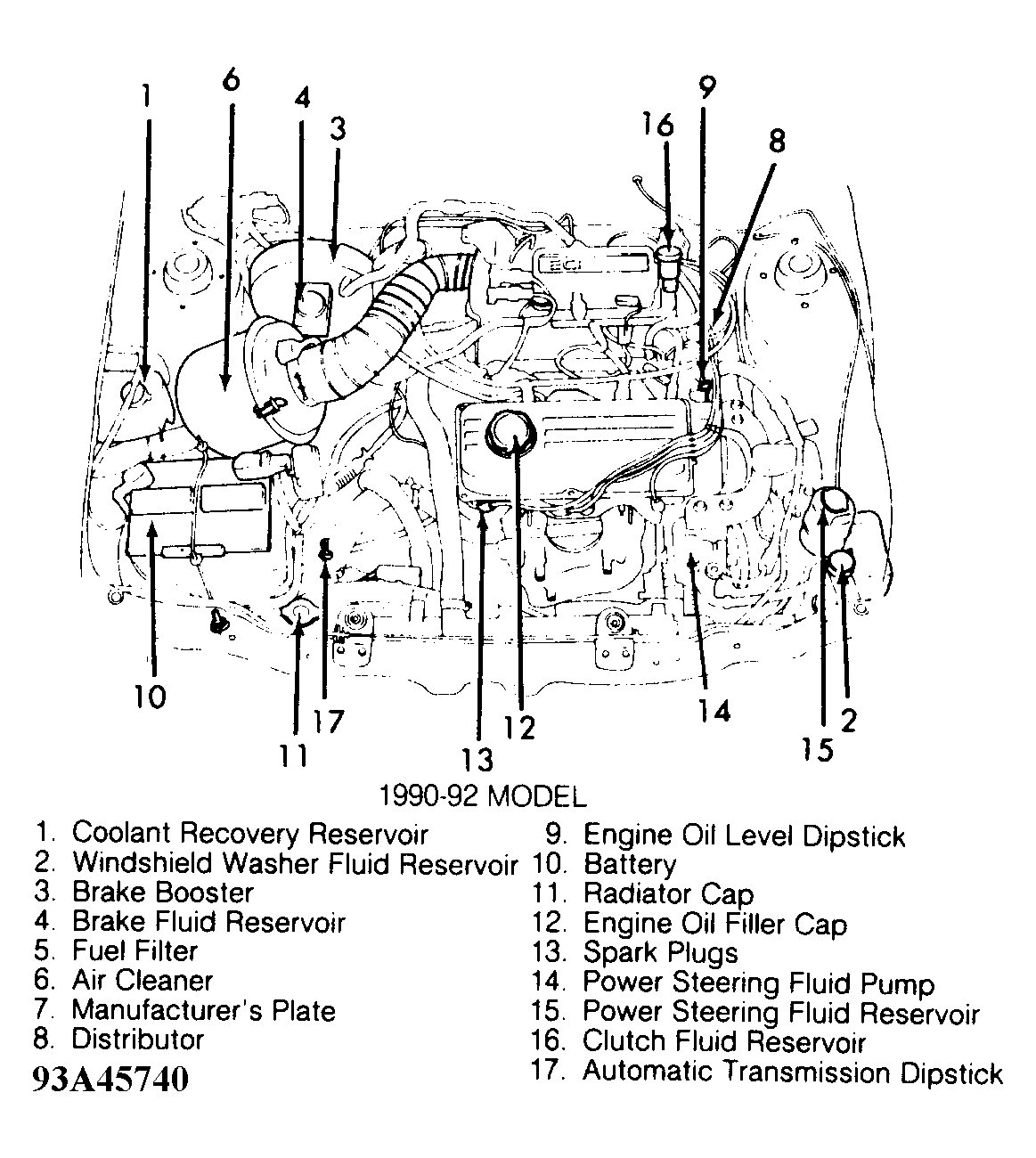

Fig 2: Service Point Locations (1990-92 Engines)
G93A45740Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

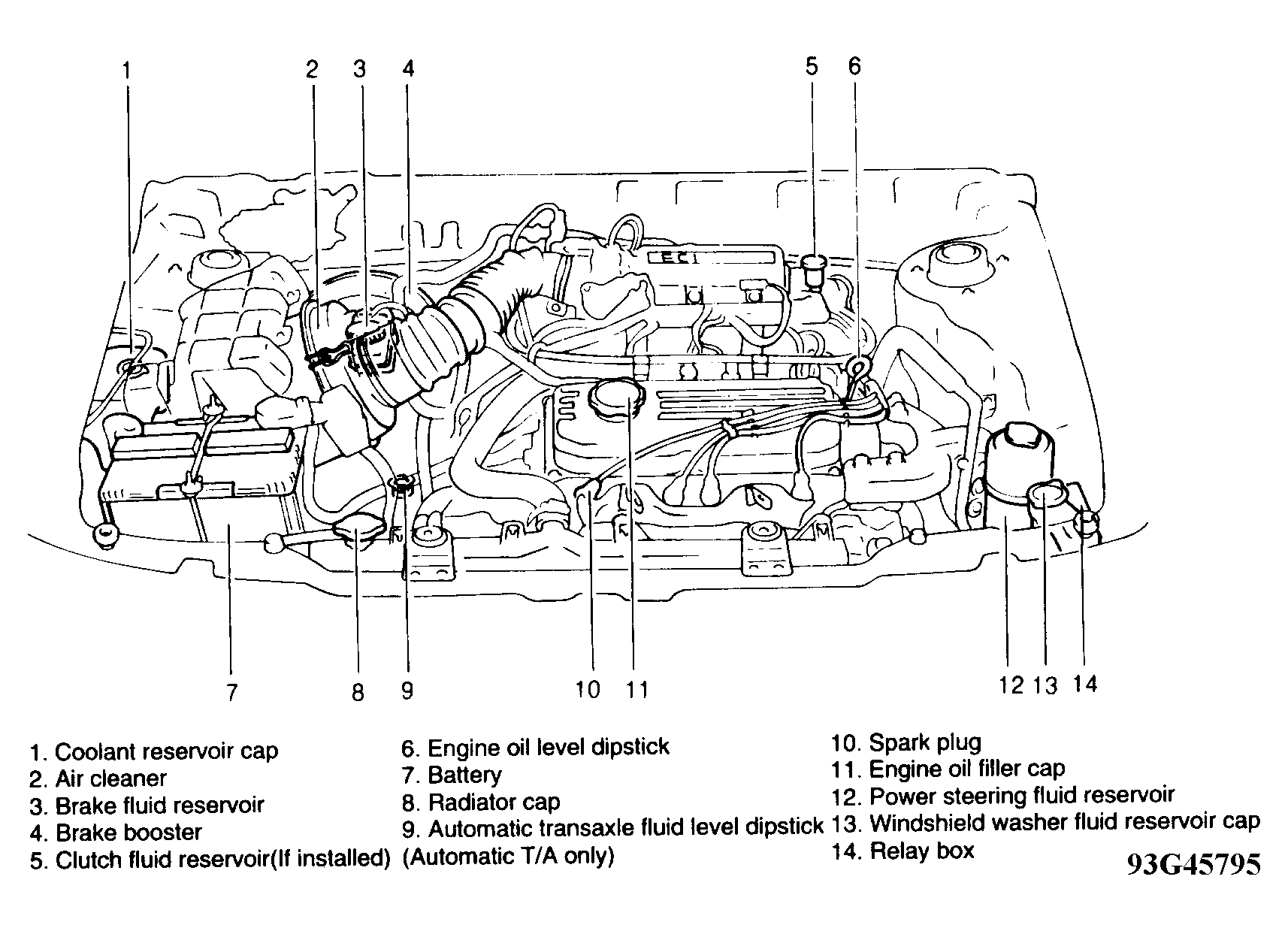

Fig 3: Service Point Locations (1993-94 Engines)
G93G45795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
