Pulse Generator: Installation

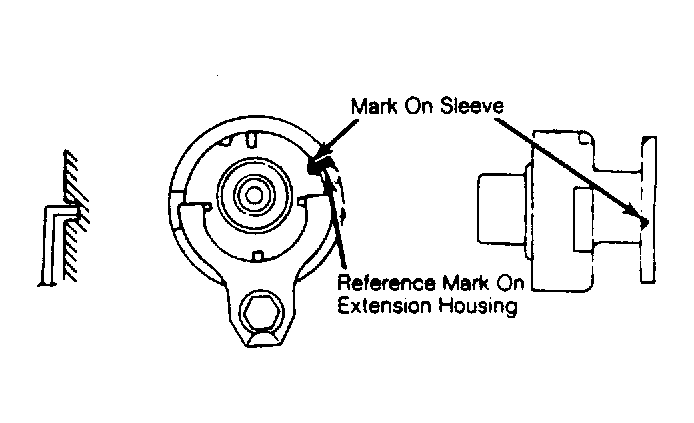

Reverse removal procedure. To install on a manual transmission, count the number of speedometer driven gear teeth and select the generator sleeve mark which indicates that number of teeth. Align selected mark with reference mark on extension housing. See Fig 1 .
