Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location
Diagnostic Connector Under left side of dash, above fuse block.

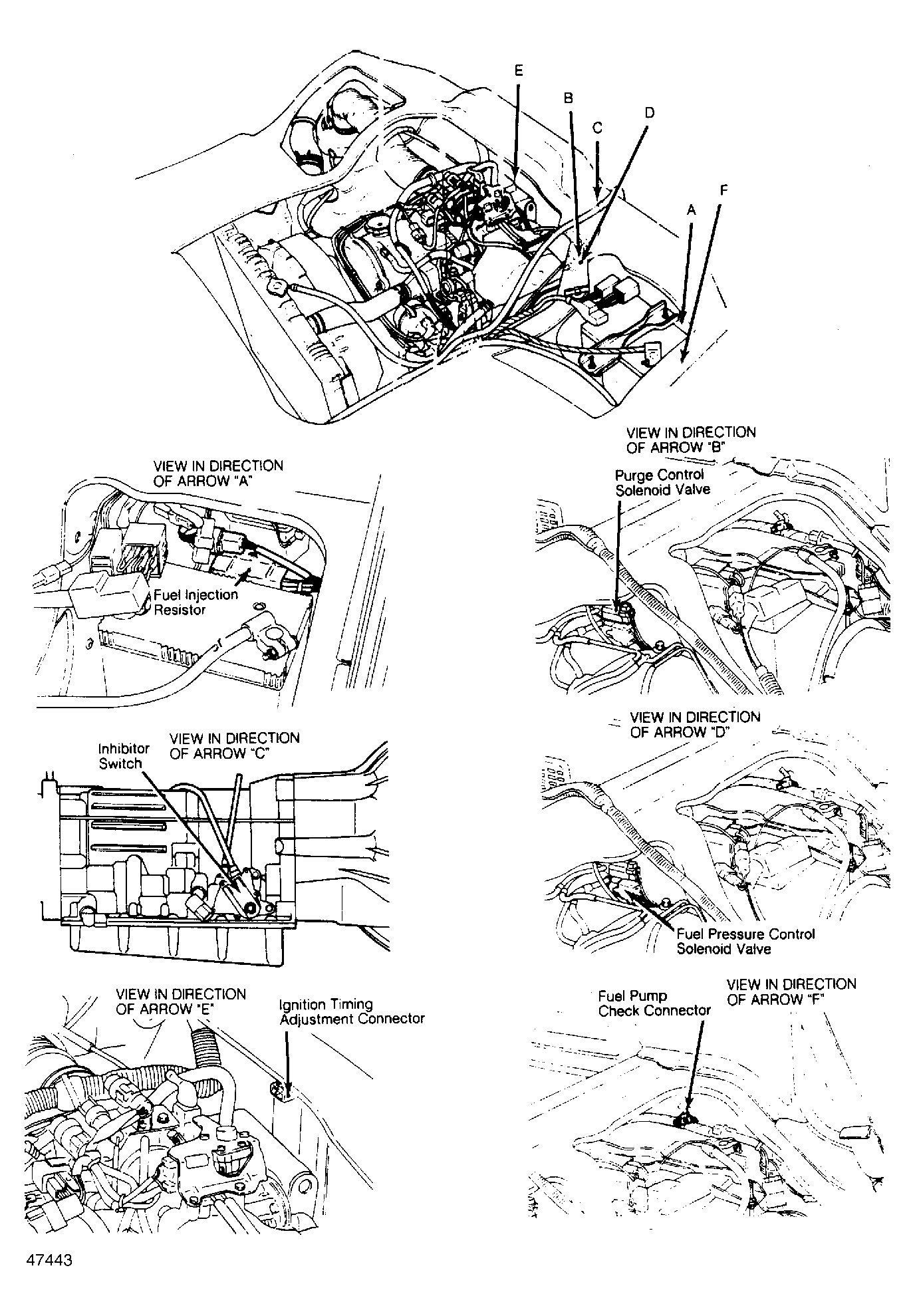

Fuel Pump Check Connector In left side of engine compartment, near battery. See Figure .
Fuel Injector Resistor In left side of engine compartment, behind battery. See Figure .
Ignition Timing Adjustment Connector On rear of engine compartment, above valve cover. See Figure .

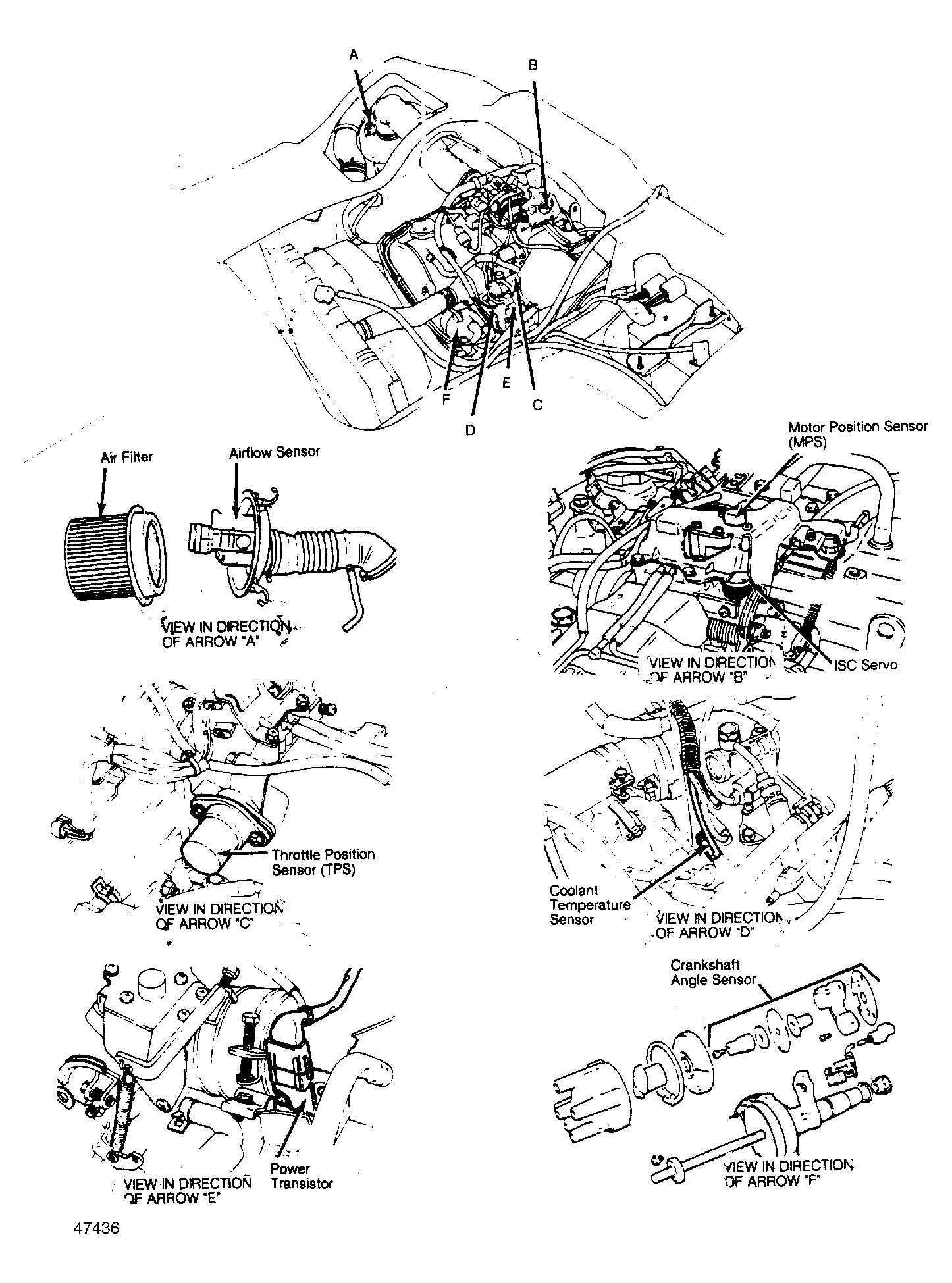

Power Transistor On top left side of engine. See Figure .
