Mitsubishi
>>
1990
>>
Eclipse Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Component Testing
>>
Electric Remote Controlled Mirror Assembly
Electric Remote Controlled Mirror Assembly

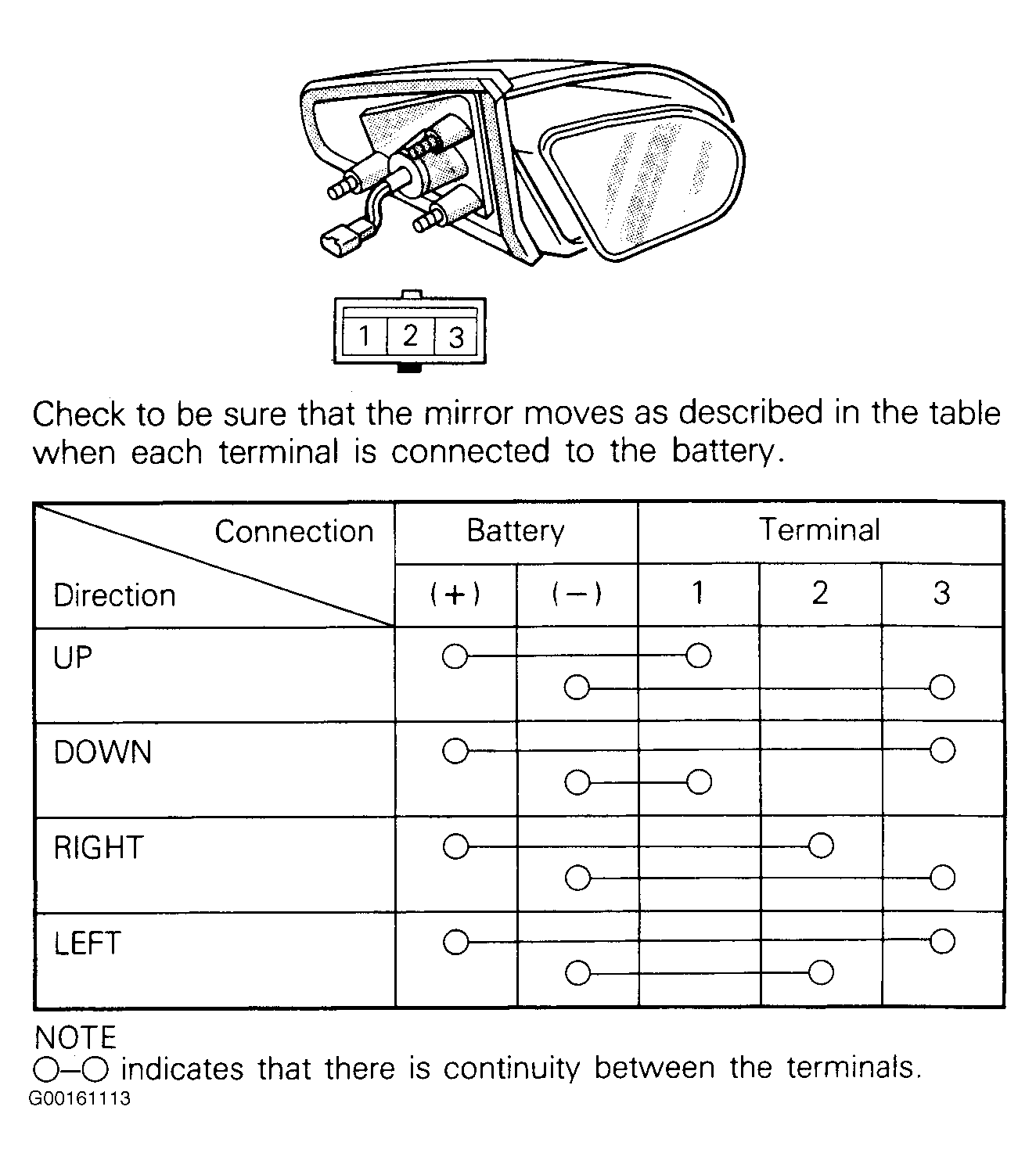

Fig 1: Testing Electric Controlled Mirror Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
