Diagnostic Trouble Code Definitions

For diagnostic trouble code definitions, see Fig 1 . Perform appropriate test(s) under DIAGNOSTIC TESTS.

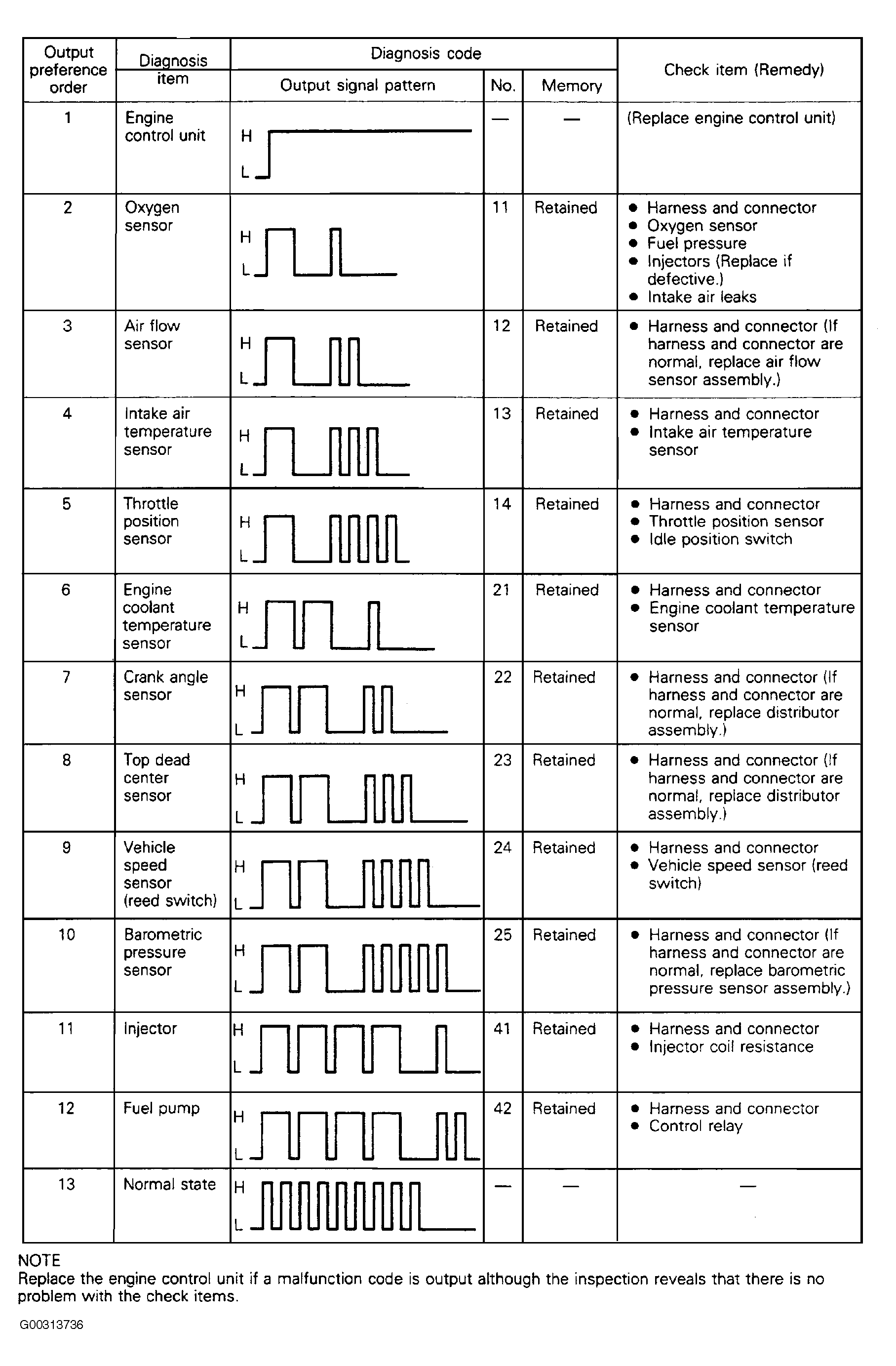

Fig 1: Diagnostic Trouble Code Definitions
G00313736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
