Home >> Mitsubishi >> 1990 >> Montero LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> Engine Coolant Temperature Sensor >> Sensor Inspection

Sensor Inspection

For sensor inspection, see Fig 1 .

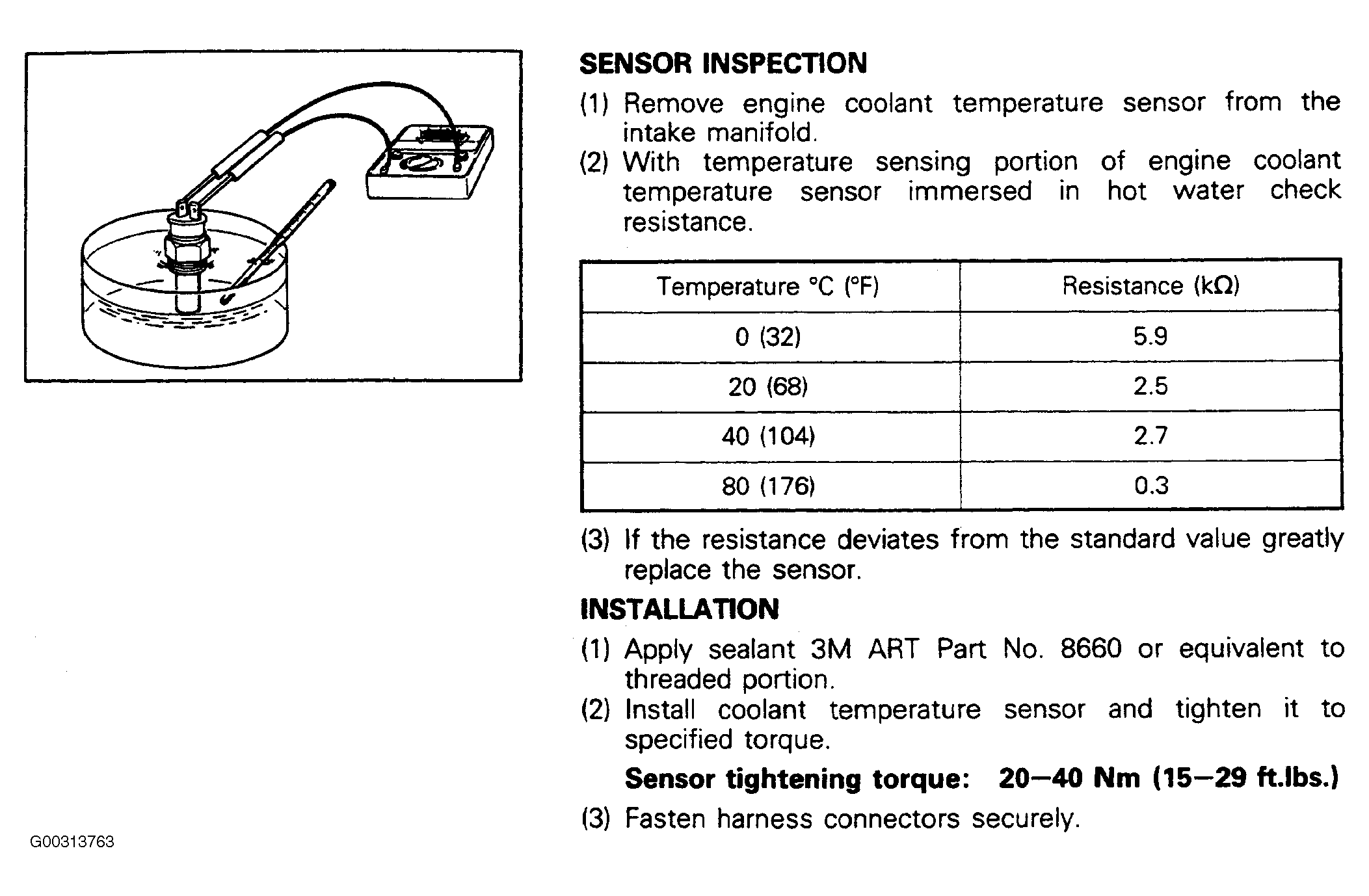

Fig 1: Engine Coolant Temperature Sensor Inspection
G00313763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
