Idle Position Switch
>>
Inspection Using Multi-Use Tester
Inspection Using Multi-Use Tester
See
COMPONENTS INSPECTION PROCEDURE USING MULTI-USE TESTER
. For normal condition, see
Fig 1
.

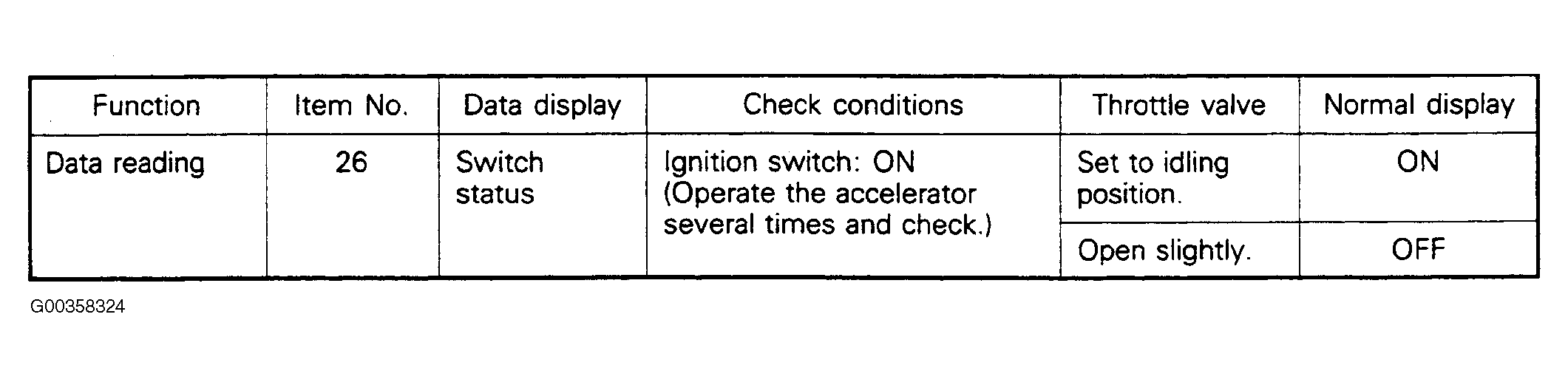

Fig 1: Idle Position Switch Inspection Using Multi-Use Tester
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
