Sensor Inspection

For sensor inspection, see Fig 1 .

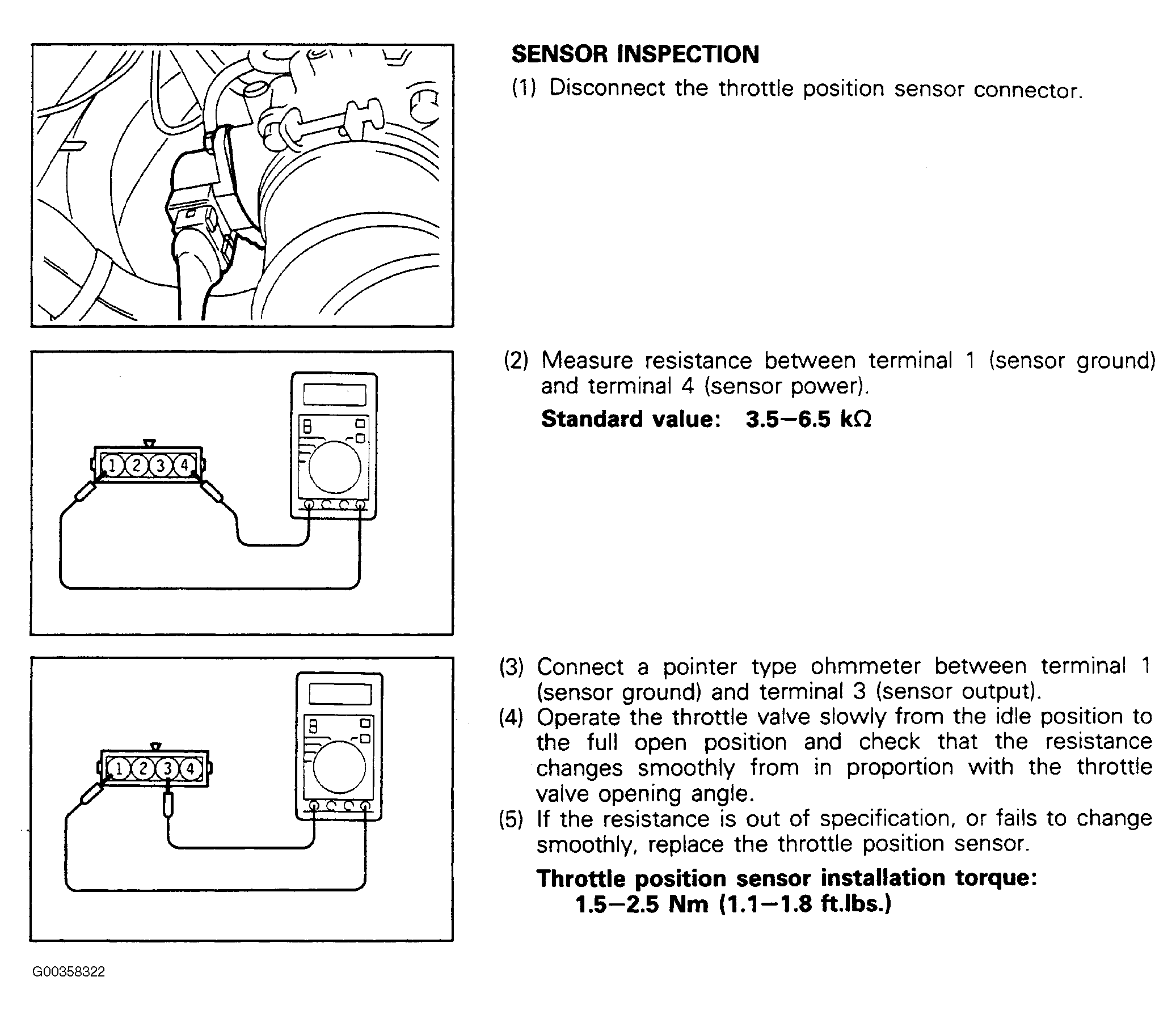

Fig 1: Throttle Position Sensor Inspection
G00358322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
