NS-2: Testing For Fuel

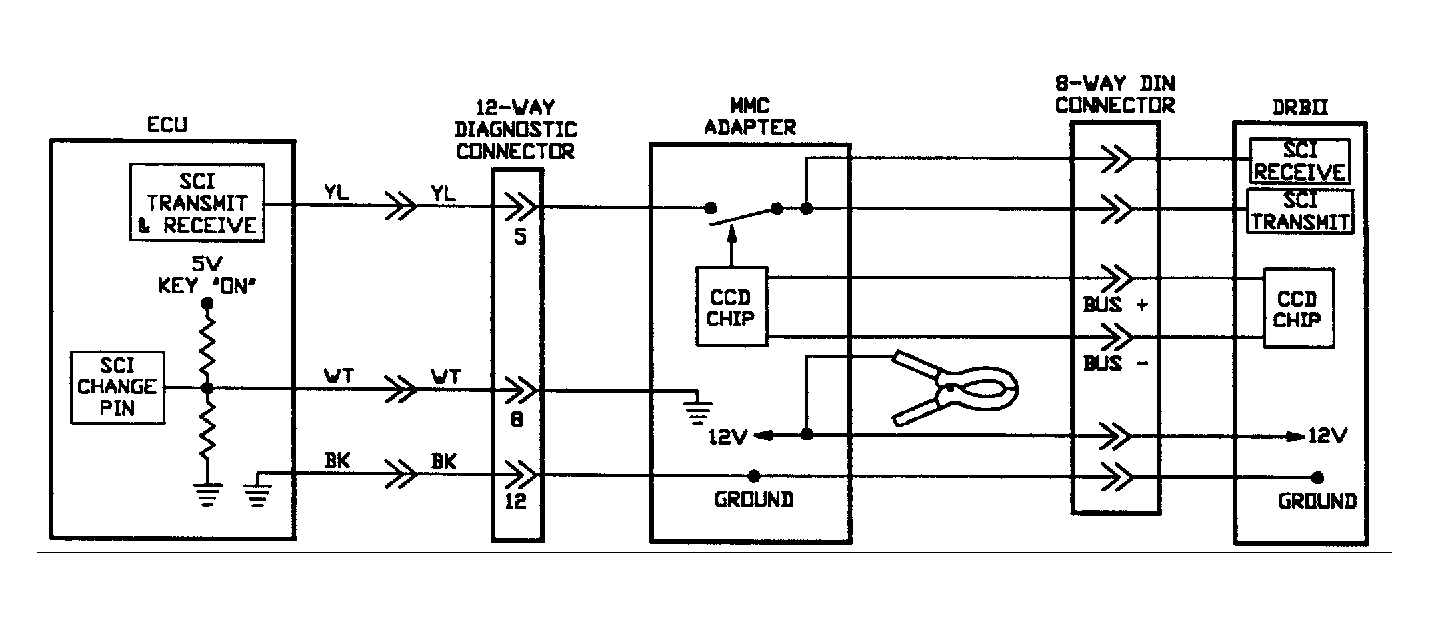

Fig 1: Circuit Diagram NS-2 (2.4L)

G90C19978

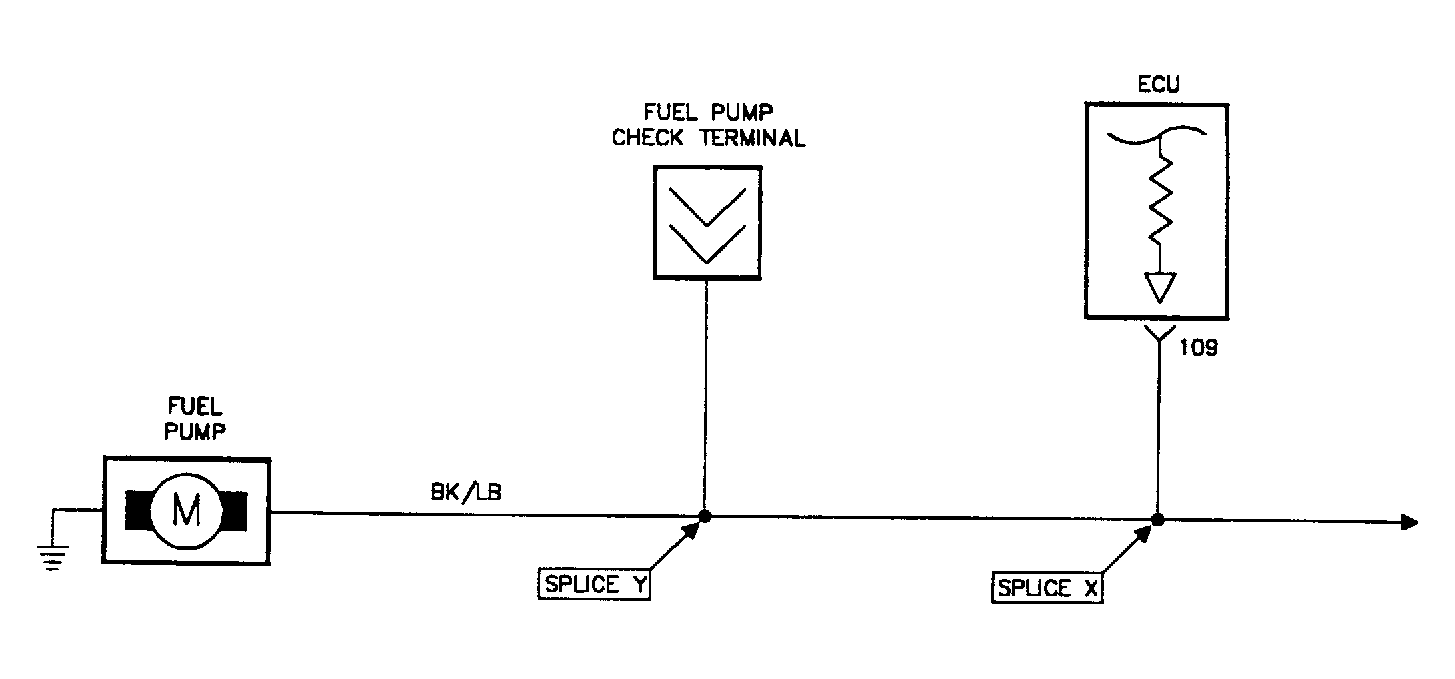

Fig 2: Circuit Diagram NS-2 (2.4L)

G90I19982

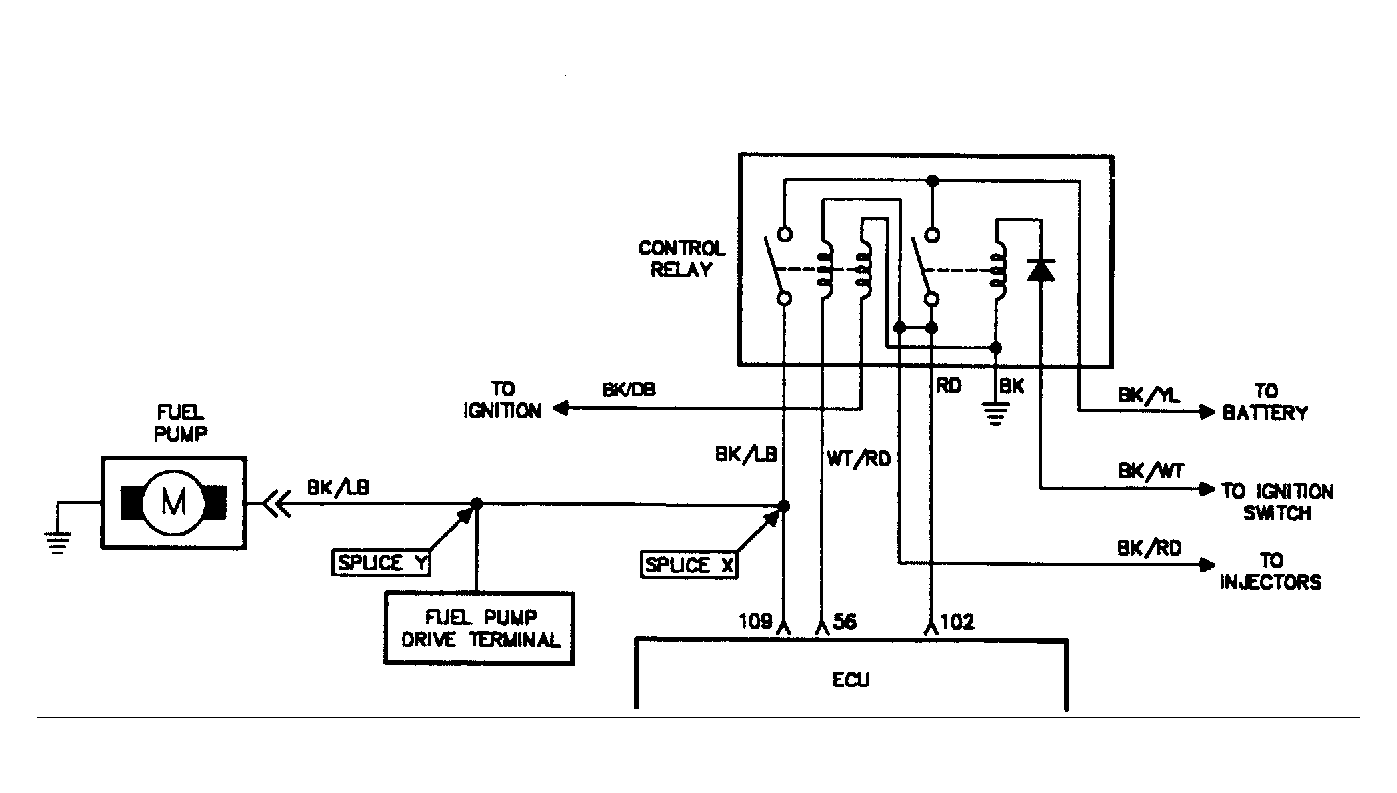

Fig 3: Circuit Diagram NS-2 (2.4L)

G90H19981

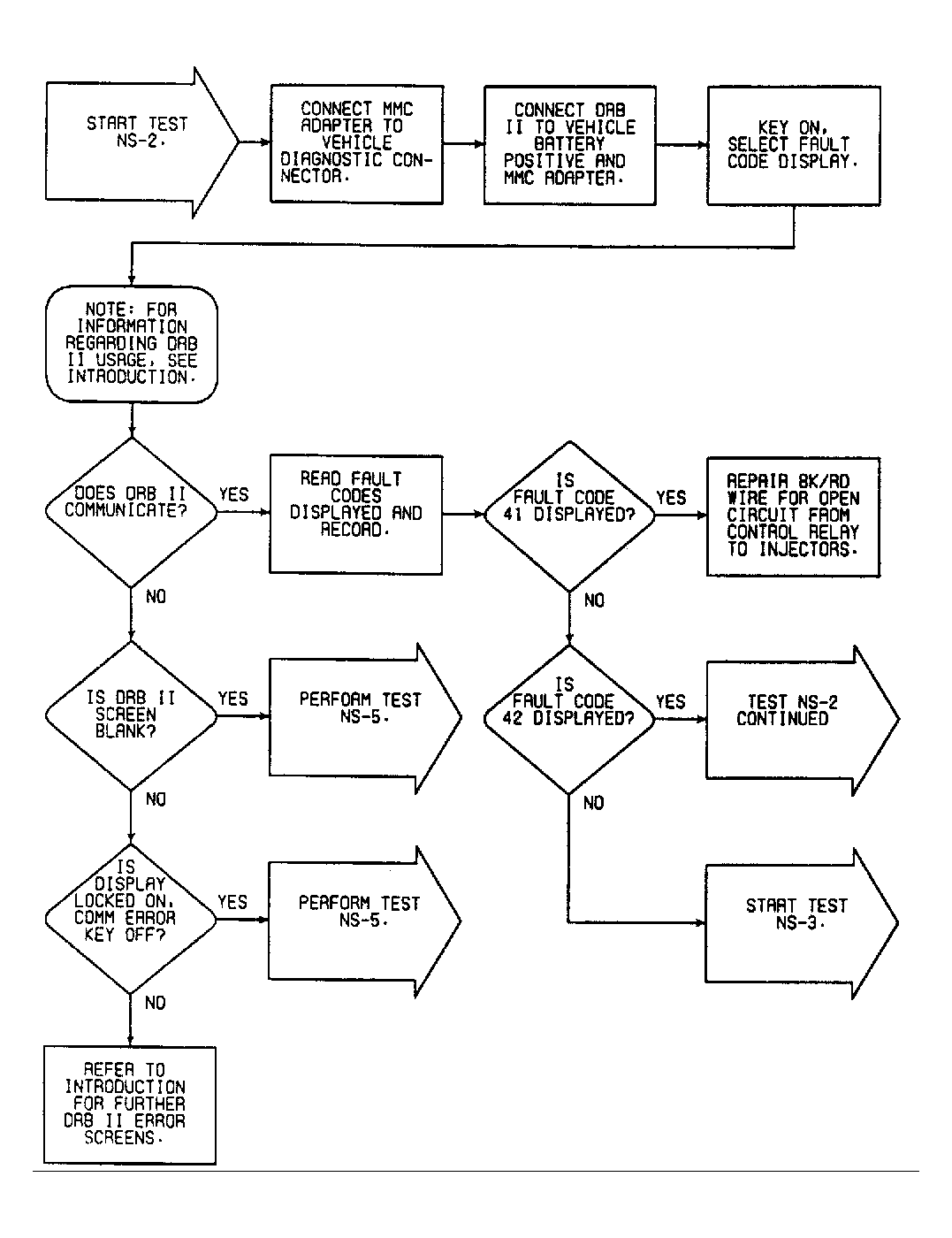

Fig 4: Flow Chart NS-2 (2.4L) (1 of 3)

G90F20011

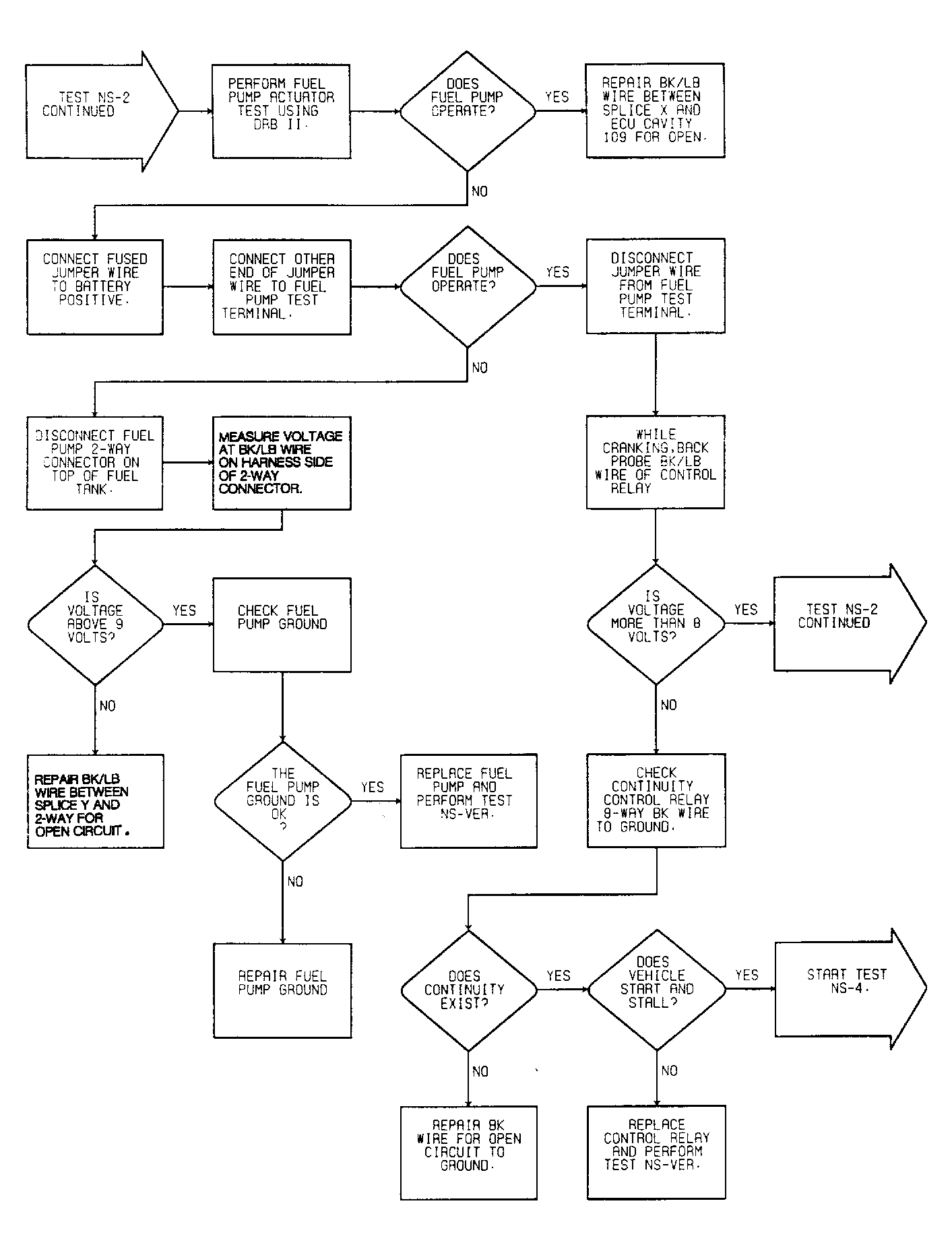

Fig 5: Flow Chart NS-2 (2.4L) (2 of 3)

G90G20012

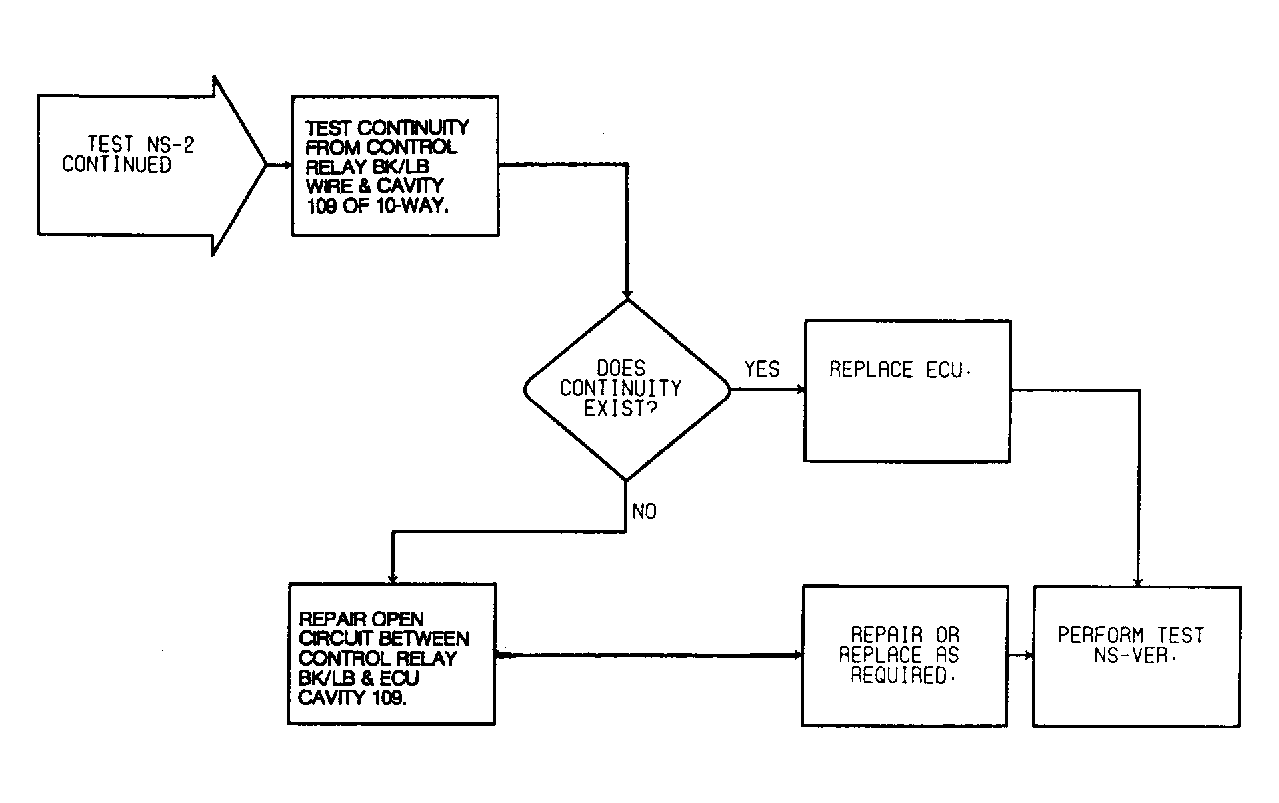

Fig 6: Flow Chart NS-2 (2.4L) (3 of 3)

G90H20013
