NS-4: Checking Control Relay Circuit

Fig 1: Circuit Diagram NS-4 (2.4L)

G90H19981

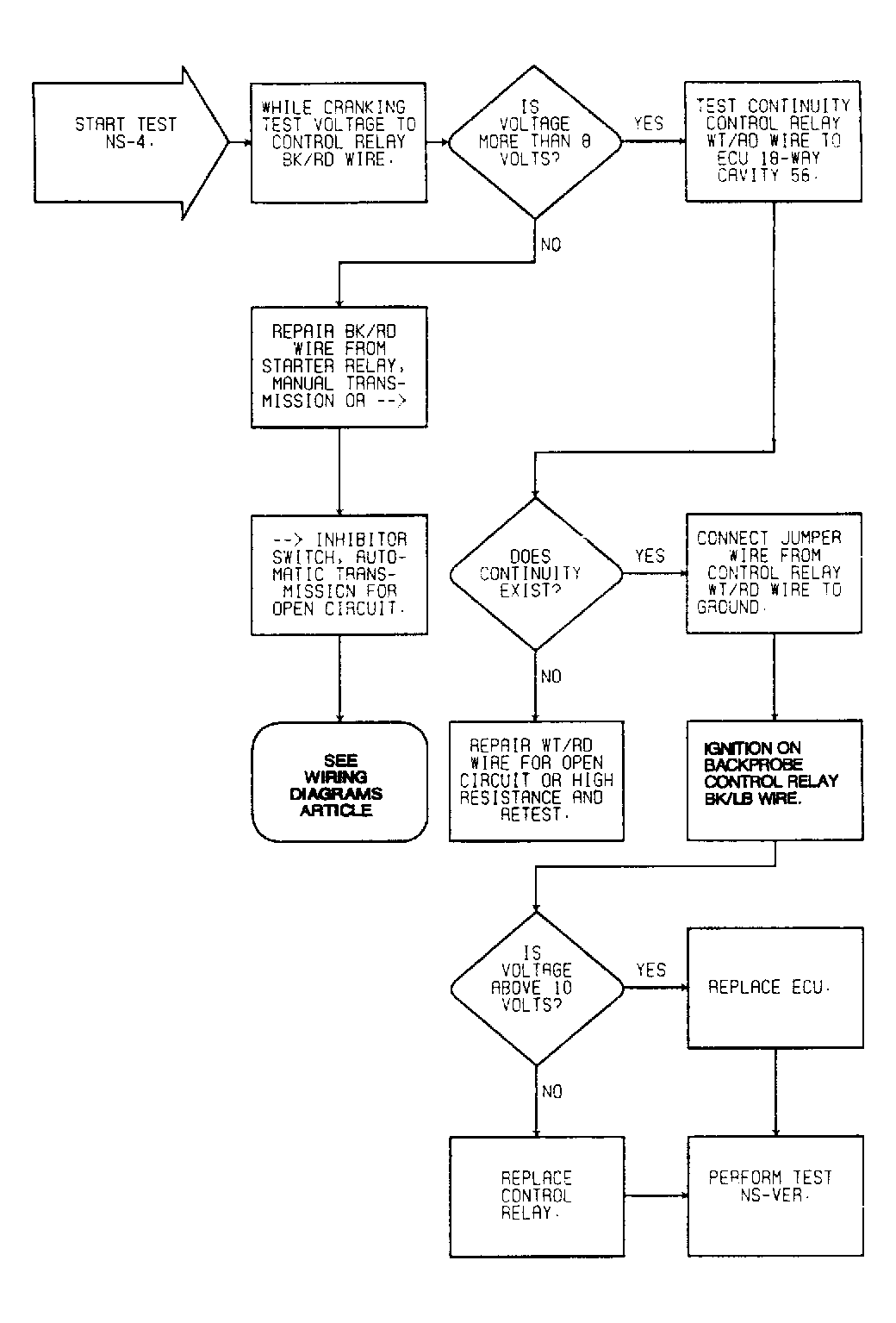

Fig 2: Flow Chart NS-4 (2.4L)

G90A20016
