Home >> Mitsubishi >> 1990 >> Van LS >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Control Units

Control Units

CONTROL UNITS LOCATION

Component Location

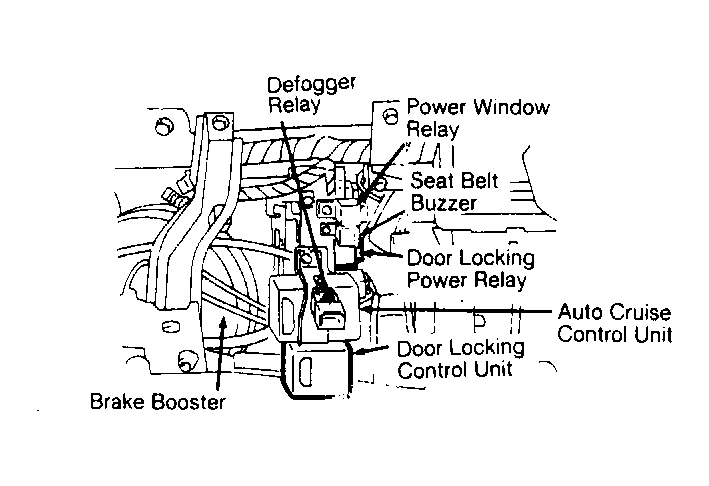

Automatic Cruise Control Unit On bracket, behind center of dash. See Figure .
Door Locking Control Unit On bracket, behind center of dash. See Figure .

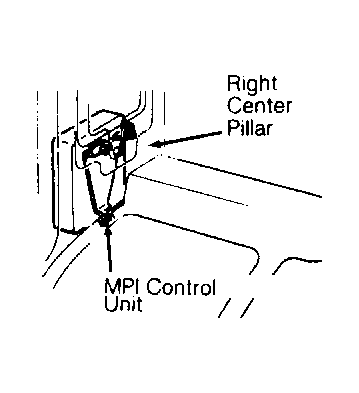

MPI Control Unit In right center pillar, behind trim panel. See Figure .
