Engine Controls - Tests W/Codes
>>
Component Locations
>>
Component Locations
Component Locations

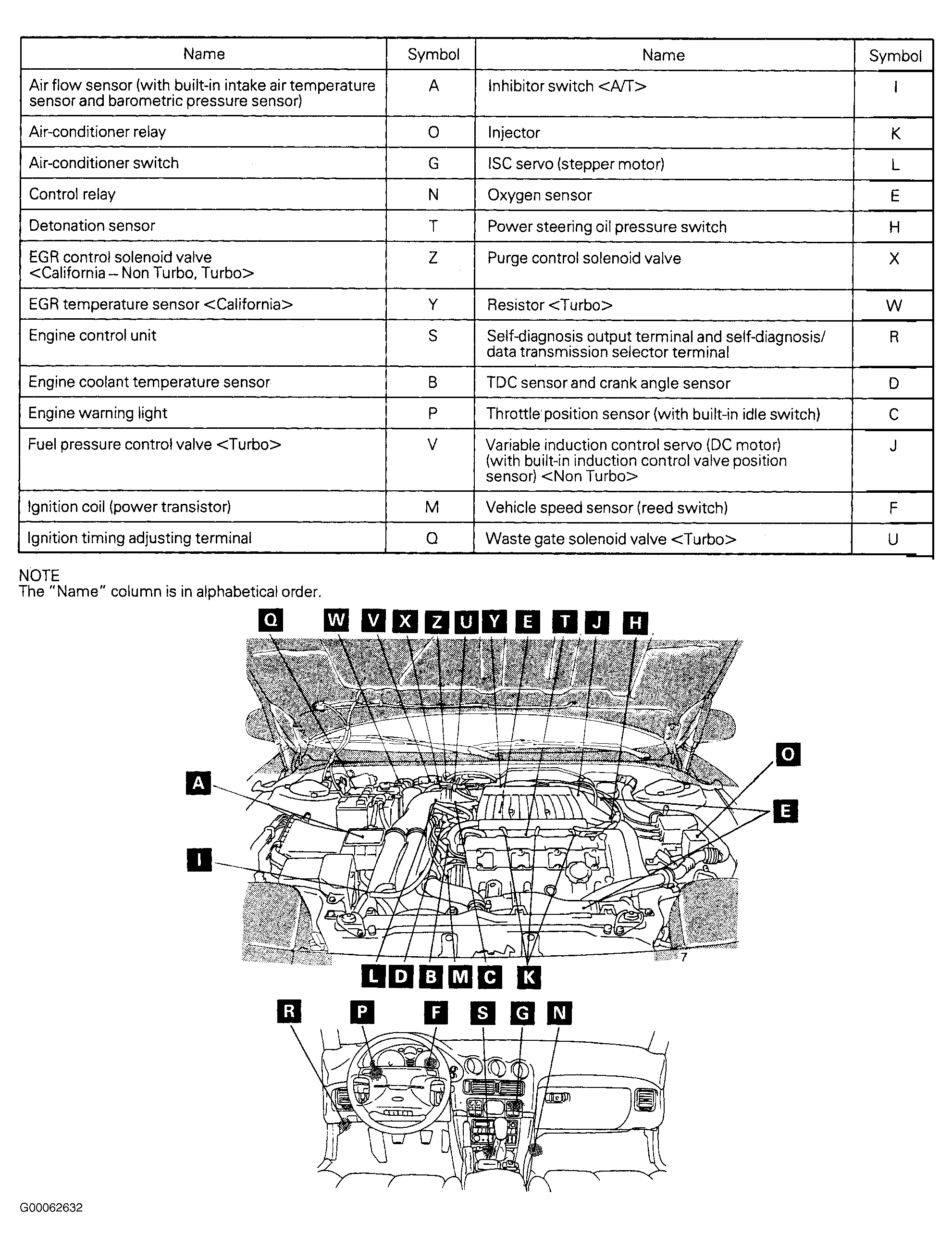

Fig 1: On-Vehicle Inspection Of MPI Components (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

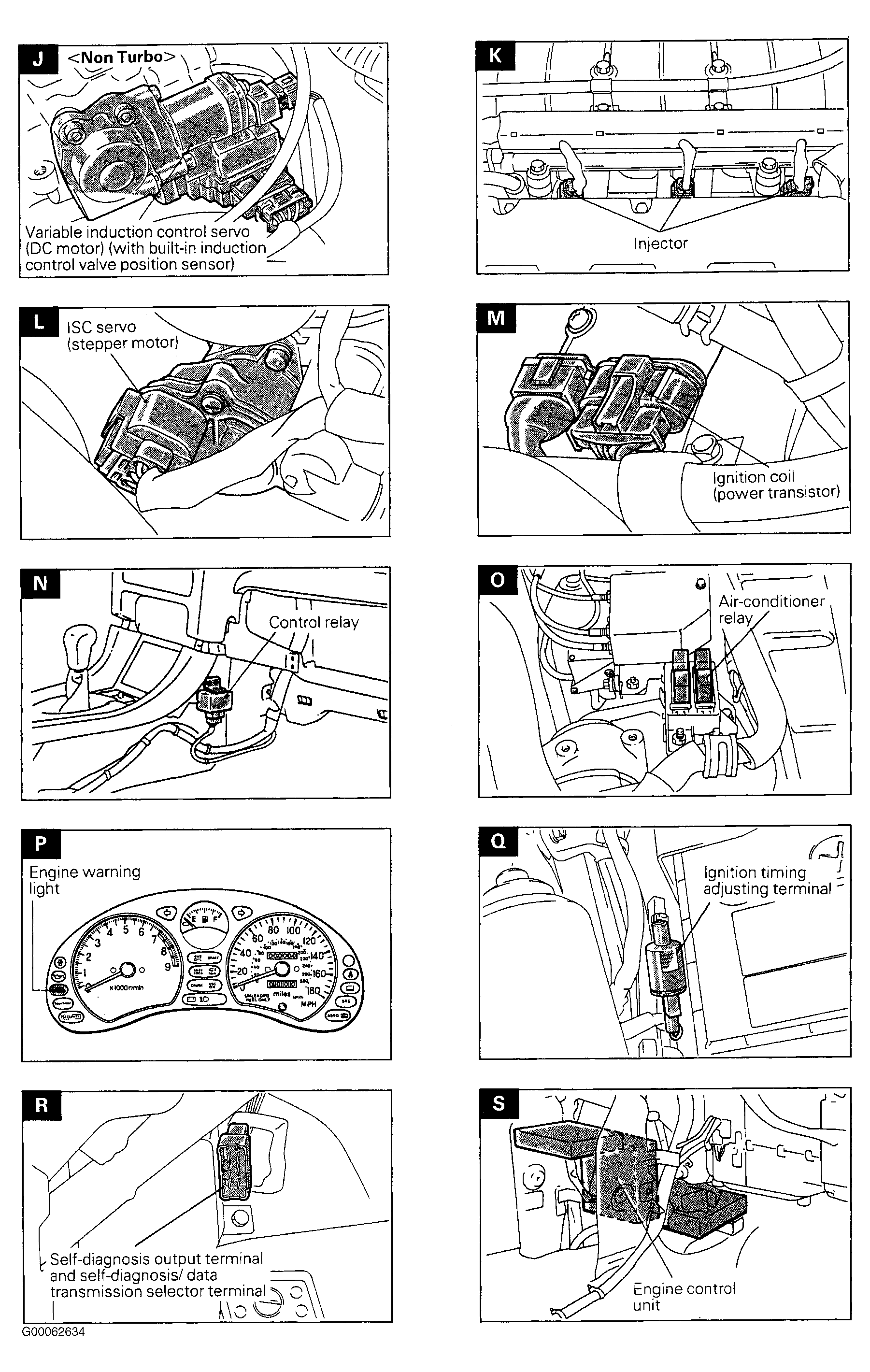

Fig 2: On-Vehicle Inspection Of MPI Components - A-I (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

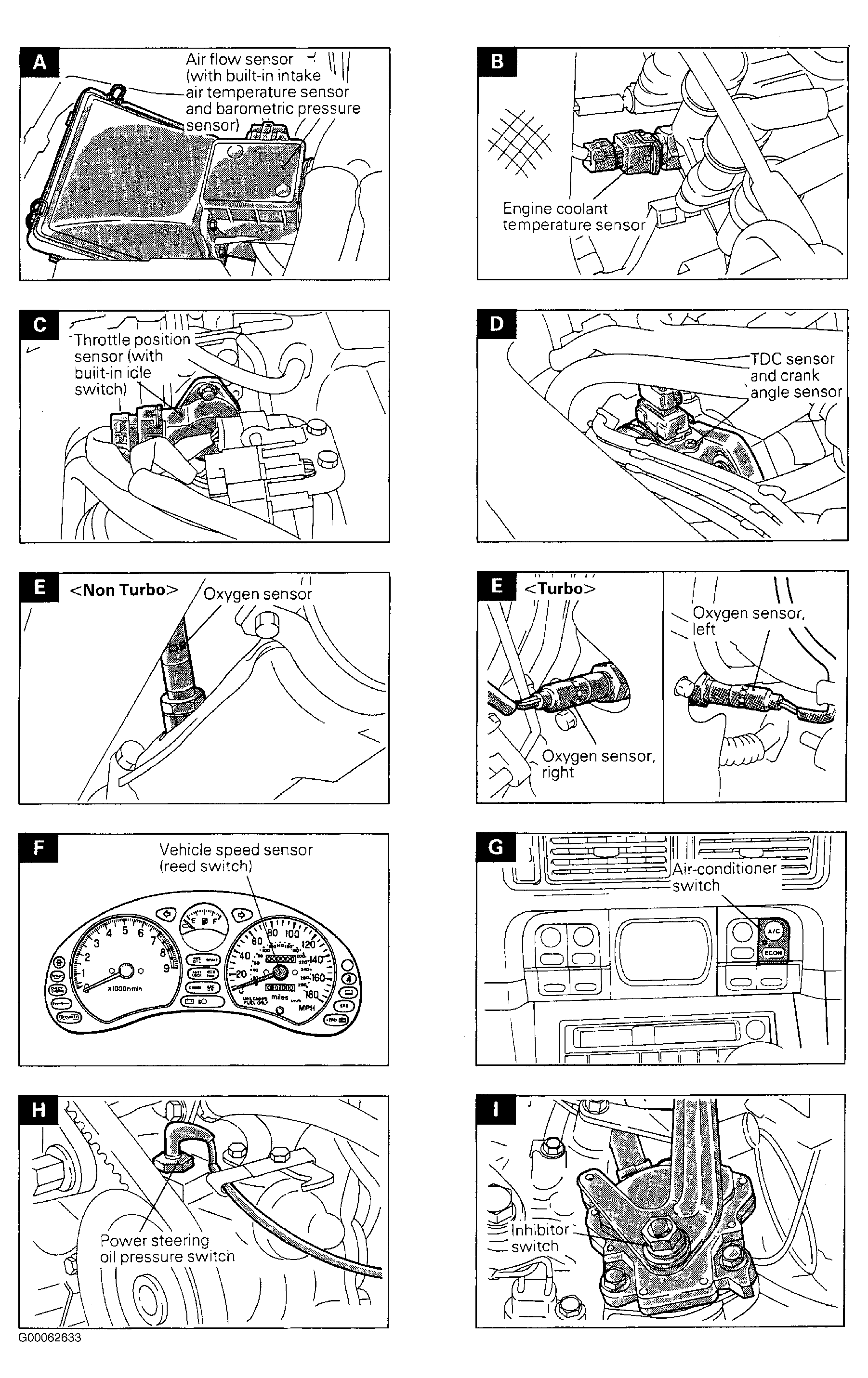

Fig 3: On-Vehicle Inspection Of MPI Components - J-S (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

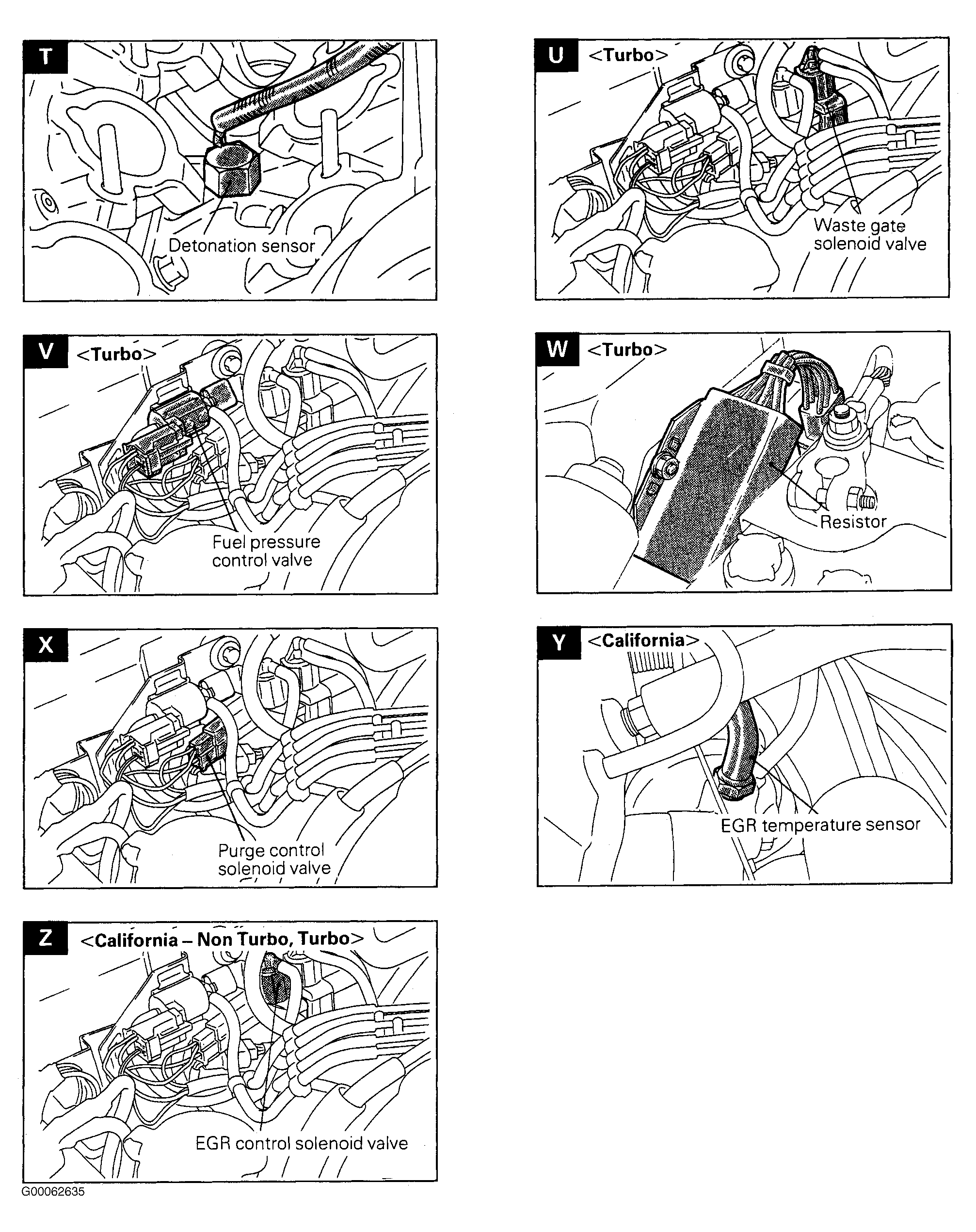

Fig 4: On-Vehicle Inspection Of MPI Components - T-Z (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
