Power Window Relay

Remove the power window relay from the relay box to test. See Fig 1 .

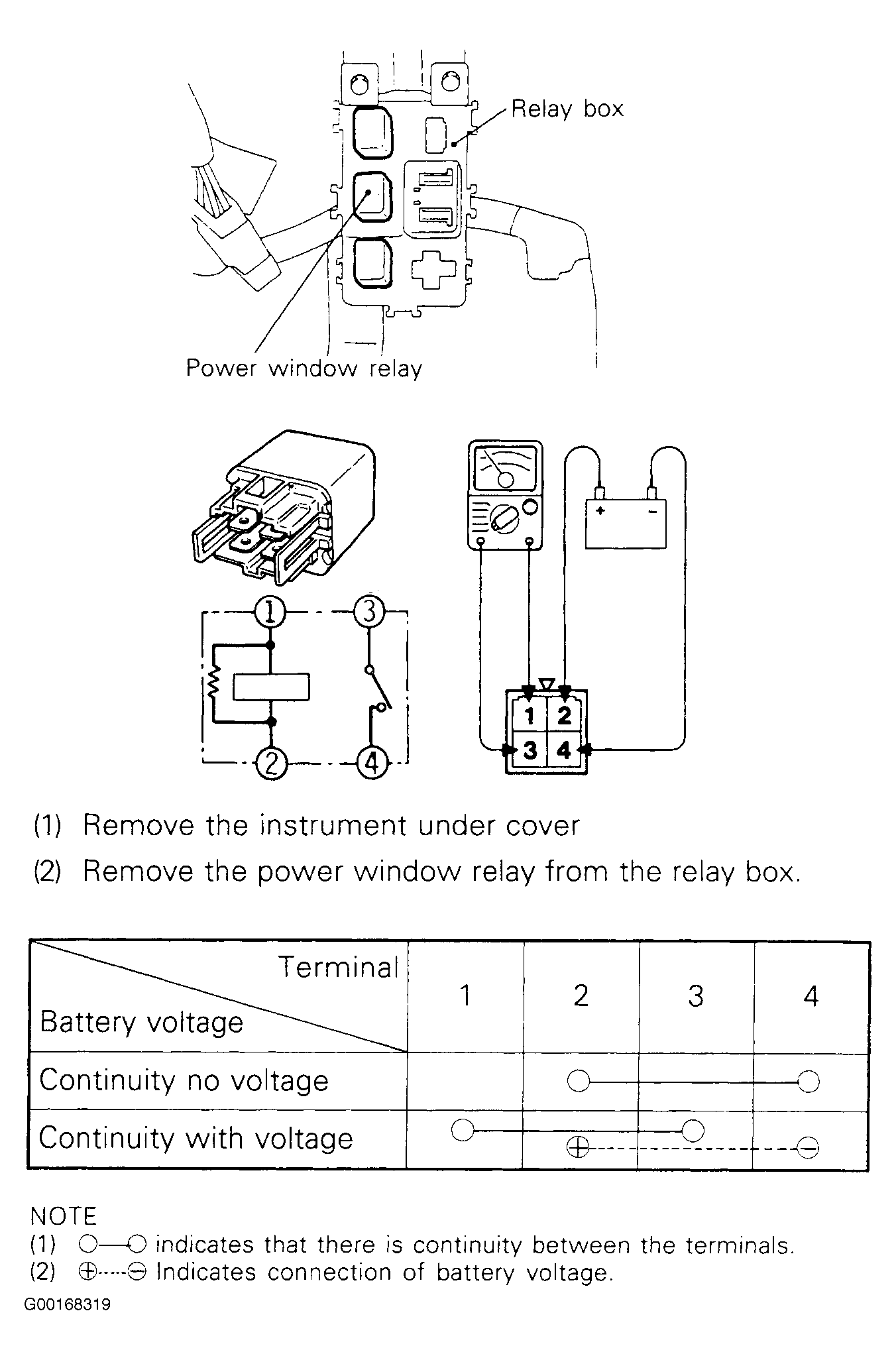

Fig 1: Inspecting Power Window Relay

G00168319

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
