Home >> Mitsubishi >> 1992 >> Expo Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Component Testing >> Power Window Sub Switch

Power Window Sub Switch

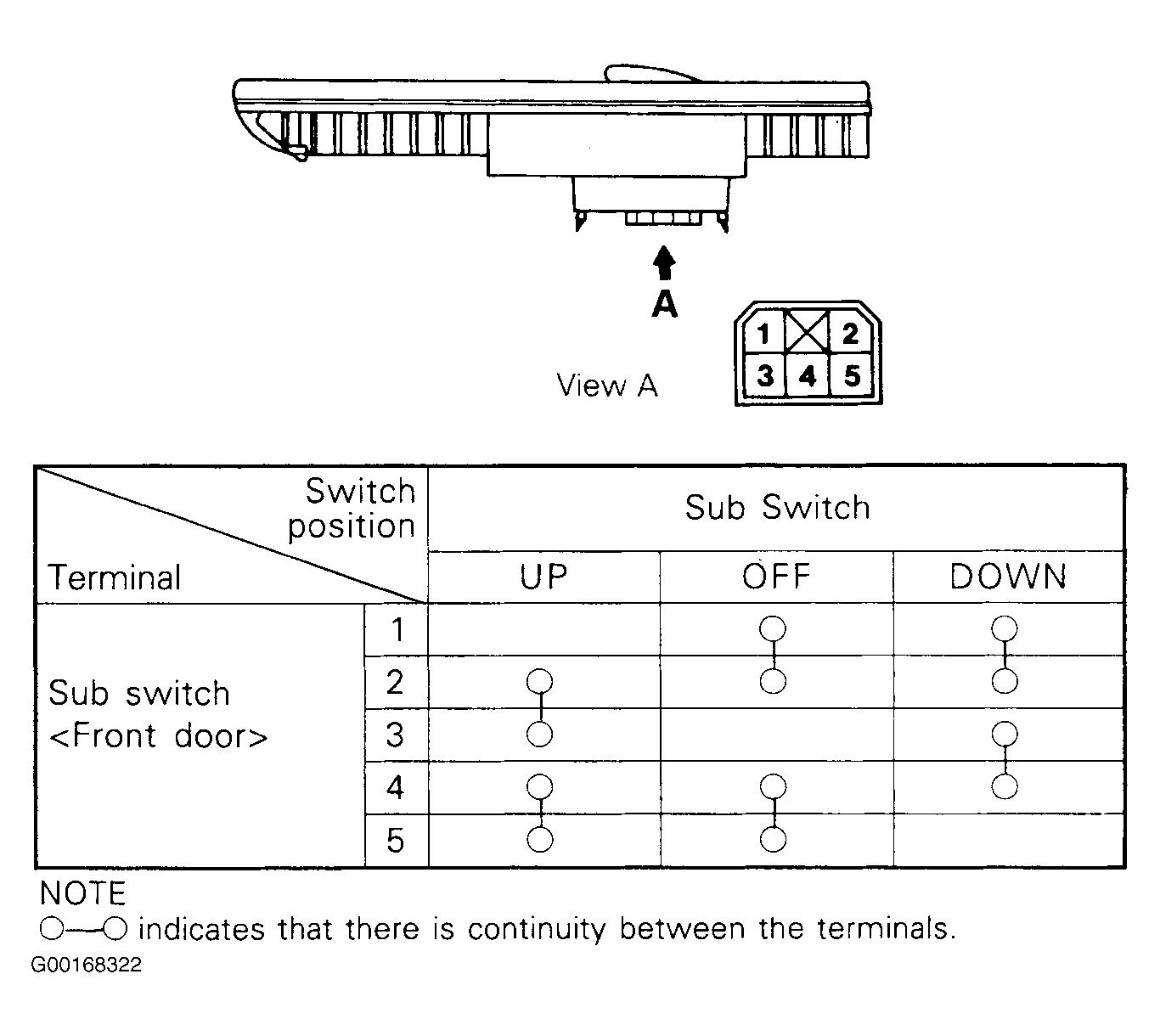

Fig 1: Testing Power Window Sub Switch (Front Door)
G00168322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

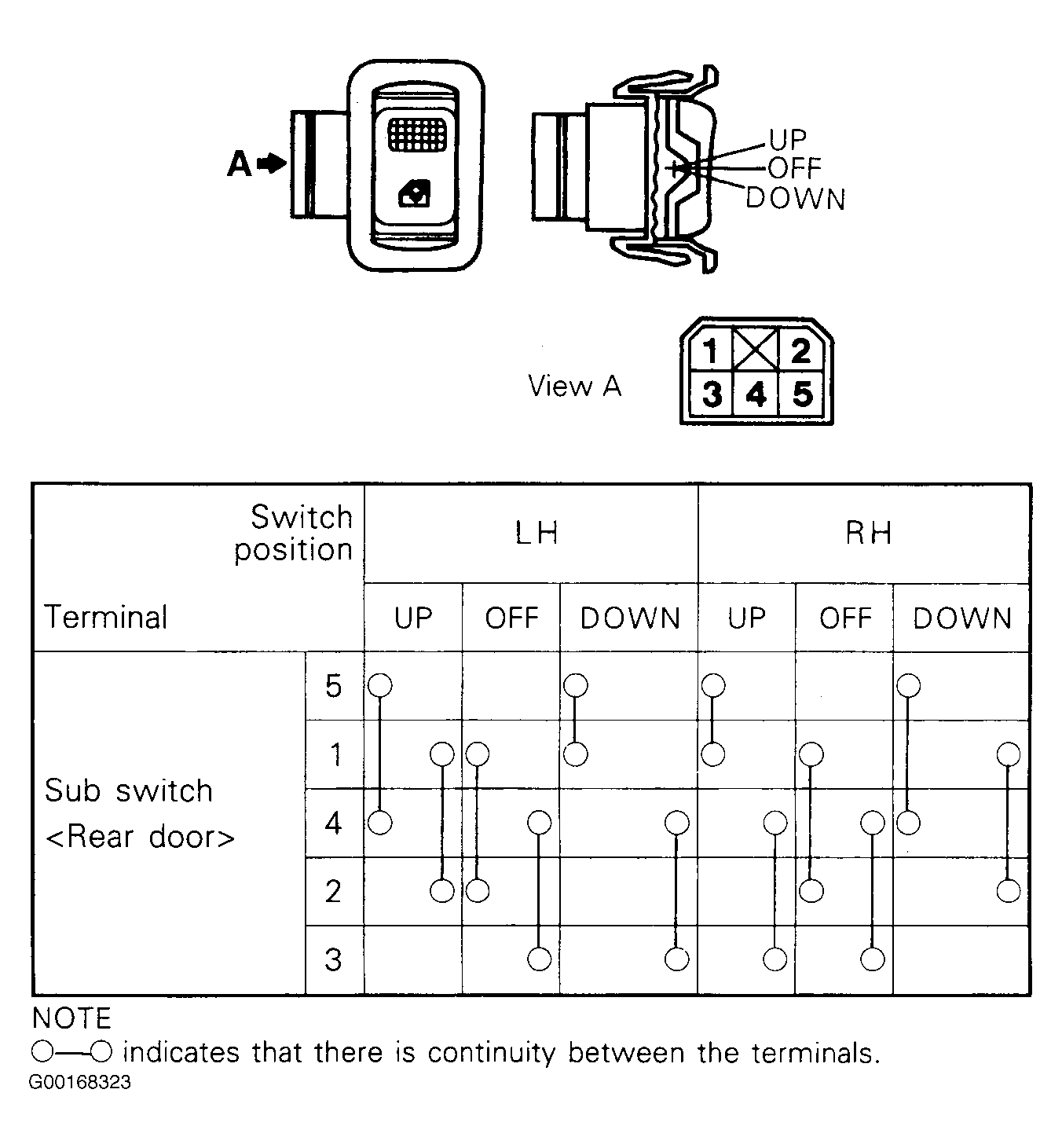

Fig 2: Testing Power Window Sub Switch (Rear Door)
G00168323Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
