Dr-2A: Code 11, Testing Oxygen Sensor

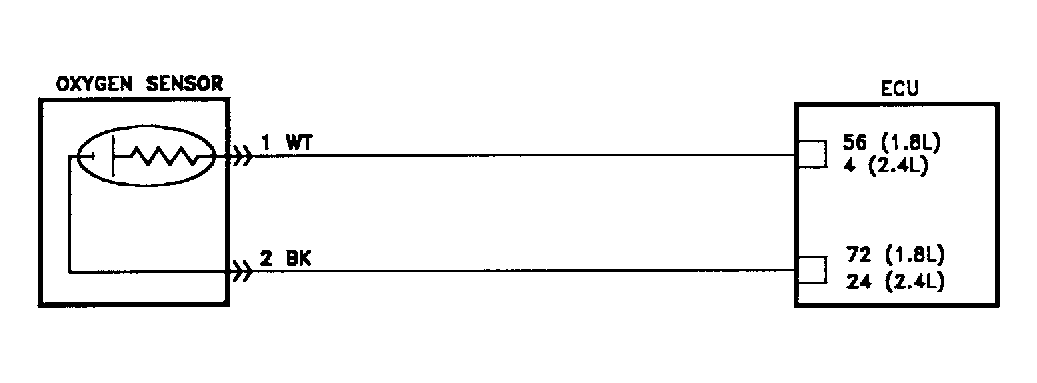

Fig 1: Test DR-2A Schematic - Code 11 Testing Oxygen Sensor

G92H25988

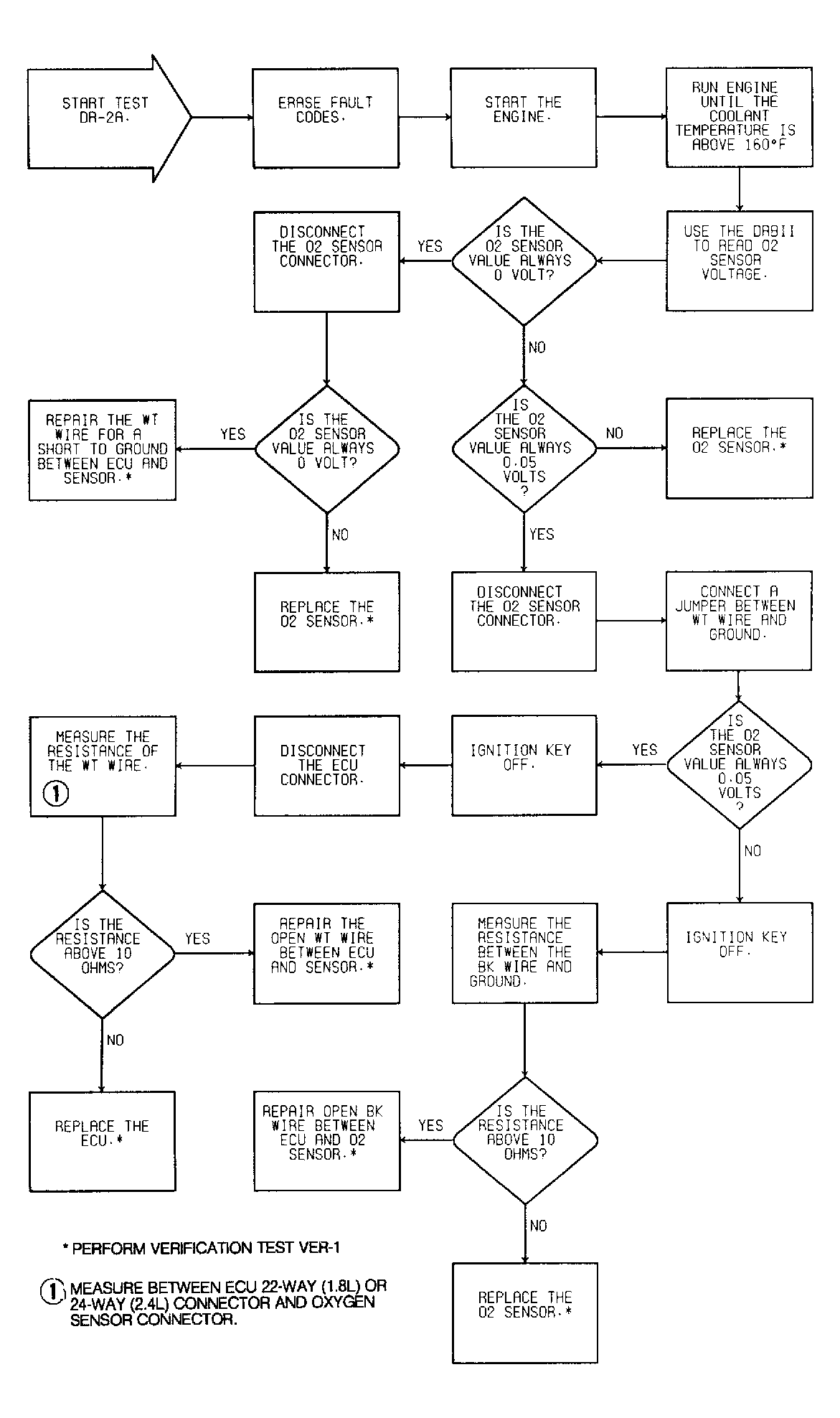

Fig 2: Test DR-2A Flow Chart - Code 11 Testing Oxygen Sensor

G92I25989
