Dr-9A: Code 24, Testing Vehicle Speed Sensor

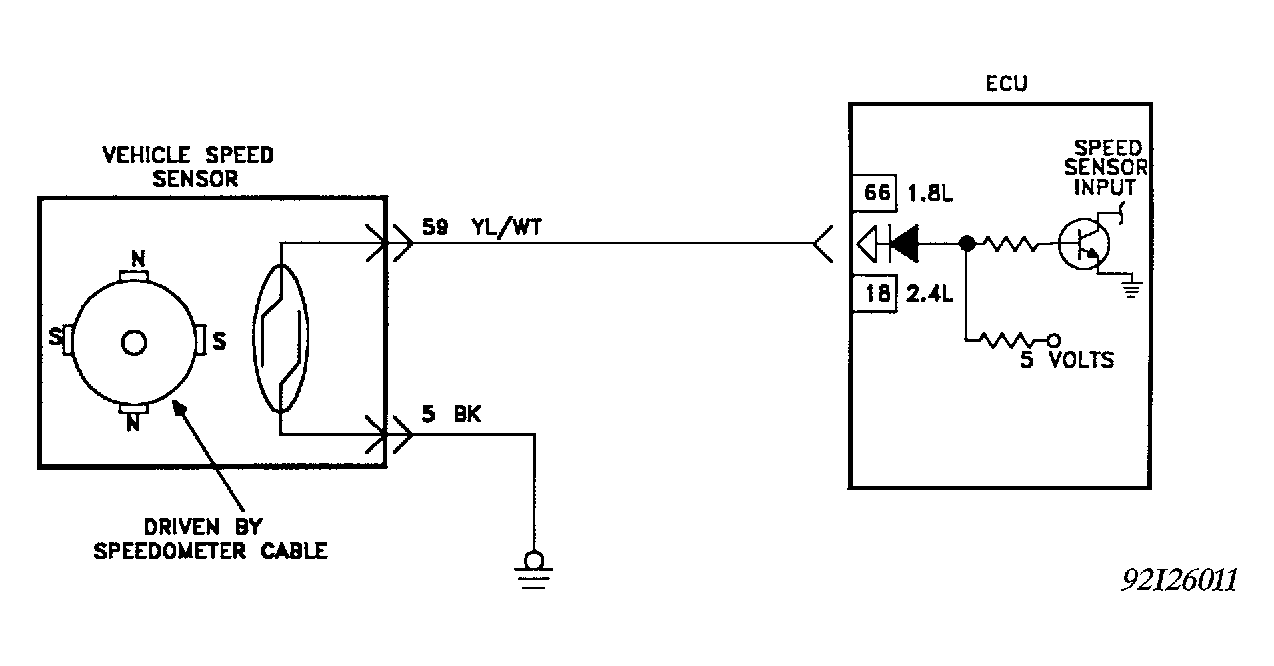

Fig 1: Test DR-9A Schematic - Code 24 Testing Vehicle Speed Sensor

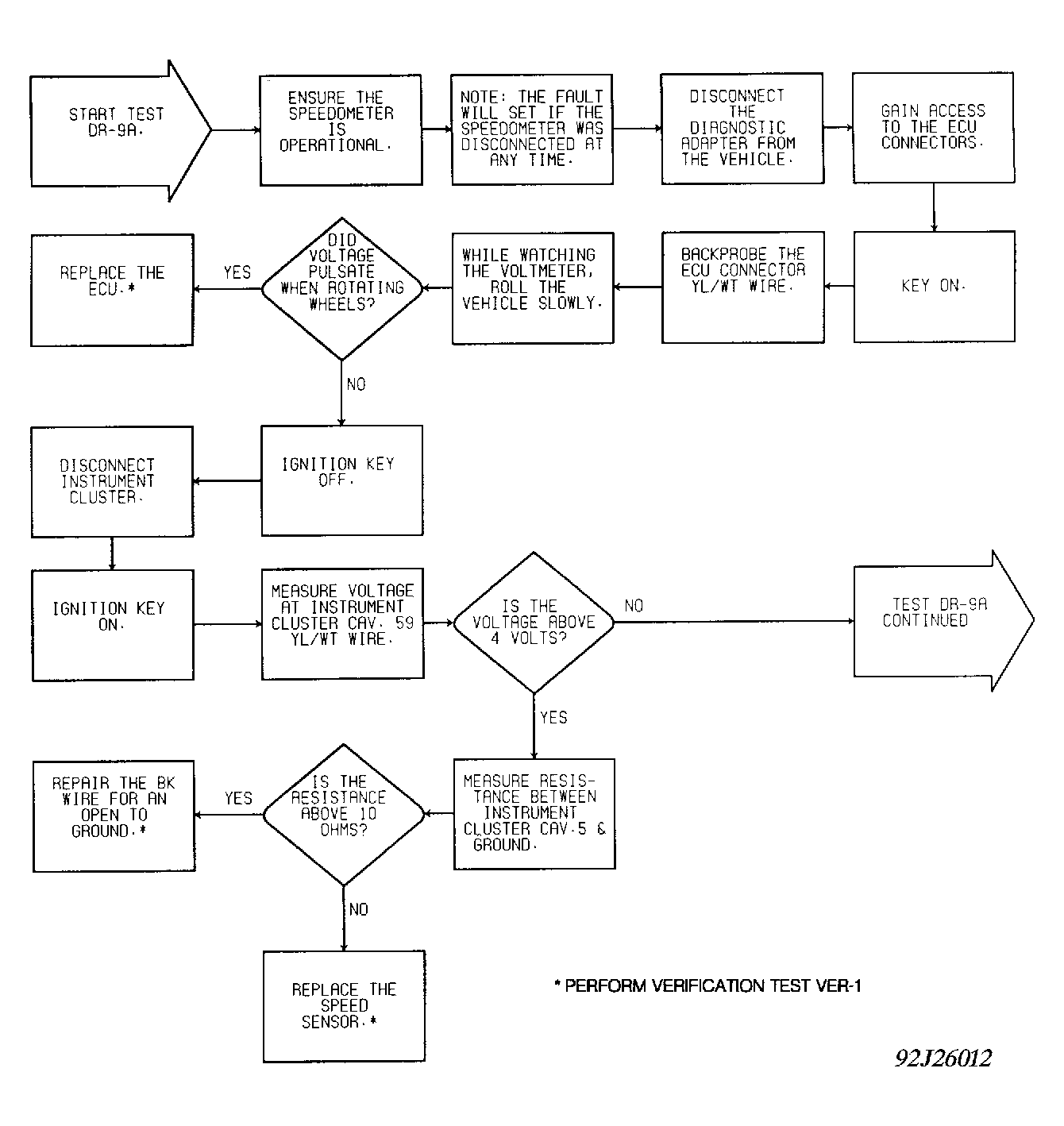

Fig 2: Test DR-9A Flow Chart - Code 24 (1 Of 2) Testing Vehicle Speed Sensor

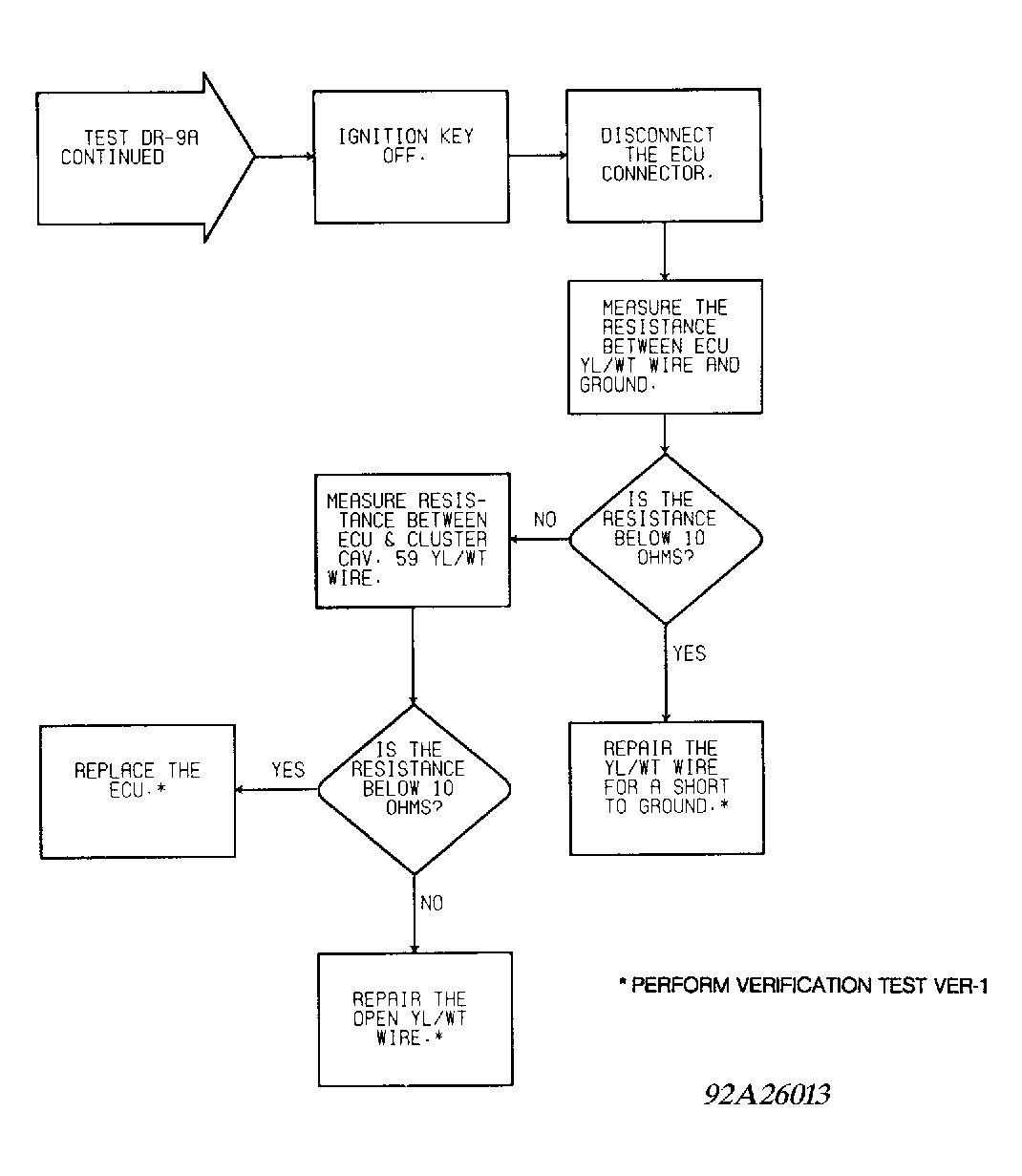

Fig 3: Test DR-9A Flow Chart - Code 24 (2 Of 2) Testing Vehicle Speed Sensor
