NS-2A: Checking Fuel System
NS-2A: Checking Fuel System

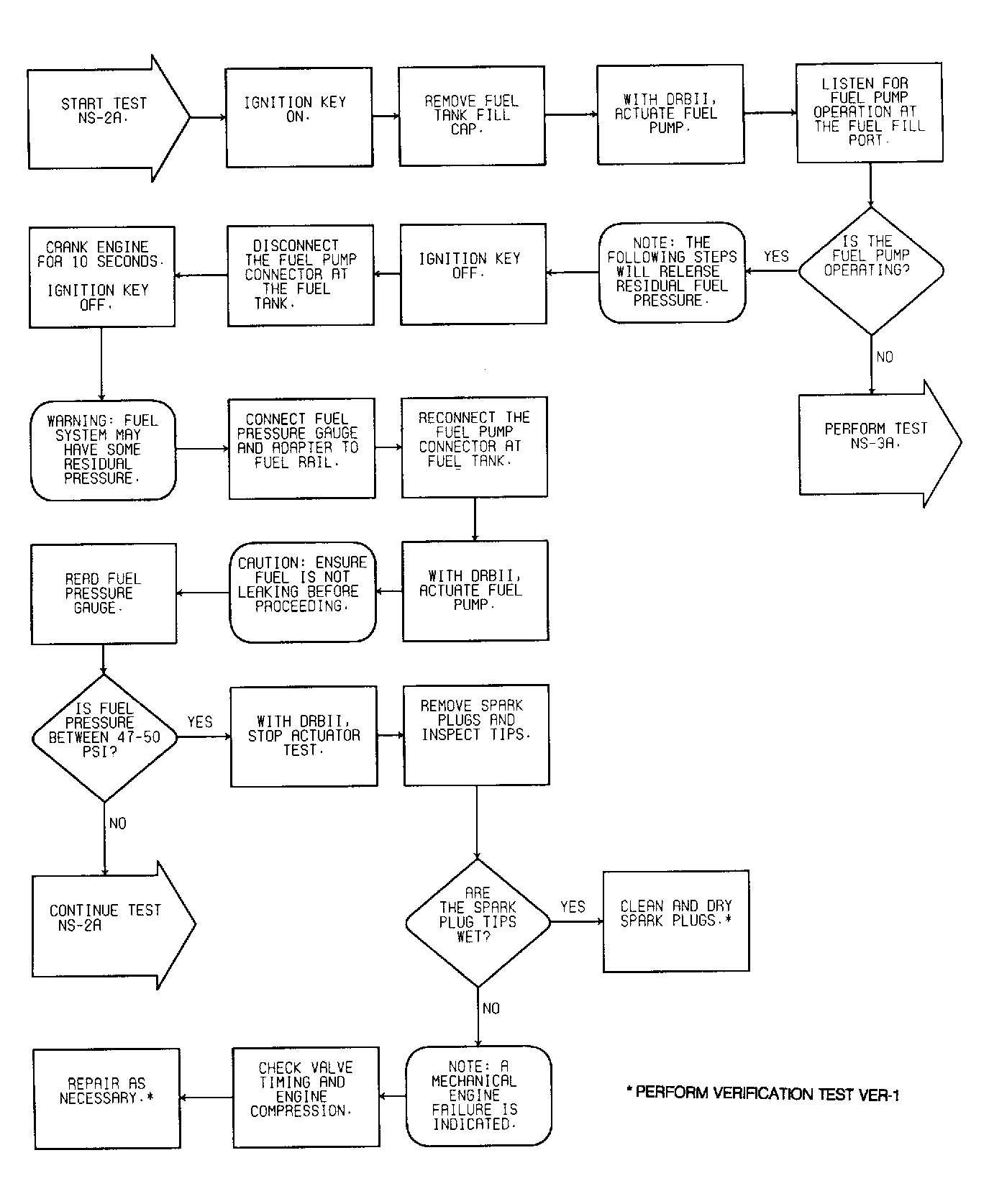

Fig 1: Test NS-2A Flow Chart (1 Of 2) Checking Fuel System

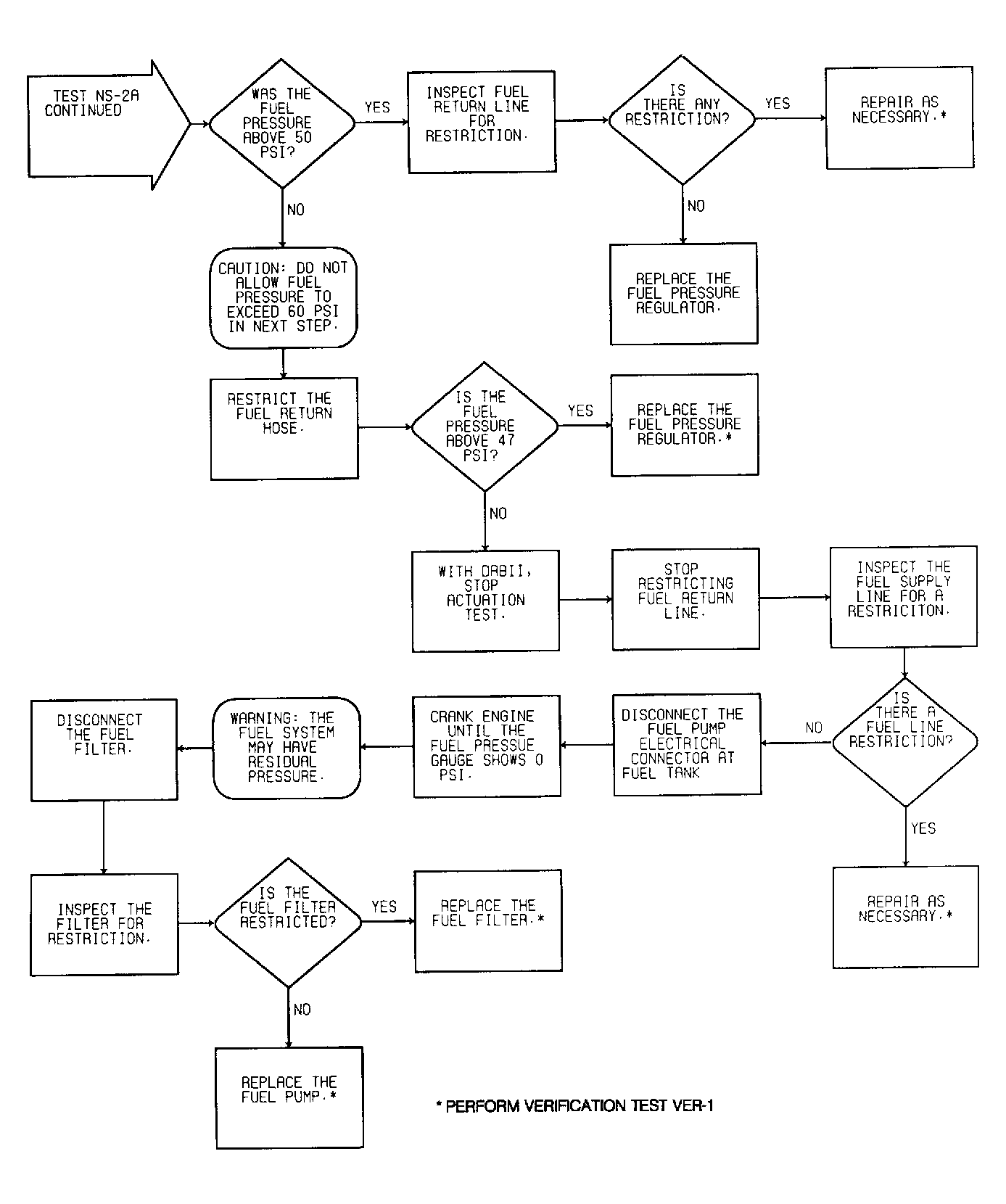

Fig 2: Test NS-2A Flow Chart (2 Of 2) Checking Fuel System
