Power Window Switch Test

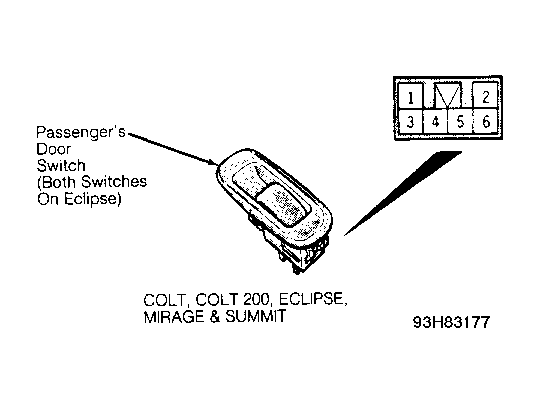

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY CHART. See Fig 1 . Replace appropriate switch as necessary if switch continuity is not as specified.
MASTER WINDOW SWITCH CONTINUITY CHART
| Switch Position (1) | Check Continuity Between | |||
|---|---|---|---|---|
| Normal Position | ||||
| Left Front OFF | Pins 2, 3 & 6 | |||
| Left Front UP | Pins 2 & 3; Pins 5 & 6 | |||
| Left Front DOWN | Pins 2 & 5; Pins 3 & 6 | |||
| Right Front OFF | Pins 1, 3 & 4 | |||
| Right Front UP | Pins 1 & 3; Pins 4 & 5 | |||
| Right DOWN | Pins 1 & 5; Pins 3 & 4 | |||
| Lock Position | ||||
| Left OFF | Pins 2, 3 & 6 | |||
| Left UP | Pins 2 & 3; Pins 5 & 6 | |||
| Left DOWN | Pins 2 & 5; Pins 3 & 6 | |||
| Right OFF | Pins 1 & 4 | |||
| Right UP | Pins 4 & 5 | |||
| Right DOWN | Pins 1 & 5 | |||
|
||||
PASSENGER SIDE WINDOW SWITCH CONTINUITY CHART
| Switch Position | Check Continuity Between |
|---|---|
| OFF | Pins 2 & 4; Pins 3 & 5 |
| UP | Pins 2 & 4; Pins 5 & 6 |
| DOWN | Pins 3 & 5; Pins 4 & 6 |
