Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Behind right rear trim panel. |
| A/C Control Unit | Behind right side of dash, above evaporator case. See Figure. |
| Anti-Theft Alarm/Door Lock Control Unit | Behind right side of dash, above kick panel. See Figure. |
| A/T Control Unit | Behind center console. See Figure. |
| Automatic Seat Belt Control Unit | On left door pillar, behind trim panel. |
| Cruise Control Unit | Behind left side of dash. |

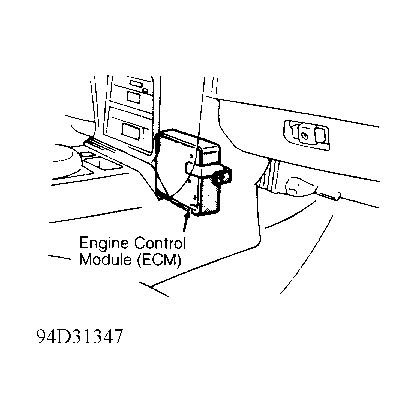

| Engine Control Module (ECM) | Behind center console. See Figure. |
| Injector Control Unit | Behind right front of center console. |
| Theft Alarm Control Unit | Behind right kick panel. |
