Continuity Check

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Check continuity between reed switch terminals no. 1 and 2. SeeFig 1 .
  2. Ensure continuity pulses on and off 4 times per revolution of speedometer shaft connection. If continuity is not as specified, replace reed switch.

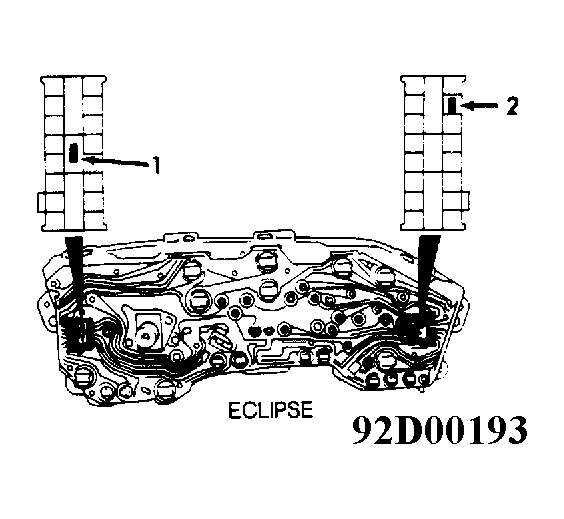

Fig 1: Reed Switch Test Terminal ID
G92D00193Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
