Using Scan Tester

  1. Refer to manufacturer's operation manual for instructions in use of scan tester. Before entering on-board diagnostics, see SERVICE PRECAUTIONS  . Turn ignition switch to OFF position. Locate Data Link Connector (DLC), next to fuse block. Connect power source terminal of scan tester to cigarette lighter socket.

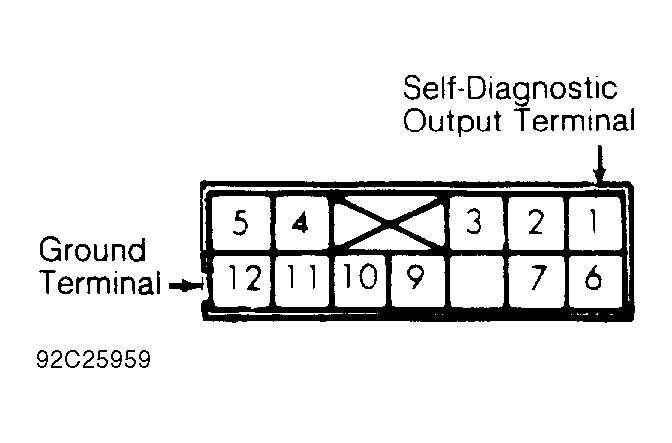

  2. Connect scan tester to DLC. See Figure . Turn ignition switch to ON position. Read and record scan tester self-diagnosis output. Perform necessary repair(s). See FAULT CODES  .
