Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | On left side of luggage compartment. See Figure . |
| A/C Compressor Control Unit | Under right side of dash, on front of evaporator case. |
| Active ECS Control Unit | On left side of luggage compartment, behind cover. |
| Auto. Cruise Control Unit | Behind left side of dash. See Figure . |
| Automatic Seat Belt Control Unit | Under center console. |
| Door Lock Control Unit (SOHC) | Behind left side of dash. See Figure . |
| ECS Control Unit | On right side of trunk. See Figure . |
| Electronic-Controlled Transaxle (ECT) Control Unit | Behind center console. See Figure . |
| Elect. Power Steering Control Unit | Behind center console. |

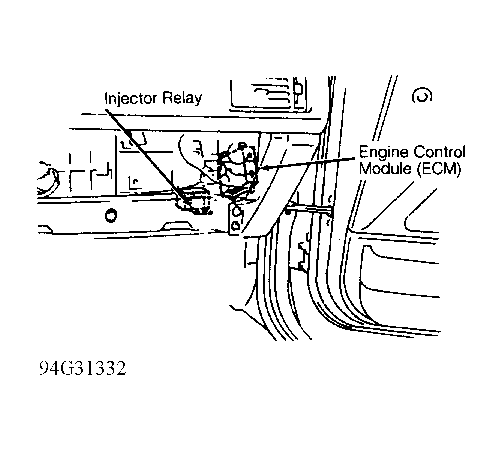

| Engine Control Module (ECM) | Behind right side of dash. See Figure . |
| ETACS Control Unit | Behind left side of dash. See Figure . |
| Motor Antenna Control Unit | Behind left side of luggage compartment. See Figure . |
| Power Steering Control Unit | Below center console. See Figure . |
