Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

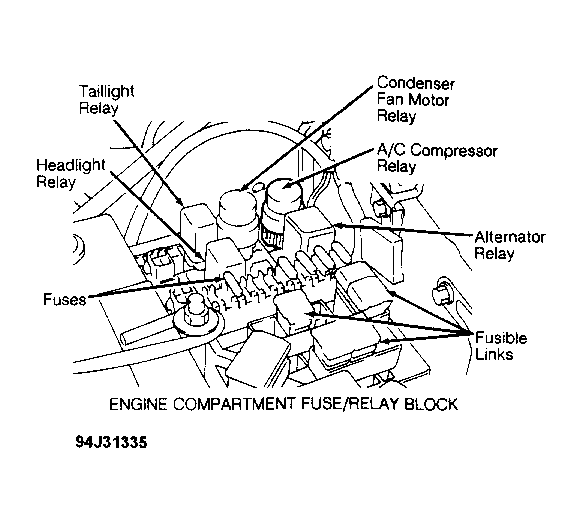

| Engine Compartment Fuse/Relay Block | On left inner fender panel, behind battery. See Figure . |

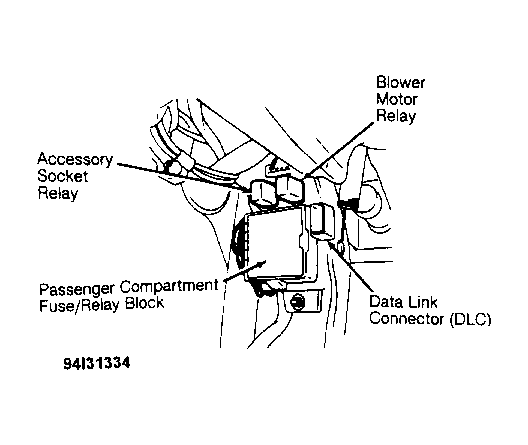

| Passenger Compartment Fuse/Relay Block | Behind left side of dash. See Figure . |
| Fusible Links | In engine compartment fuse/relay block. See Figure . |
| Power Seat Relay Block | Under driver's seat. |
