Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Mounted on top of right rear wheelwell, under metal plate. |
| Air Bag Diagnostic Control Unit | Behind center console. |
| A/C Control Unit | On top of evaporator case. See Figure . |
| A/T Control Unit (4-Speed) | Behind left side of dash. |
| Cruise Control Unit | Behind center console. |

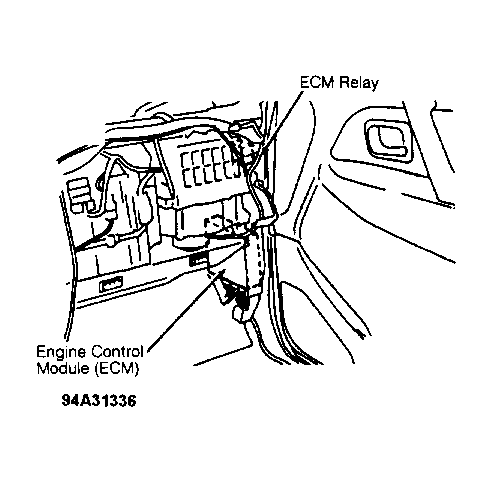

| Engine Control Module (ECM) | Behind right kick panel. See Figure . |
| Keyless Entry Control Unit | Behind right side quarterpanel. |
| Power Antenna Control Unit | Behind center console. |
| Power Door Lock Control Unit | Behind left side of dash. |
| Rear Differential Lock Control Unit | Mounted on top of rear right wheelwell, under metal plate. |
| Sun Roof Control Unit | On center of roof, behind sun roof. |
| Variable Shock Absorber Control Unit | Behind left rear wheelwell, behind quarterpanel. |
| 4WD Indicator Control Unit | Behind center of dash. |
