Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

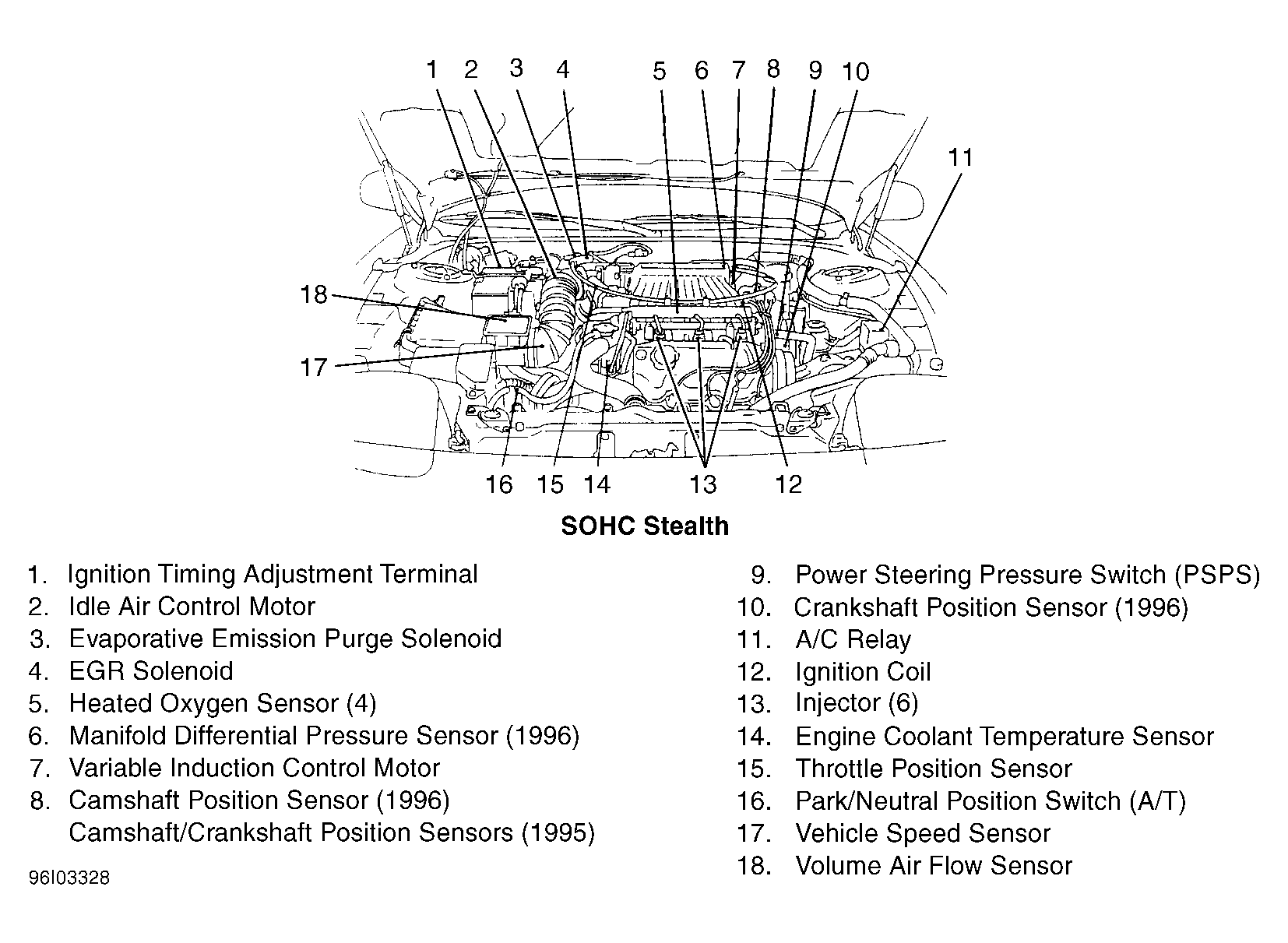

Fig 1: Engine (SOHC Stealth)
G96I03328

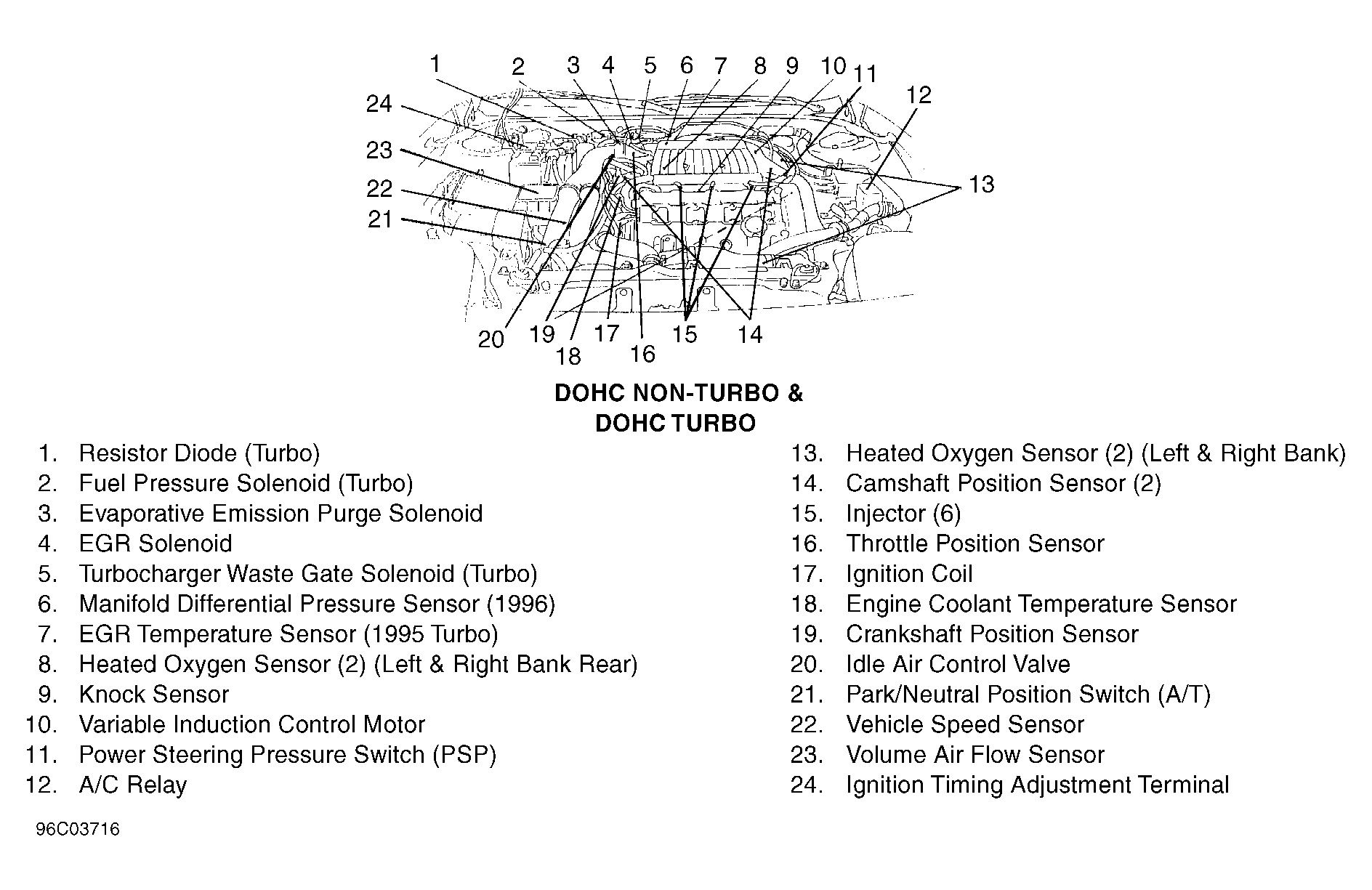

Fig 2: Engine (DOHC Non-Turbo & DOHC Turbo)
G96C03716
Fig 3: Dash
G96E03717
