Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C Compressor Lock Controller | Behind glove compartment. |
| A/C Control Unit | Behind center console. |
| ABS Control Unit | Behind right rear quarter panel. |
| Auto-Cruise Control Unit | Behind right side kick panel. |
| Daytime Running Lamp Control Unit | Left inner front fender panel. |
| Electronic Control Suspension Control Unit | On right rear of luggage compartment. |
| ELC-4 A/T Control Module (1996) | Behind center console. |

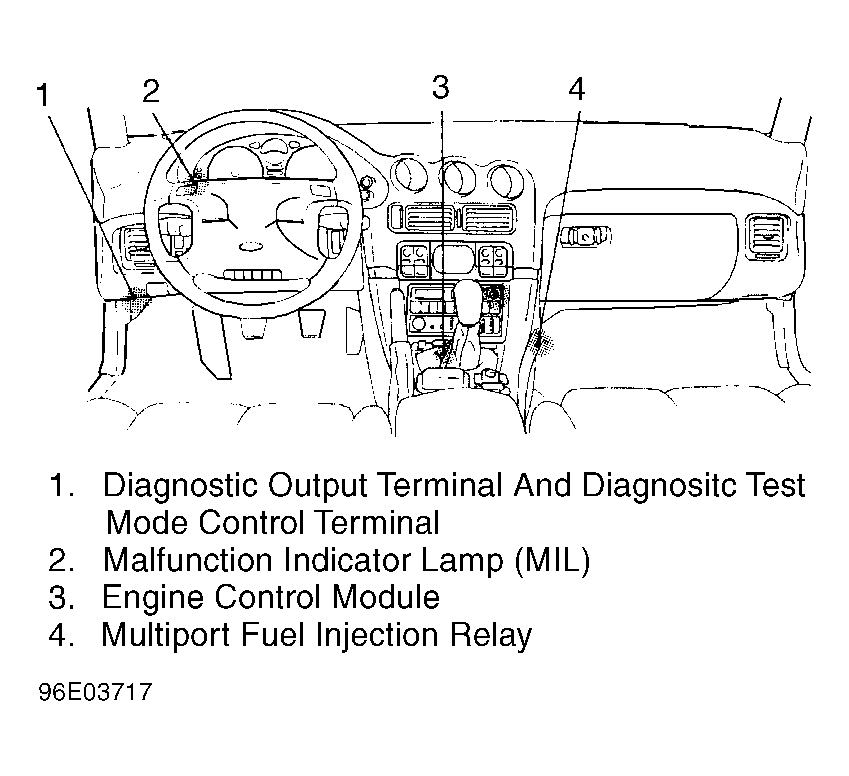

| Engine Control Module | Behind center console. See Figure . |
| ETACS Control Unit | Under left side of dash. |
| Keyless Entry Control Unit | Behind left rear quarter panel. |
| Lamp Automatic Shut-Off Unit | Behind left rear quarter panel. |
| Motor Antenna Control Unit | Behind left rear quarter panel. |
| SRS Diagnostic Unit | Under center console, between front seats. |
| Sunroof Control Unit | On rear underside of ceiling. |
| Transaxle Control Module (1995) | Behind center of dash. |
