Power Window Switch
Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY TABLE. See Fig 1 or Fig 2 . Replace appropriate switch as necessary if switch continuity is not as specified.

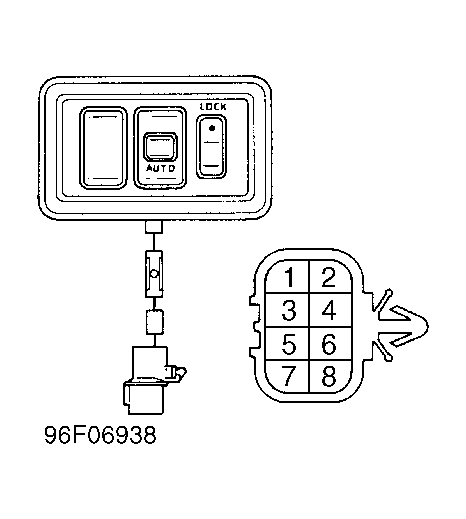

MAIN WINDOW SWITCH CONTINUITY
| Switch Position (1) | Check Continuity Between Pins No. | ||||
|---|---|---|---|---|---|
| Manual Switch (Unlocked) | |||||
| Left | |||||
| OFF | No Continuity | ||||
| UP | 6 & 7 | ||||
| DOWN | No Continuity | ||||
| Right | |||||
| OFF | 1 & 4; 2 & 4 | ||||
| UP | 1 & 6; 2 & 4 | ||||
| DOWN | 1 & 4; 2 & 6 | ||||
| Automatic Switch | |||||
| OFF | No Continuity | ||||
| DOWN HOLD | 3, 6 & 8 | ||||
| Switch (Locked) | |||||
| LOCK | No Continuity | ||||
| OFF | Pin 4 & Ground | ||||
|
|||||

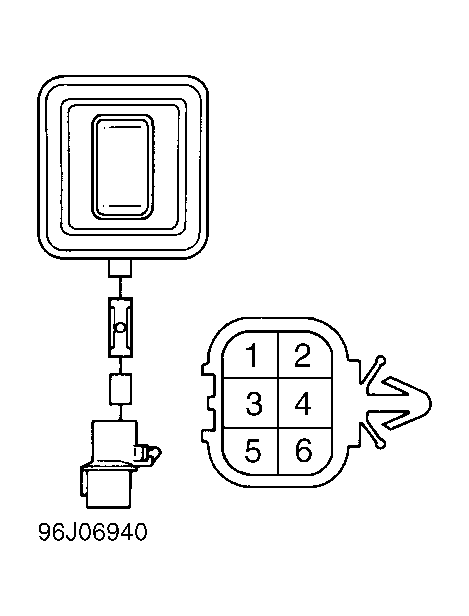

PASSENGER SIDE (SUB) WINDOW SWITCH CONTINUITY
| Switch Position | Check Continuity Between |
|---|---|
| OFF | No Continuity |
| UP | 1, 4 & 5 |
| DOWN | 2, 4 & 6 |
